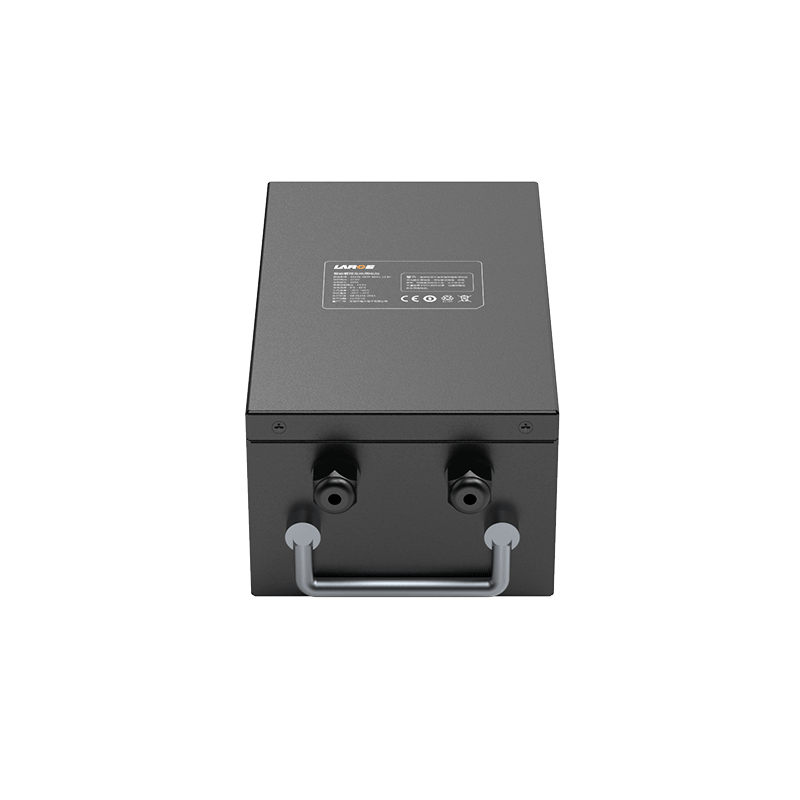

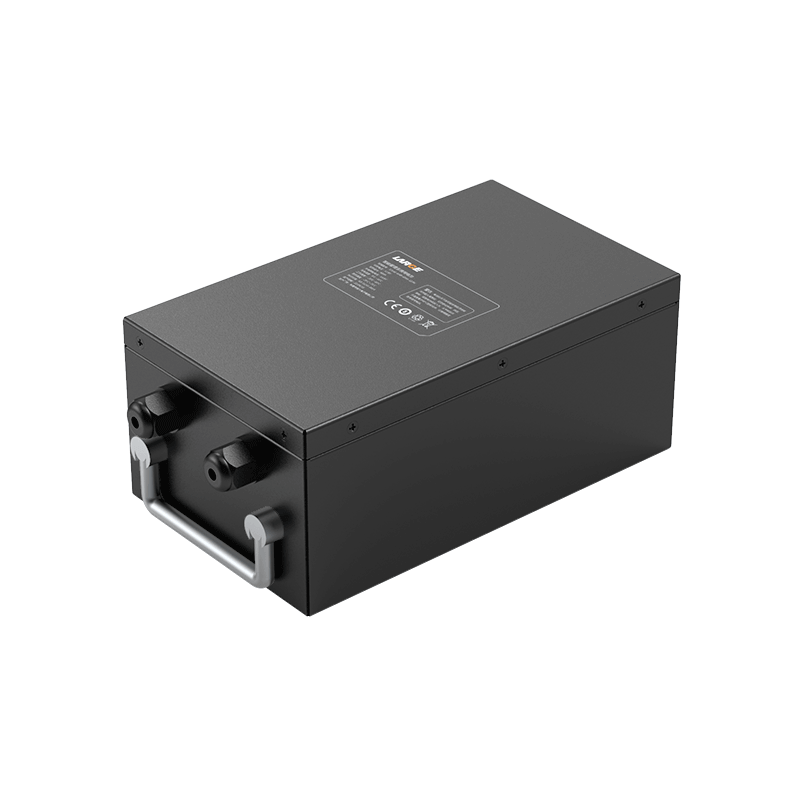

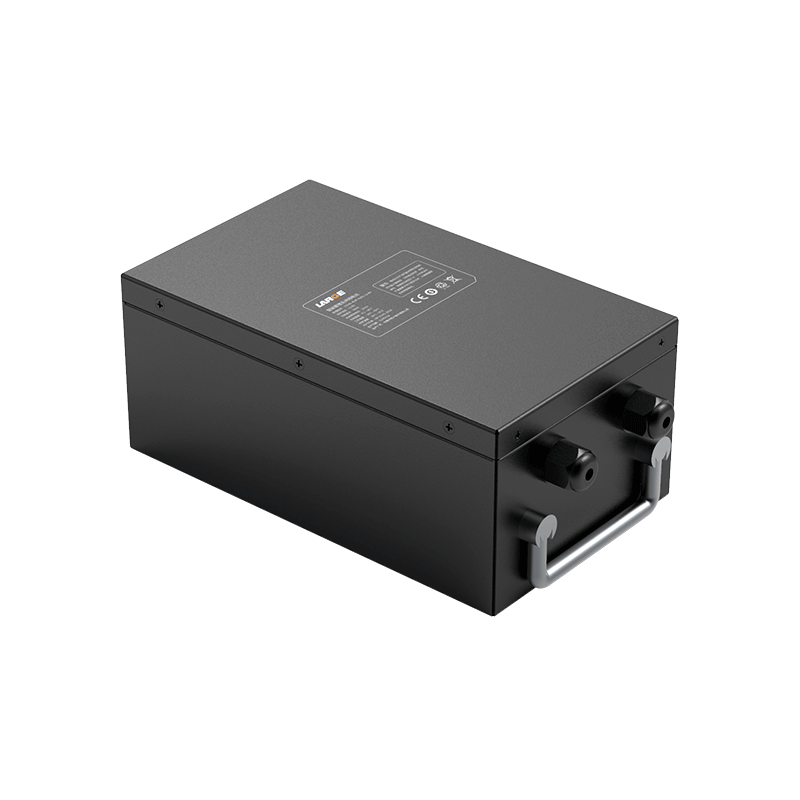

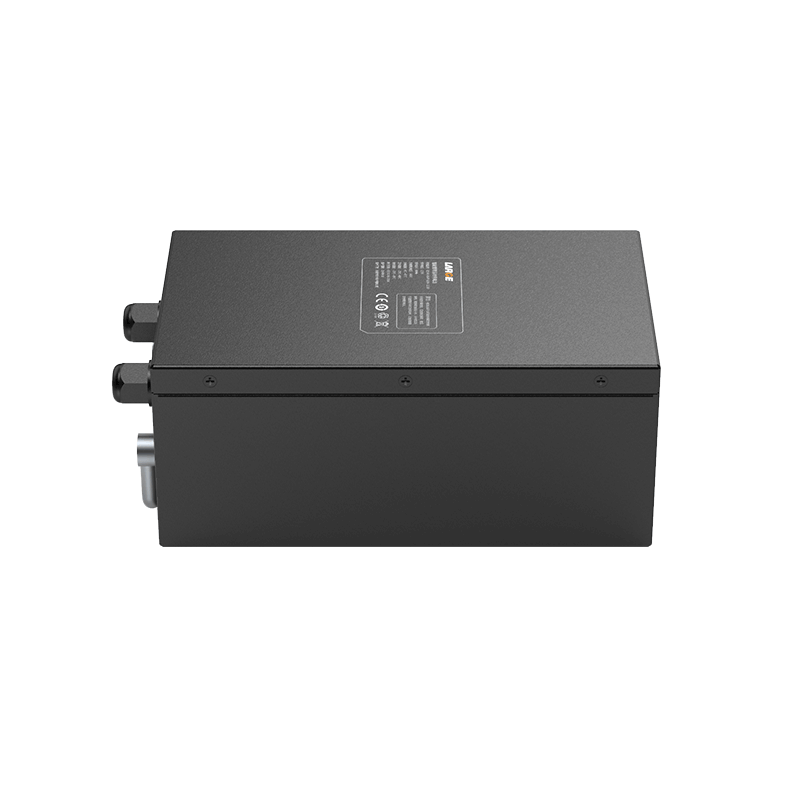

60Ah 12.8V Batteries for Intelligent Management Systems

Product number: 02DQ0338-01

Cell model: 32140-15Ah-3.2V

Battery specification: 32140-4S4P-60Ah-12.8V

Product size: 200*180*160mm

Nominal voltage: 12.8V

Nominal capacity: 60Ah

Internal resistance of finished product: ≤150mΩ

Charging voltage: 14.6V

Charging current: ≤20A

Discharge current: ≤20A

Discharge cut-off voltage: 10.0V

Battery weight: 3000g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ° C

Battery case: aluminum alloy case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: Battery for intelligent management system, industrial equipment

Product features

1.Aluminum alloy shell increases the reliability and stability of the battery;

2.The battery uses special cell stent assembly, epoxy board protection, special nickel piece connection, nice shock resistance and good impact resistant performance;

3.Connector plug output: Adopt industrial-grade aviation plug output method to increase conductive reliability;

4.Battery protection and control: Adopt special lithium battery protection chip with high stability, nice precision monitoring, accrate control,temperature protection and other functions, so as to maximize the elimination of safety risks;

5.The lithium iron phosphate battery has good safety, nice discharge performance and long cycle life.

6. The battery has long cycle life, accord with low carbon, energy saving, environmental protection value concept;
