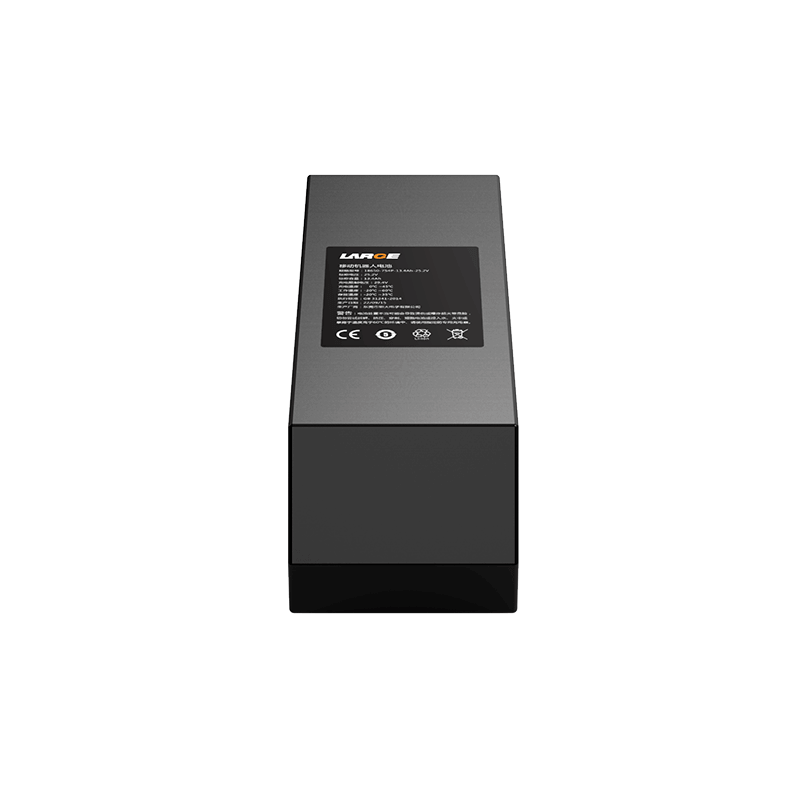

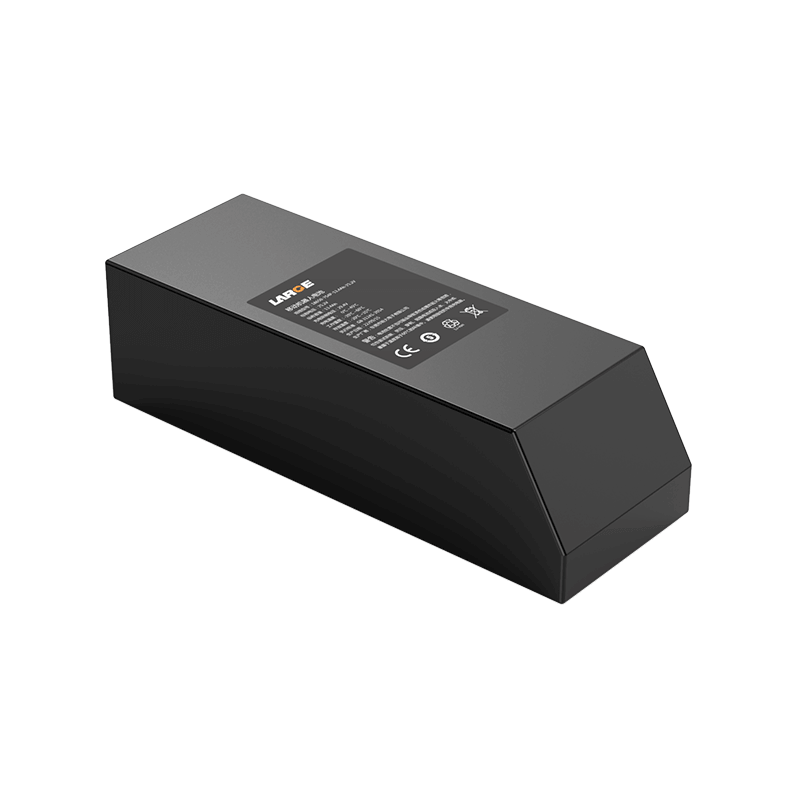

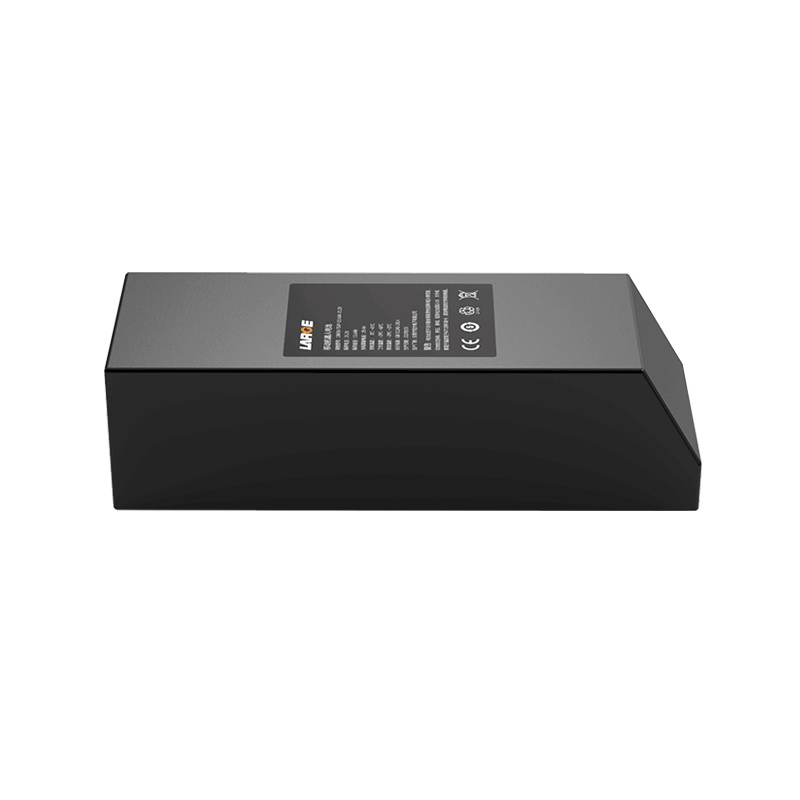

18650 13.4Ah 25.2V Mobile Robot Battery

Customization | Free Battery Solution

Product Detail

Product number: 03KQ108-01

Cell model: 18650-3350mAh-3.6V

Battery specification: 18650-7S4P-13.4Ah-25.2V

Product size: 230*75*60mm

Nominal voltage: 25.2V

Nominal capacity: 13.4Ah

Finished internal resistance: ≤300mΩ

Charging voltage: 29.4V

Charging current: ≤6.3A

Discharge current: ≤15A

Discharge cut-off voltage: 19.6V

Battery weight: 1800g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ° C

Battery package: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: mobile robot, service robot equipment and other industrial equipment


Product Feature

1.Blue PVC heat shrinkable film package is simple, reliable and easy to be installed;

2.The battery pack uses special cell stent assembly, epoxy board protection, special nickel piece connection, and has good shock resistance and impact resistant performance;

3.Battery protection and control: Adopt special lithium battery protection chip with good stability, high precision monitoring, accurate control, temperature protection and other functions, so as to eliminate the safety risks;

4.BMS communication uses the optical coupling isolation, product support 485 bus communication for customer support communication, and the communication baud rate is 9600 BPS

5.The battery has good safety, nice discharge performance and long cycle life.

6.The battery has long cycle life, accord with low carbon, energy saving, environmental protection value concept;
