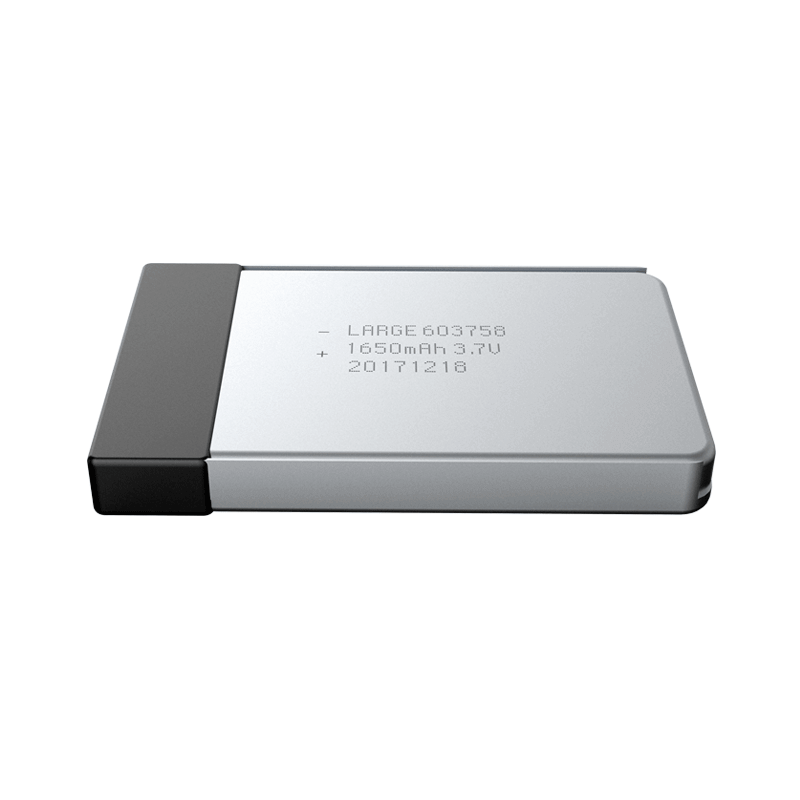

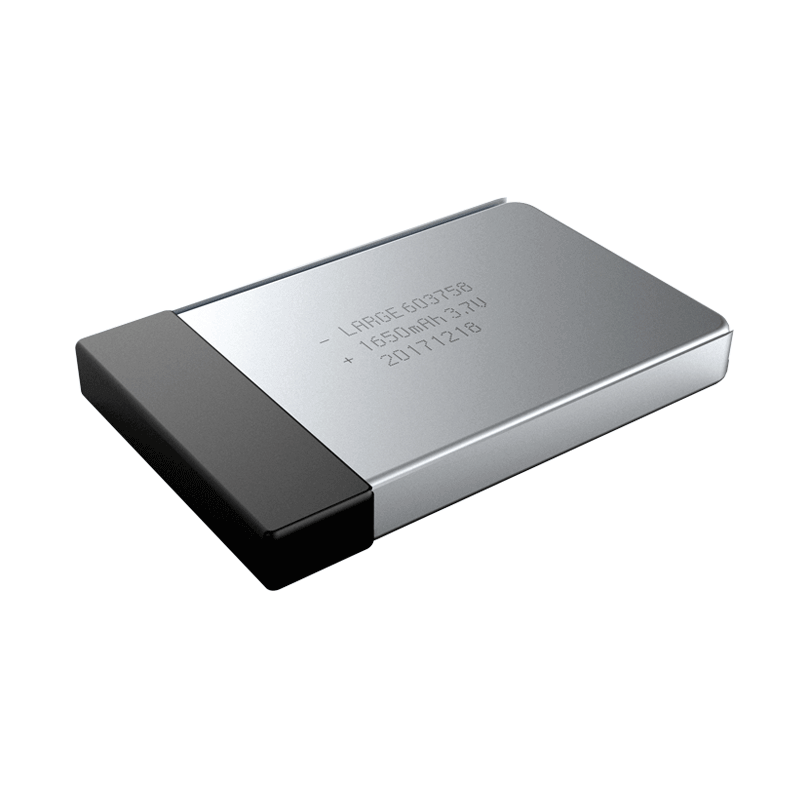

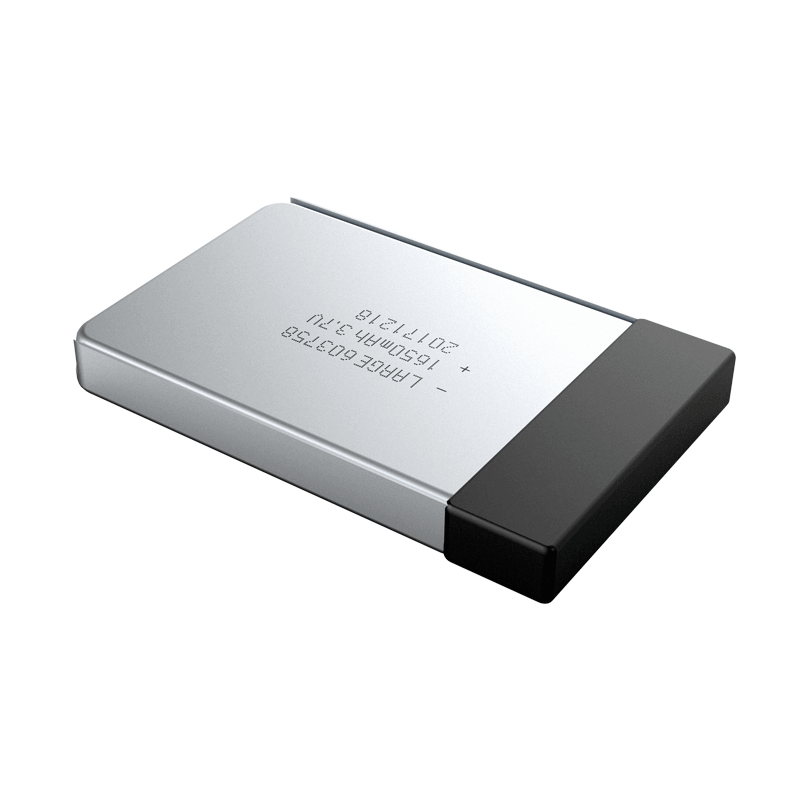

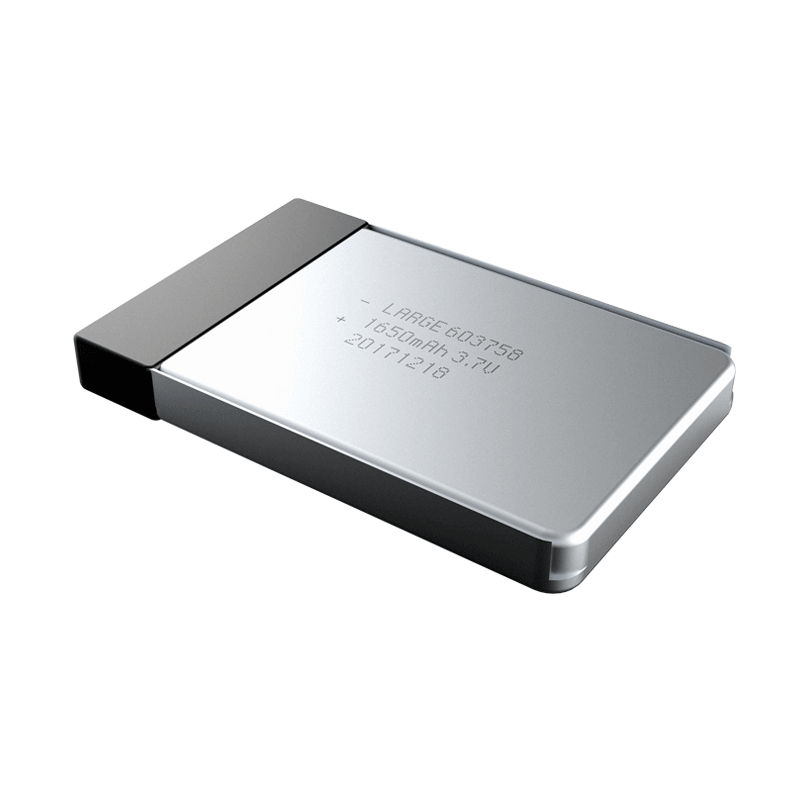

Custom Lithium ion Battery Pack
Product number: 03EQ057-01
Cell model：LA603758/3.7V/1650mAh
Battery specification: LA603758-1S1P/3.7V/1650mAh
Nominal voltage：3.7V
Nominal capacity：1650mAh
Charging voltage: 4.2V
Charging current: ≤0.3A
Discharging current: 0.3A
Instant discharging current: 1.65A
End-off voltage: 3V
Internal resistance: ≤180m?
Battery weight: 30g
Product dimension: 58*37*6mm（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～60 ℃
Temperature protection: 60℃±5℃
Battery case: PVC
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.
Application field: special application field, detecting instrument, etc.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
