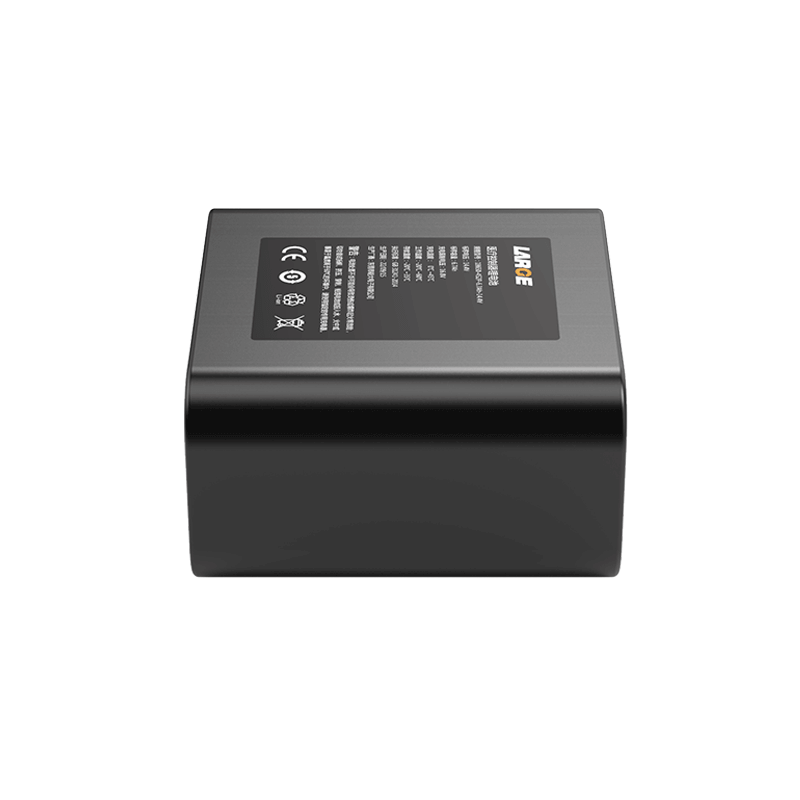

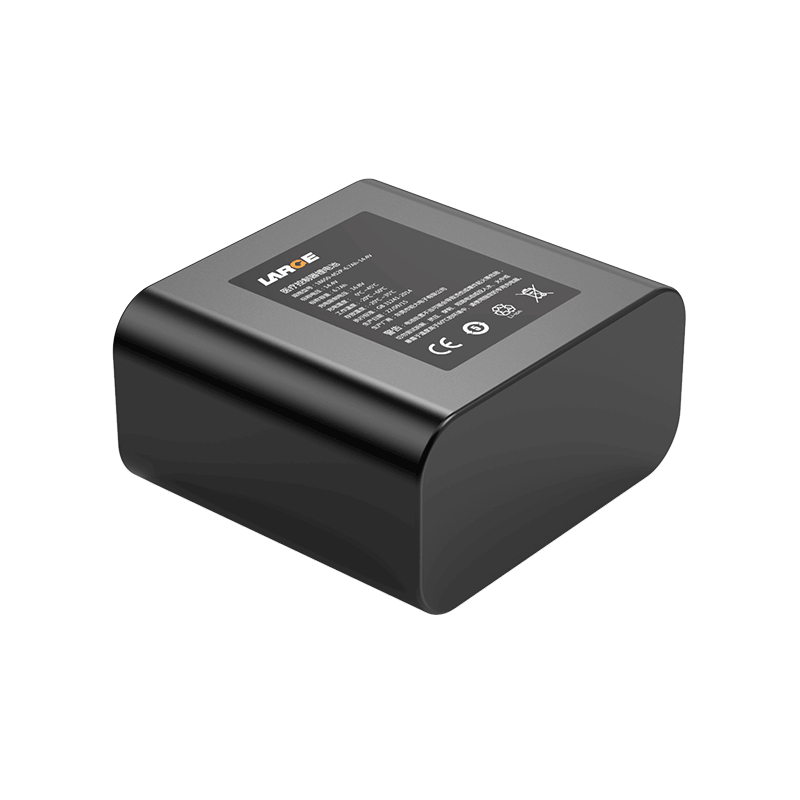

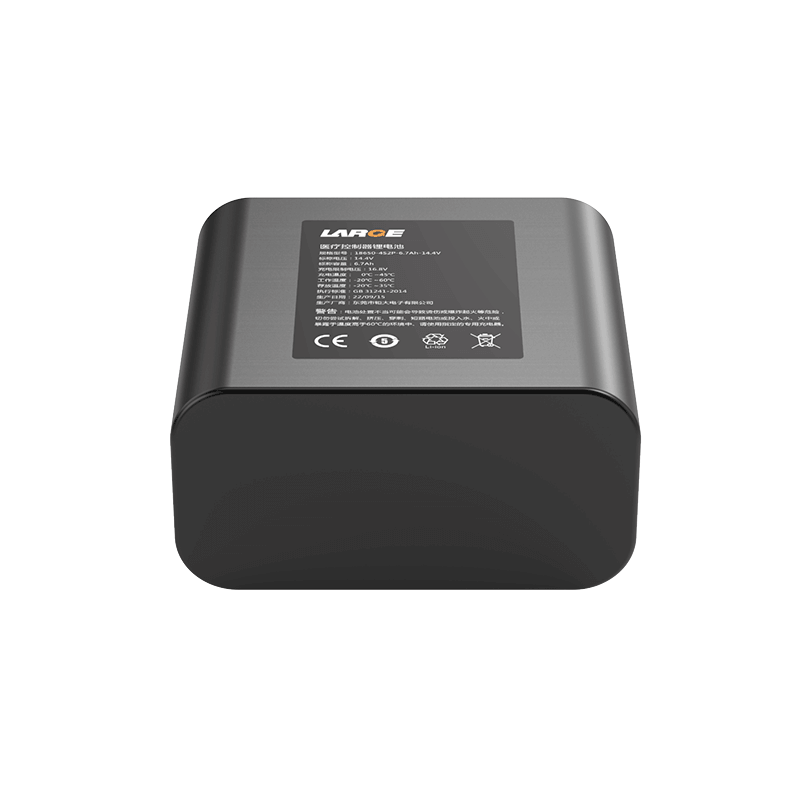

18650 6.7Ah 14.4V Medical Controller

Customization | Free Battery Solution

Product Detail

Product number: 06DQ054-02T

Cell model: 18650-3350mAh-3.6V

Battery specification: 18650-4S2P-6.7Ah-14.4V

Nominal voltage: 14.4V

Nominal capacity: 6.7Ah

Charging voltage: 16.8V

Charging current: ≤3.0A

Discharge current: ≤6.0A

Discharge cut-off voltage: 10.8V

Internal resistance of finished product: ≤350mΩ

Battery weight: 410g

Product size: 75.5*72*38.5mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ° C

Battery case: PVC package without case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Portable medical device controller, portable medical device

Product Feature

1.Heat shrinkable PVC package has simple process, portable and environmental friendly,and it can be easily fixed within the host.

2.Connector plug output: Use the MOLEX plug output mode to increase conductive reliability;

3.Adopt import protection chip, as well as the low impedance FETMOSF seiko with good stability, nice precision monitoring, accrate control, so as to eliminate safety hidden trouble.

4.Data communication management: Use TI - SMBus software management chip, SMBus communication data transmission, accurate temperature control precision, so as to eliminate potential safety problems.

5.The battery has good safety,nice discharge performance and long cycle life.

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept;
