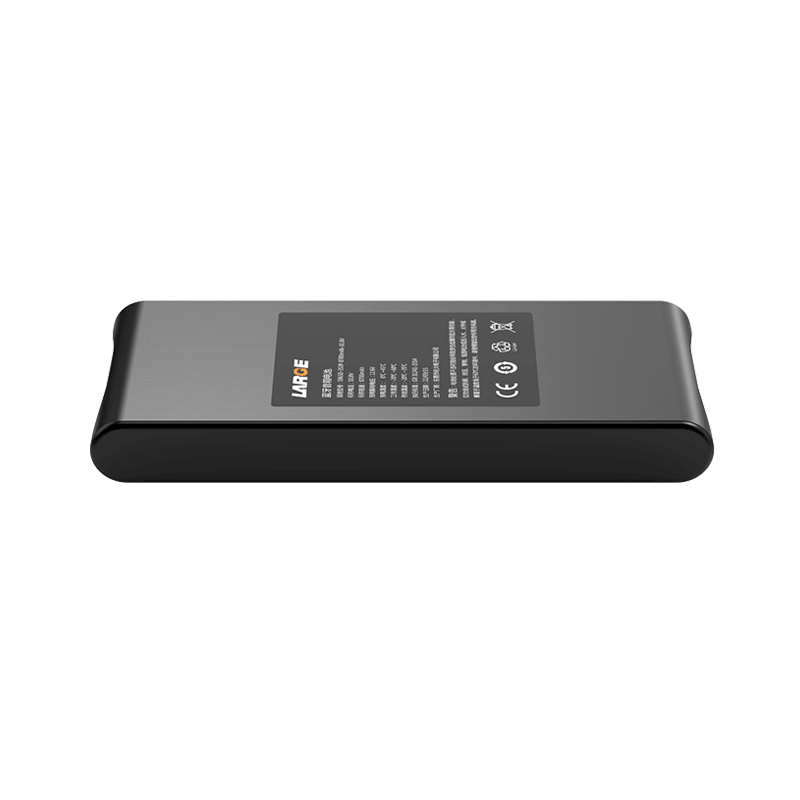

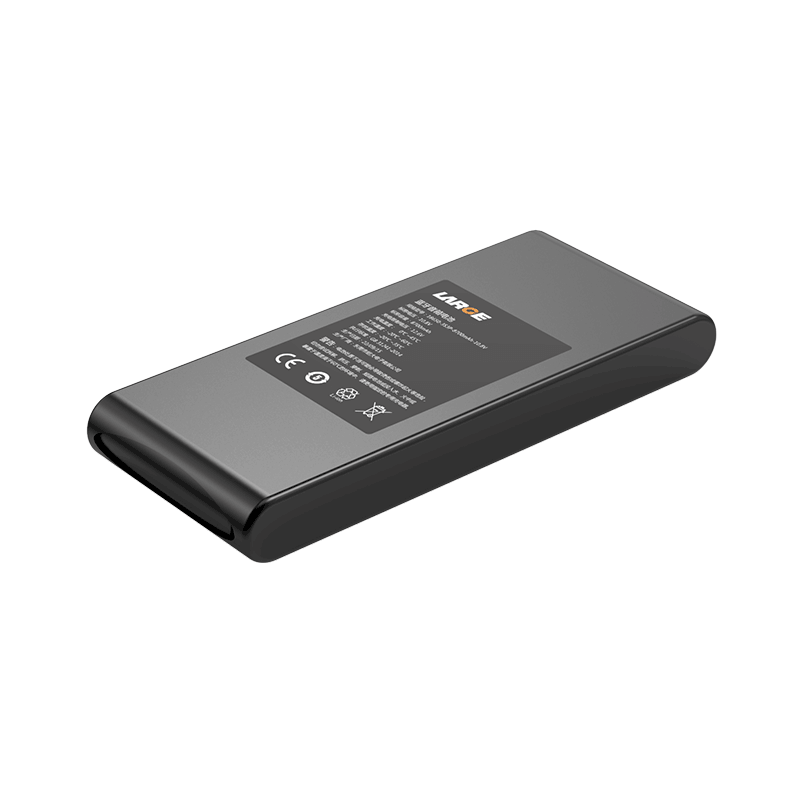

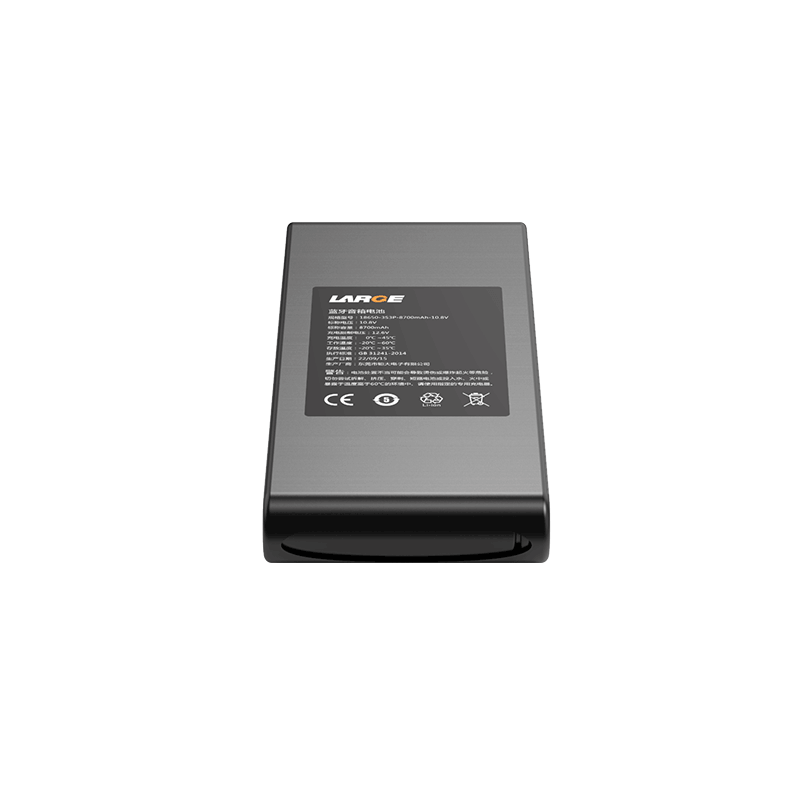

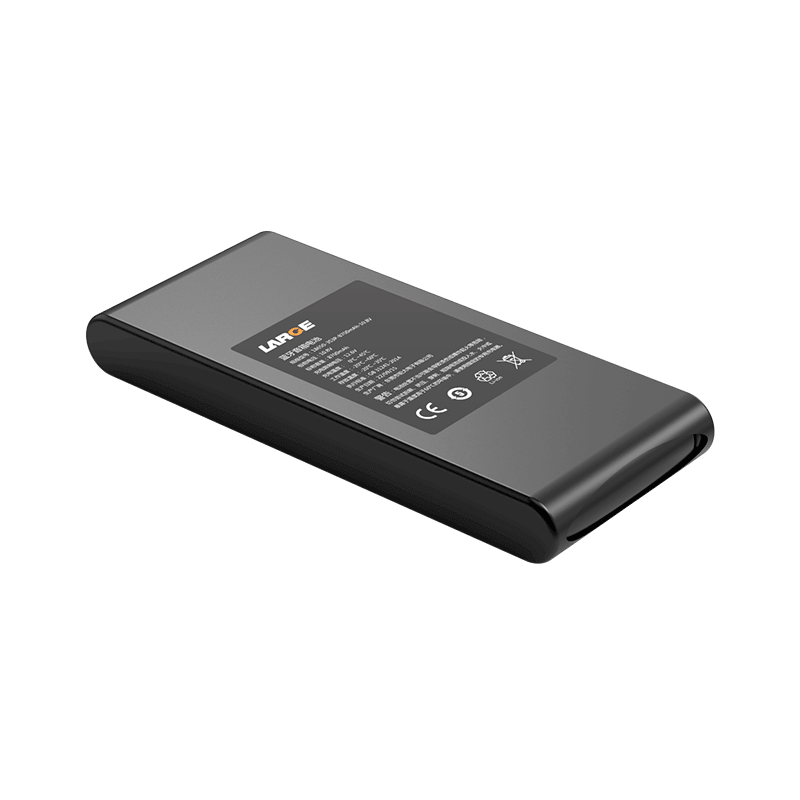

18650 8700mAh 10.8V Bluetooth Speaker Battery

Customization | Free Battery Solution

Product Detail

Product number: 08DQ0001-05

Cell model: 18650-2900mAh-3.6V

Battery specification: 18650-3S3P-8700mAh-10.8V

Product size: 168*72*20mm

Nominal voltage: 10.8V

Nominal capacity: 8700mAh

Finished internal resistance: ≤300mΩ

Charging voltage: 12.6V

Charging current: ≤4.2A

Discharge current: ≤12A

Discharge cut-off voltage: 7.5V

Battery weight: 450g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ° C

Battery package: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: portable device, Bluetooth speaker device

Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to be installed;

2.The battery uses special cell stent assembly, epoxy board protection, special nickel piece connection, with nice shock resistance and impact resistant performance;

3.Use GB wires increases the conductive reliability;

4.Connector plug output: Use JST plug output mode to increase conductive reliability;

5.Battery protection and control: Adopt special lithium battery protection chip with good stability, nice precision monitoring, precision control, temperature protection and other functions, so as to eliminate the safety risks;

6.The battery has good safety, nice discharge performance and long cycle life.

7.The battery has long cycle life, accord with low carbon, energy saving, environmental protection value concept;
