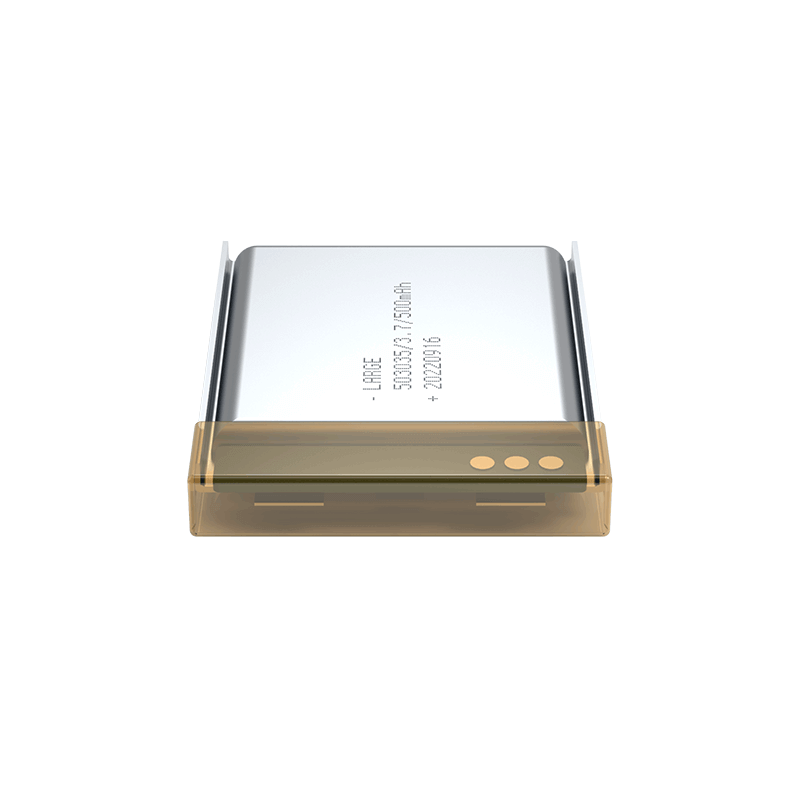

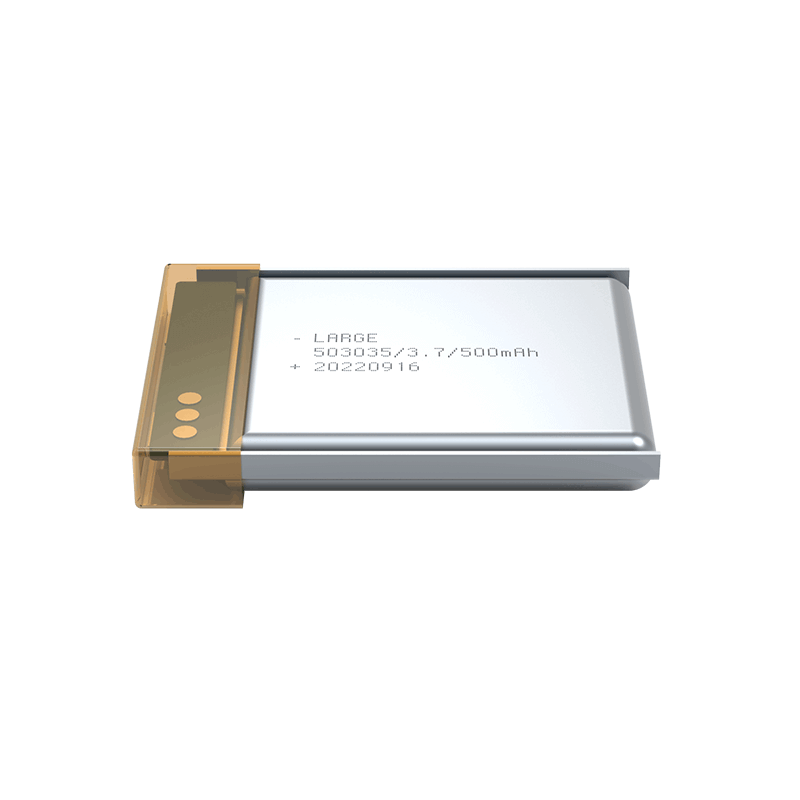

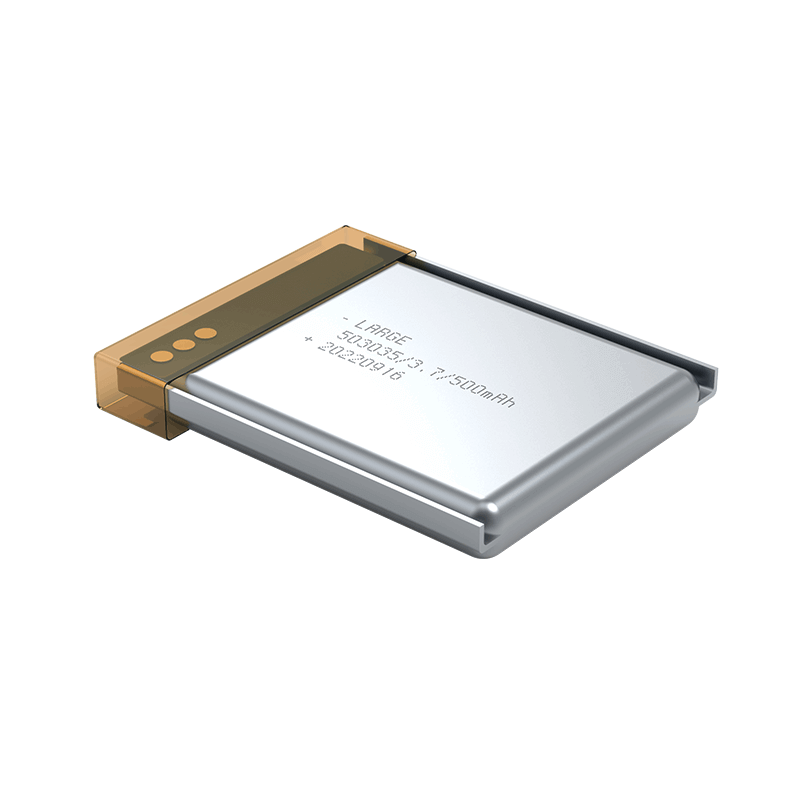

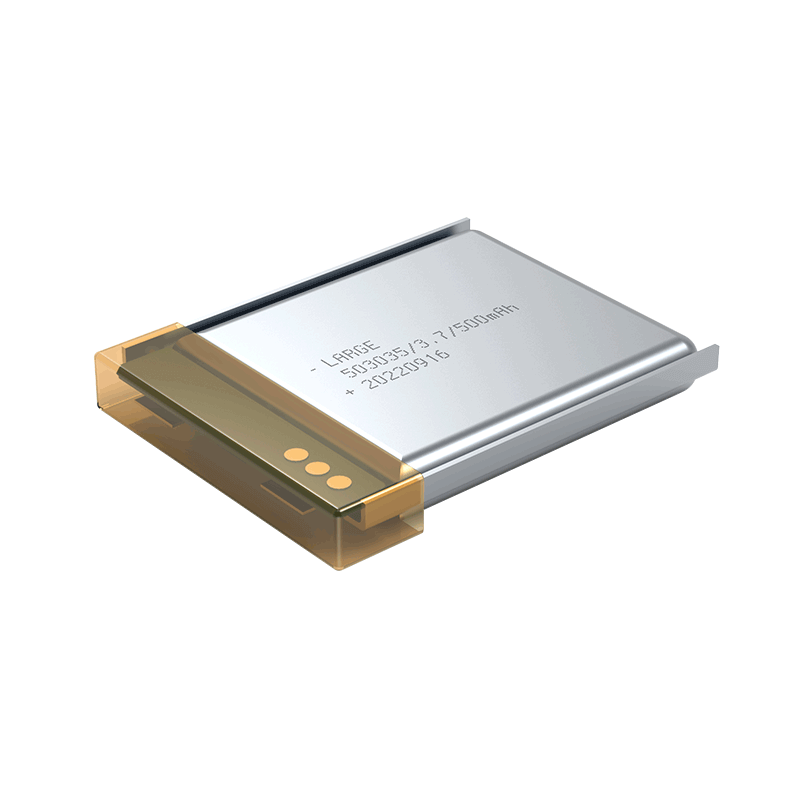

Product number: 08DQ0001-06
Cell model: 503035-500mAh-3.7V
Battery specification: 503035-1S1P-500mAh-3.7V
Product size: 37*30.5*5.5mm
Nominal voltage: 3.7V
Nominal capacity: 500mAh
Internal resistance of finished product: ≤260mΩ
Charging voltage: 4.2V
Charging current: ≤0.5A
Discharge current: ≤0.5A
Discharge cut-off voltage: 3.0V
Battery weight: 16g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 ~ 35 ° C
Battery package: Simple package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Bluetooth speaker, handheld device, portable handheld device
1.Suggest encapsulation, which is simple and easy to be installed;
2.Connector plug output: Use MOLEX plug output mode to increase conductive reliability;
3.Battery protection and control: Adopt special lithium battery protection chip with good stability, high precision monitoring, accurate control, temperature protection and other functions, so as to eliminate safety risks;
4.The lithium polymer battery has good safety, nice discharge performance and long cycle life.
5.The battery has long cycle life, accord with low carbon, energy saving, environmental protection value concept;
