Home>Battery Pack>Lithium Polymer Battery

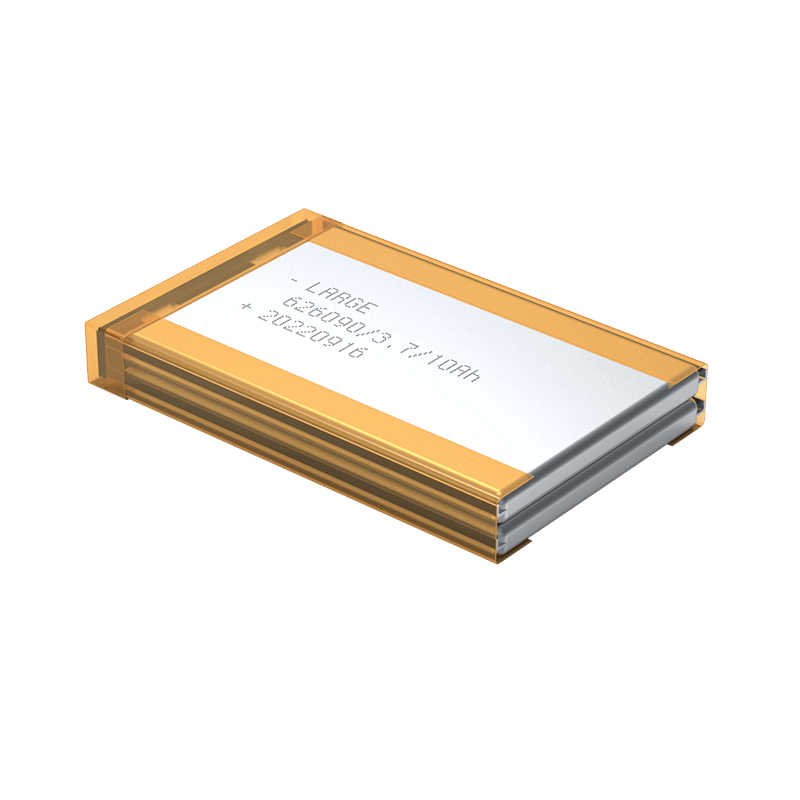

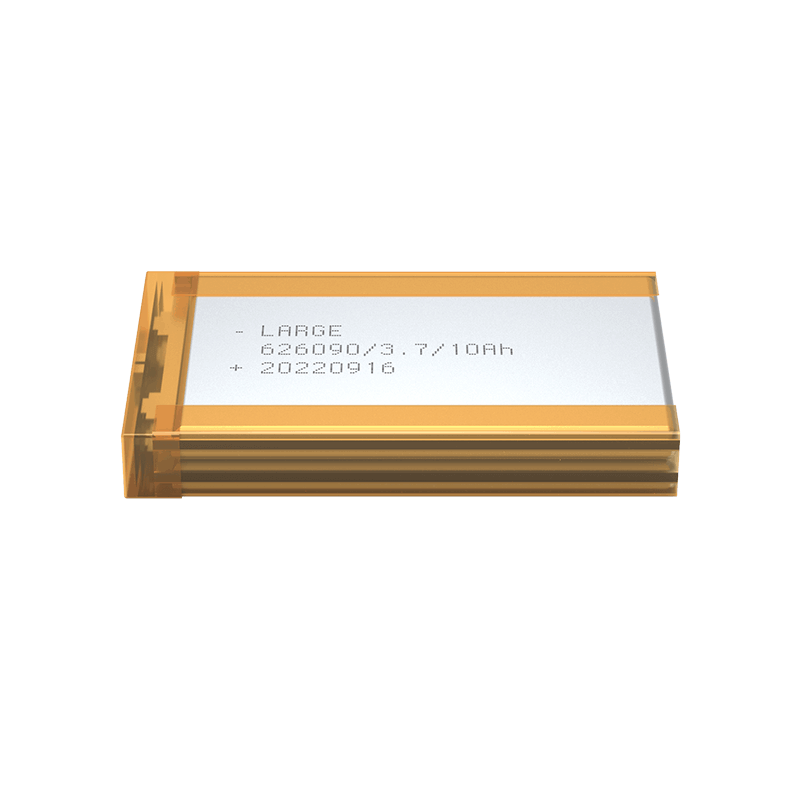

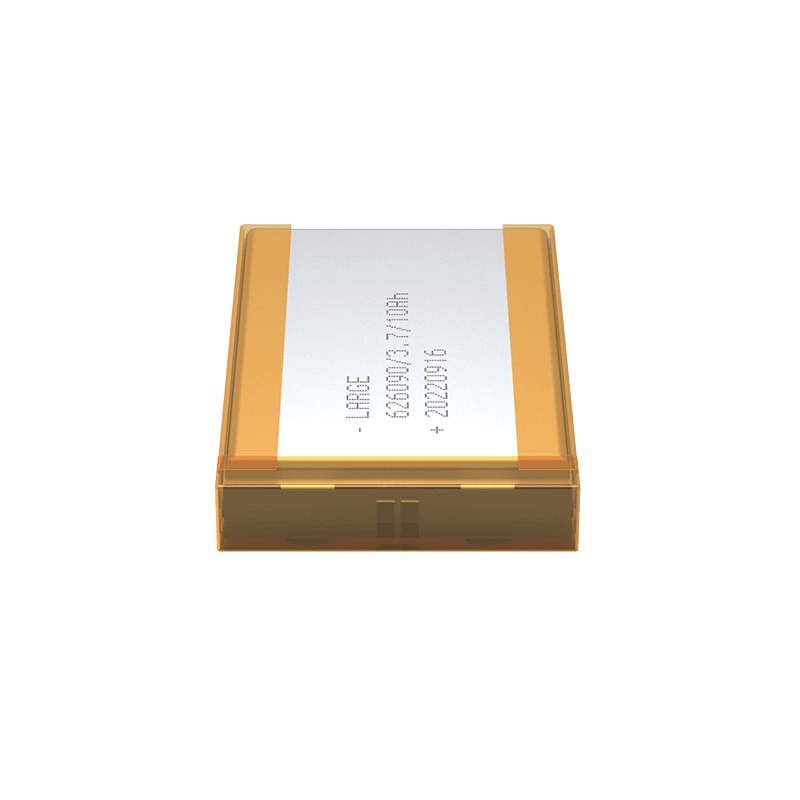

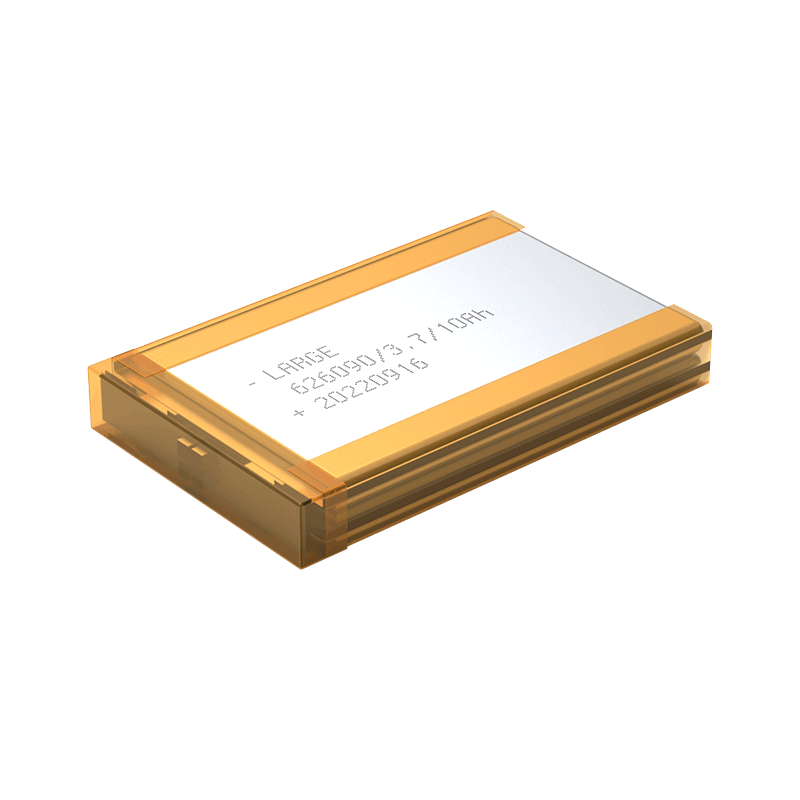

10Ah 3.7V Intelligent Dynamic ECG Monitor Battery

Customization | Free Battery Solution

Product Detail

Product number: 08DQ0060-02

Cell model: 626090-5000mAh-3.7V

Battery specification: 626090-1S2P-10Ah-3.7V

Product size: 95*61*12.9mm

Nominal voltage: 3.7V

Nominal capacity: 10Ah

Internal resistance of finished product: ≤200mΩ

Charging voltage: 4.2V

Charging current: ≤3.0A

Discharge current: ≤3.0A

Discharge cut-off voltage: 3.0V

Battery weight: 180g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ° C

Battery package: Simple package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: intelligent dynamic ECG monitor equipment, portable medical equipment

Product Features

1.Simple package is easy to be installed;

2.The battery uses FPC soft wire output: Adopt gilded solder output method, and plug-in increases conductive reliability;

3.Battery protection and control: Adopt special lithium battery protection chip with nice stability, high precision monitoring, accurate control,so as to eliminate of safety hazards;

4.The battery has good safety, nice discharge performance and long cycle life.

5.The battery has long cycle life, accord with low carbon, energy saving, environmental protection value concept;
