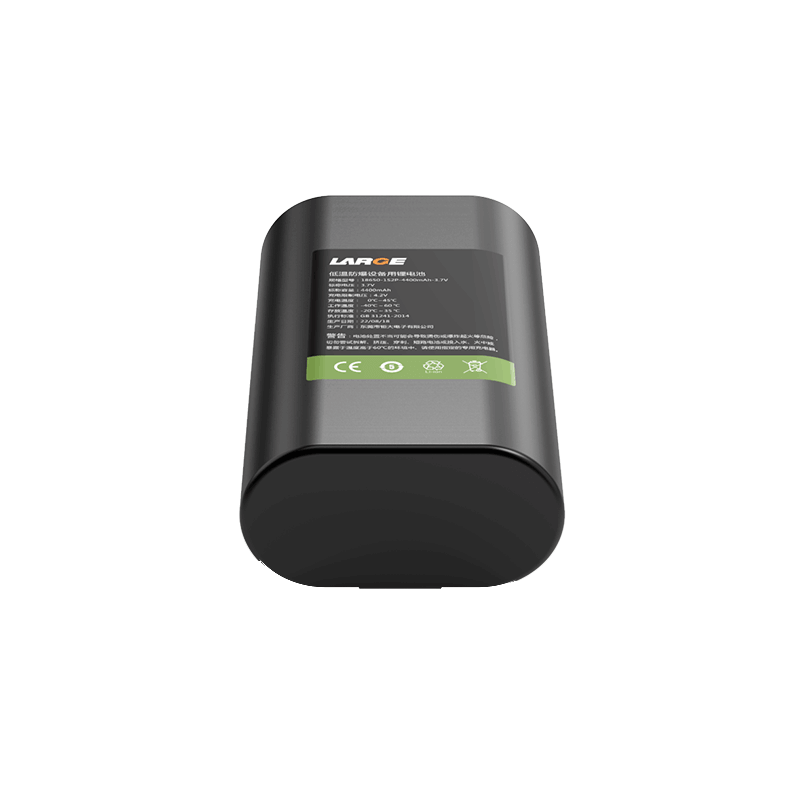

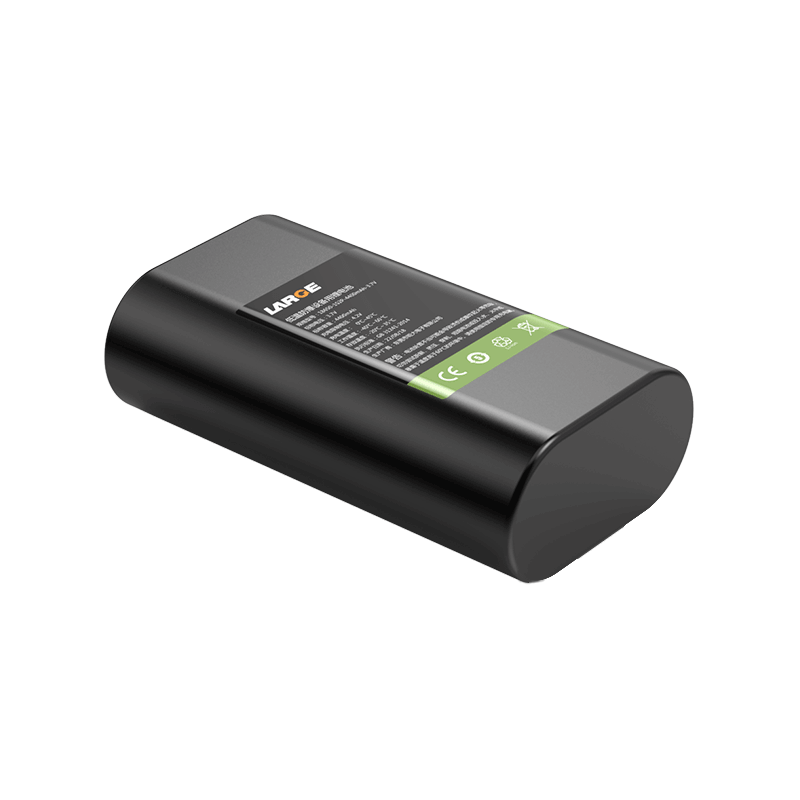

Custom Lithium ion Battery Pack
Product number: 40AQ022-01
Cell model: 18650-2200mAh-3.7V
Battery specification: 18650-1S2P-4400mAh-3.7V
Nominal voltage: 3.7V
Nominal capacity: 4400mAh
Charging voltage: 4.2V
Charging current: ≤1000mA
Discharge current: 840mA
Maximum discharge current: 1000mA
Discharge cut-off voltage: 2.5V
Internal resistance of finished product: ≤180mΩ
Battery weight: 110g
Product size: 68*38*19.5mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ +60℃
Storage temperature: -20 ~ +35℃
Battery package: soft package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection, ESD protection, etc.
Application: explosion-proof equipment, handheld equipment, portable equipment, security
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
