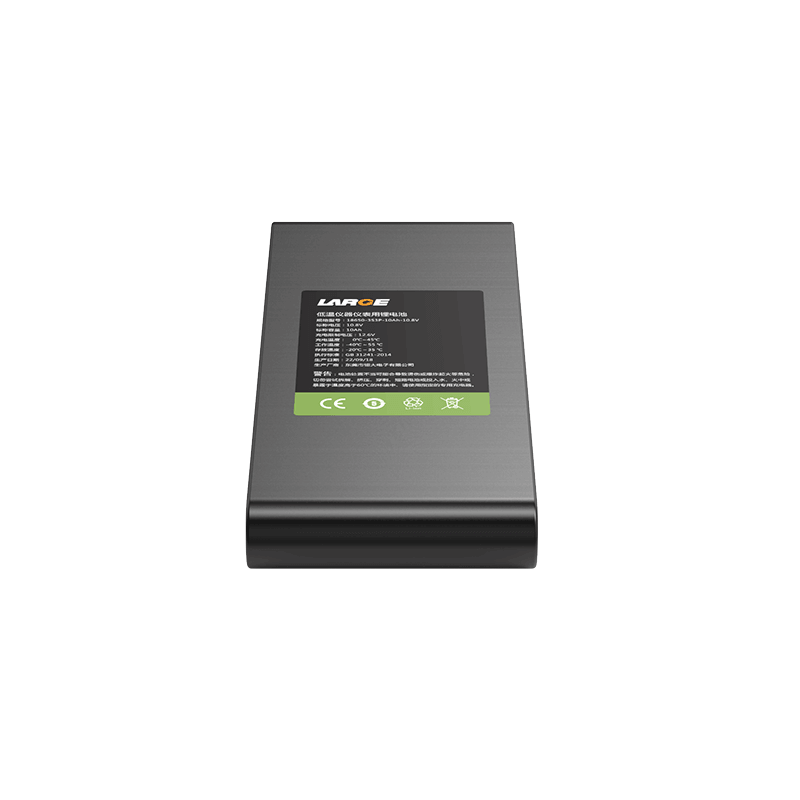

Custom Lithium ion Battery Pack
Product number: 35AQ833-01
Cell model: 18650-3350mAh-3.6V
Battery specification: 18650-3S3P-10Ah-10.8V
Nominal voltage: 10.8V
Nominal capacity: 10Ah
Charging voltage: 12.6V
Charging current: ≤5A
Discharge current: 2A
Instant discharge current: 15A
Discharge cut-off voltage: 7.5V
Internal resistance of finished product: ≤200mΩ
Battery weight: 490g
Product size: 168*72*19.5mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ +55℃
Storage temperature: -20 ~ +35℃
Battery package: soft package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection, ESD protection, SMBUS communication, etc.
Application: instrumentation, special handheld equipment, portable equipment, security
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
