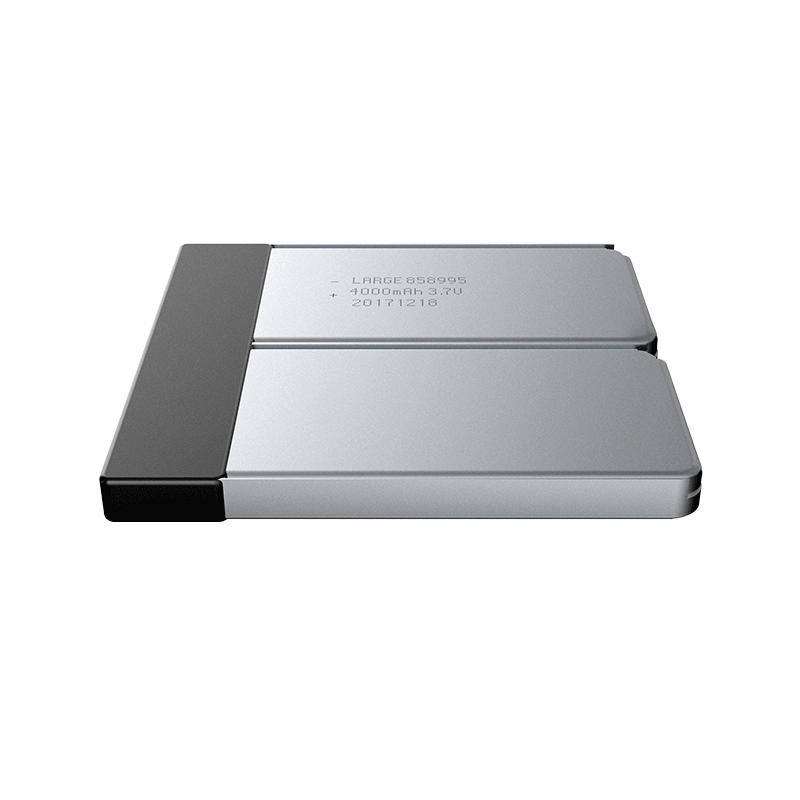

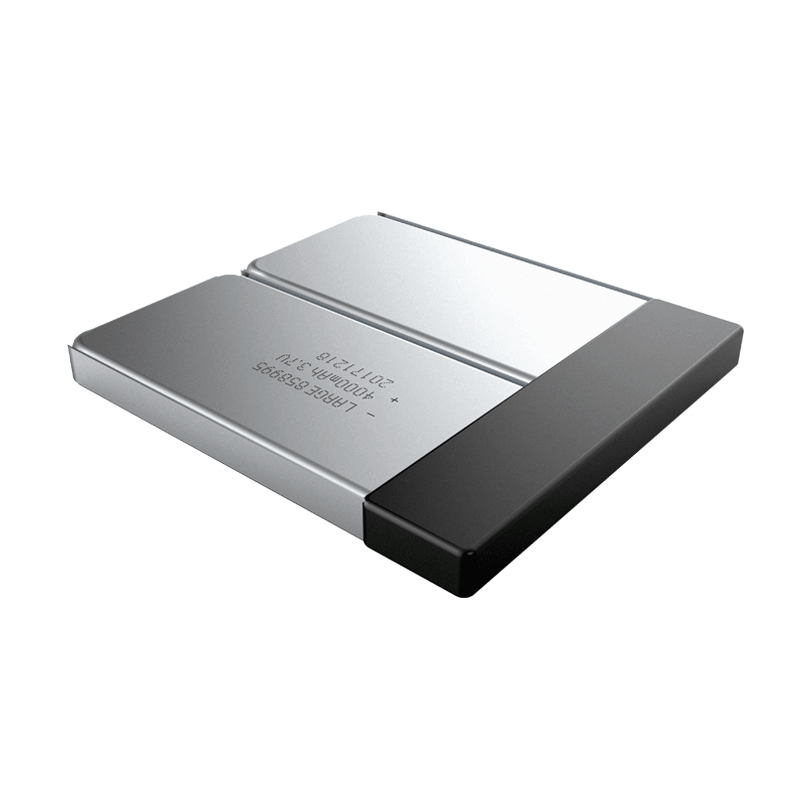

7.4V 4000mAh Lithium Polymer Battery for Medical Devices

Product number: 03EQ019-01

Cell model：LA858995/3.7V/4000mAh

Battery specification: LA858995-2S1P/7.4V/4000mAh

Nominal voltage：7.4V

Nominal capacity：4000mAh

Charging voltage: 8.4V

Charging current: ≤0.8A

Discharging current: 0.8A

Instant discharging current: 2A

End-off voltage: 5.6V

Internal resistance: ≤200mΩ

Battery weight: 130g

Product dimension: 95*89*85mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～60℃ ℃

Temperature protection: 60℃±5℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: special application field, medical instruments, electronic manometer, etc.
