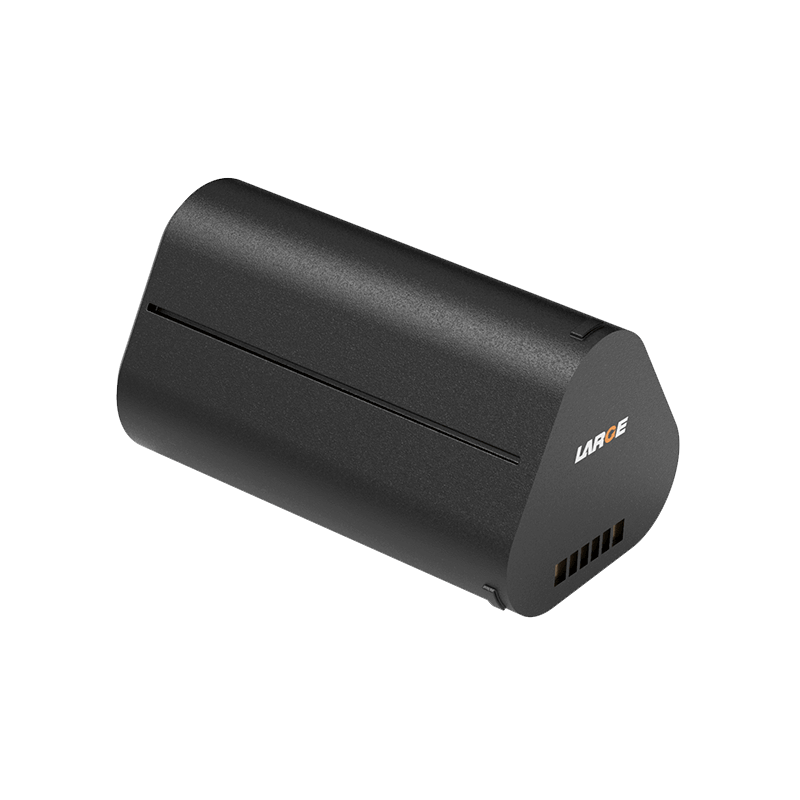

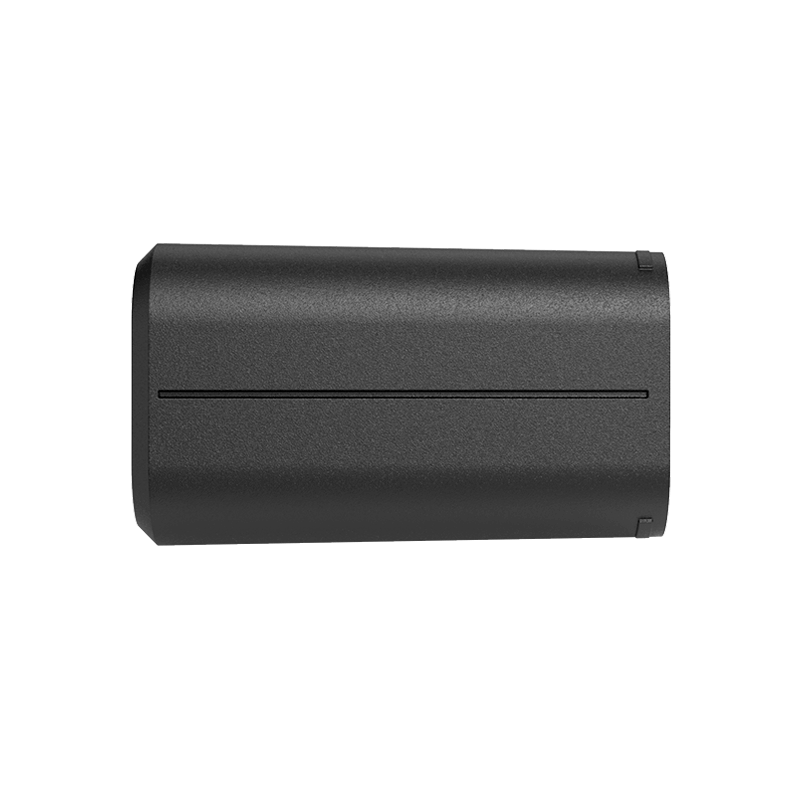

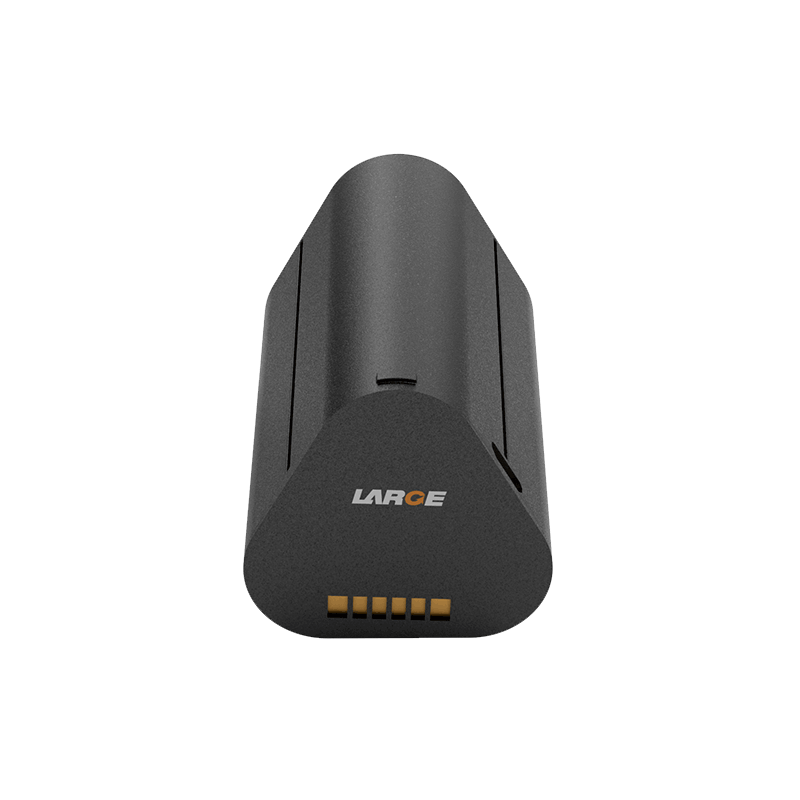

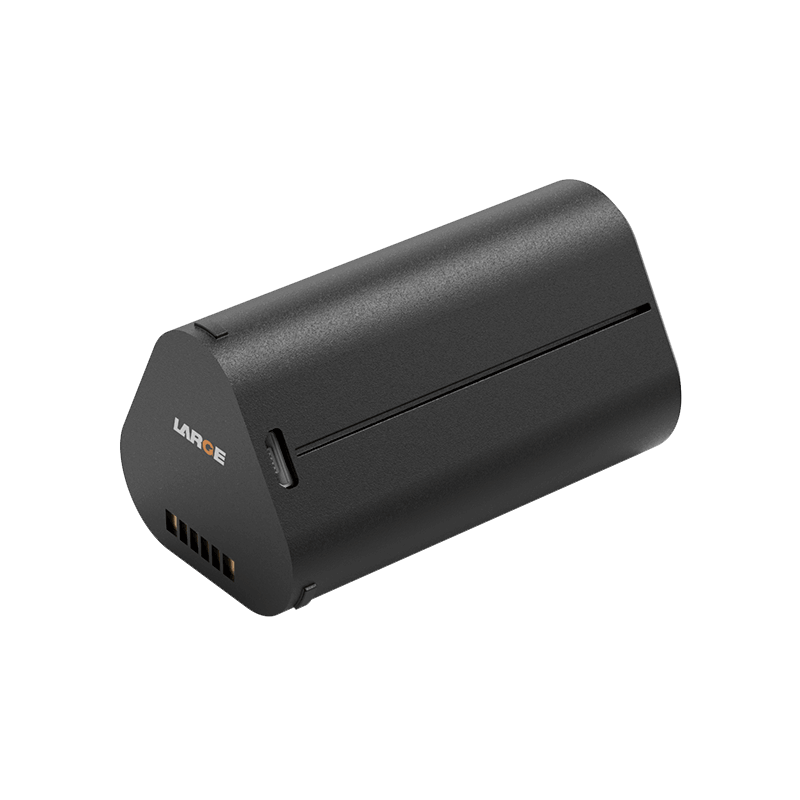

18650 3.6V 7800mAh Security Monitoring Device Lithium-ion Battery Pack

Customization | Free Battery Solution

Product Detail

Project number: 01DQ0040-29T

Cell model: 18650/2600mAh/3.6V

Battery specification: 18650-1S3P/7800mAh/3.6V

Nominal voltage: 3.6V

Nominal capacity: 7800mAh

Charging current: ≤2.0A

Discharge current: 3.5A

Instant discharge current: 3.5A

Discharge cut-off voltage: 2.9V

Internal resistance of finished product: ≤160mΩ

Battery weight: 180g

Product size: 39.14*41.65*74.20mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 25 ° C

Battery case: metal case

Intelligent lithium battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, USB charging, etc.

Application field: security monitoring
