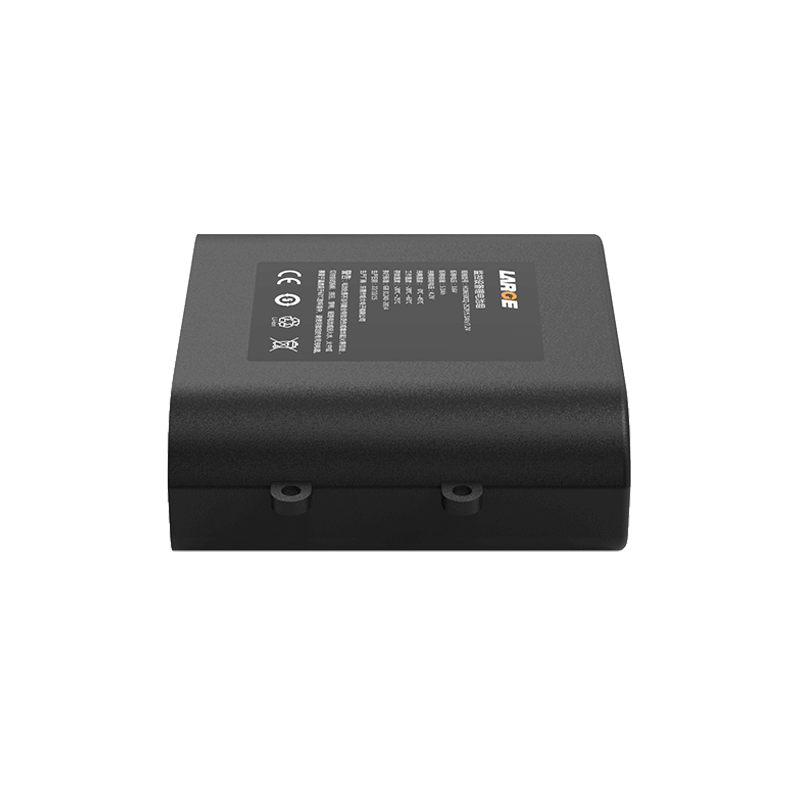

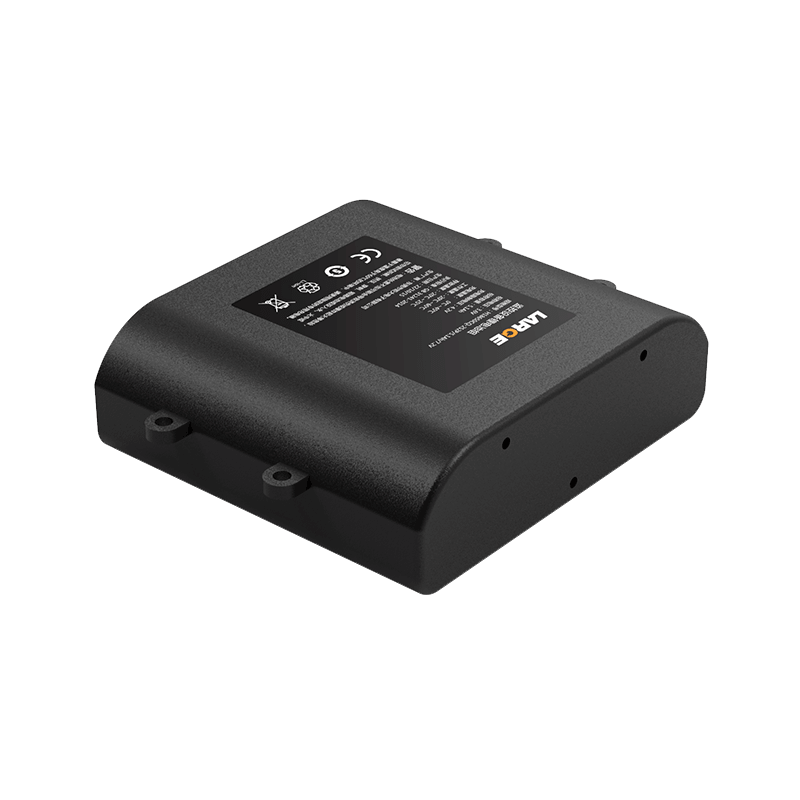

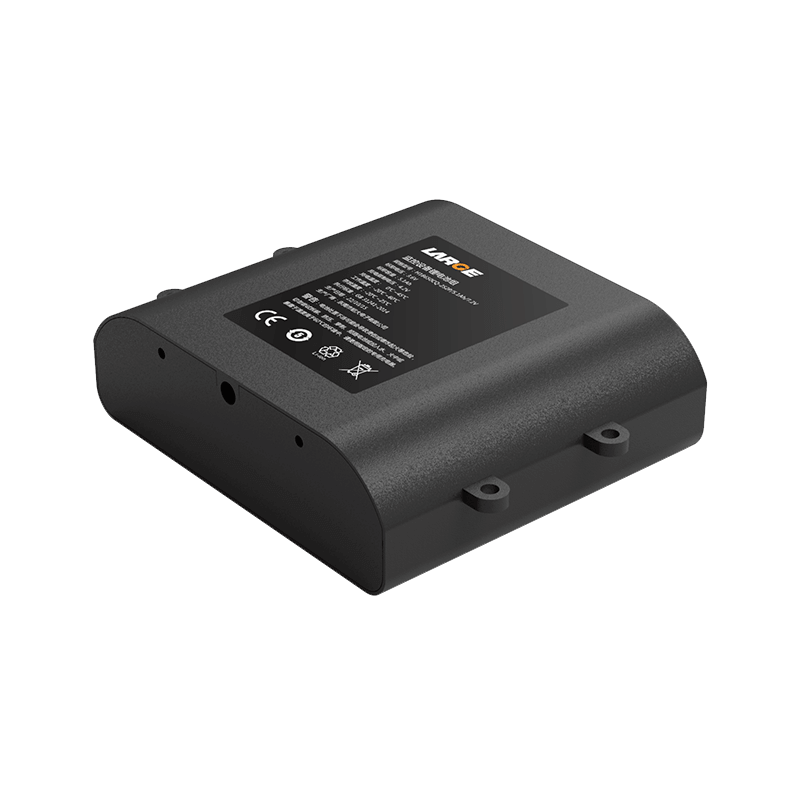

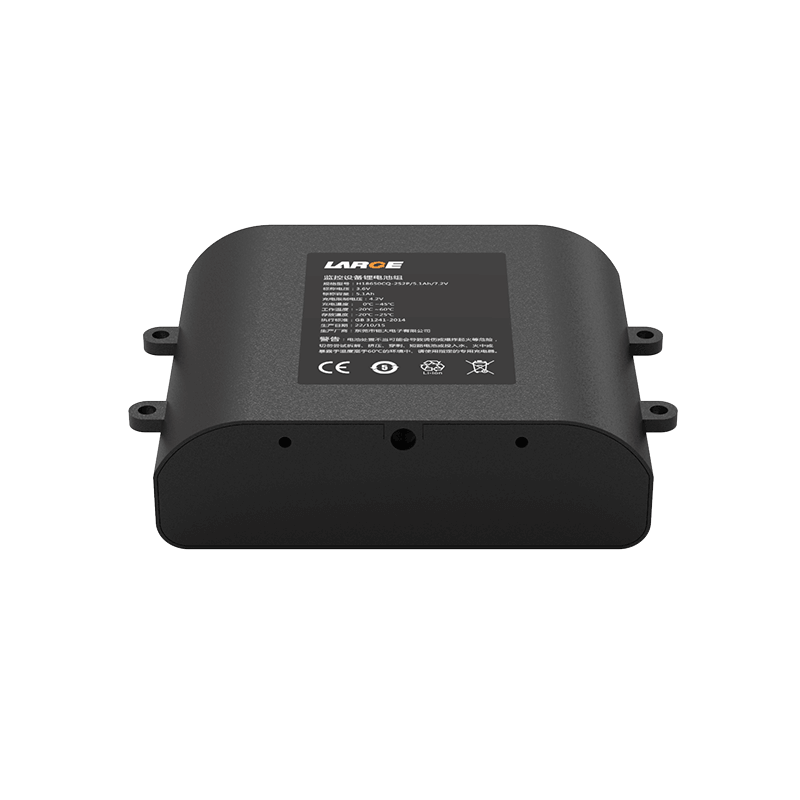

Custom Lithium ion Battery Pack
Product number: 01DQ0040-32
Cell model: H18650CQ/2550mAh/3.6V
Battery specification: H18650CQ-2S2P/5.1Ah/7.2V
Nominal voltage: 3.6V
Nominal capacity: 5.1Ah
Charging voltage: 4.2V
Charging current: ≤2.55A
Discharge current: 2.55A
Instant discharge current: 3.5A
Discharge cut-off voltage: 3.0V
Internal resistance of finished product: ≤180mΩ
Battery weight: 250g
Product size: 24*71*84mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 25 ° C
Battery case: ABS+PC
Intelligent lithium battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection
Application: security monitoring
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
