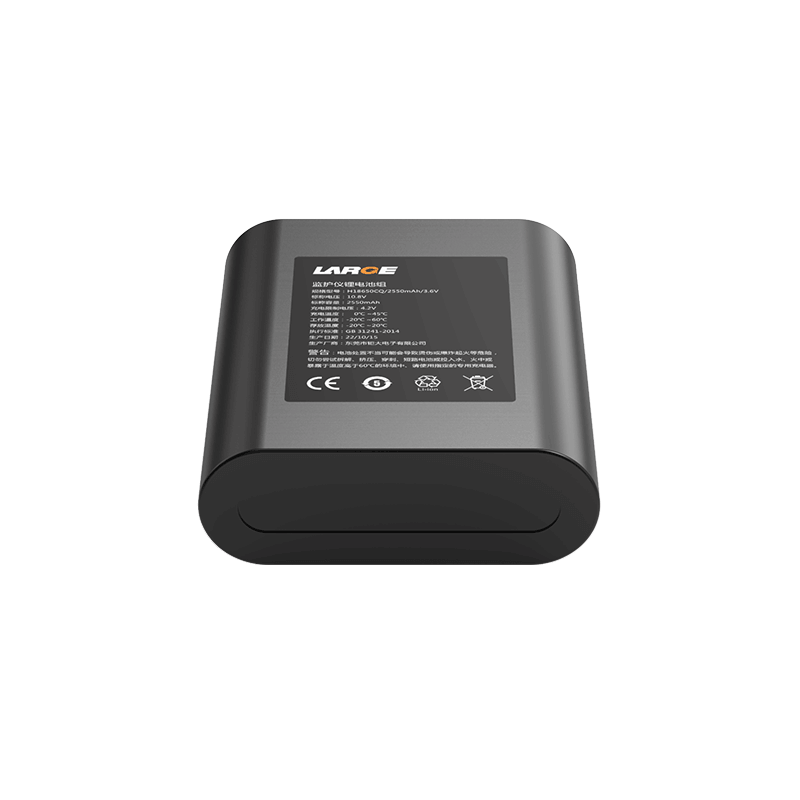

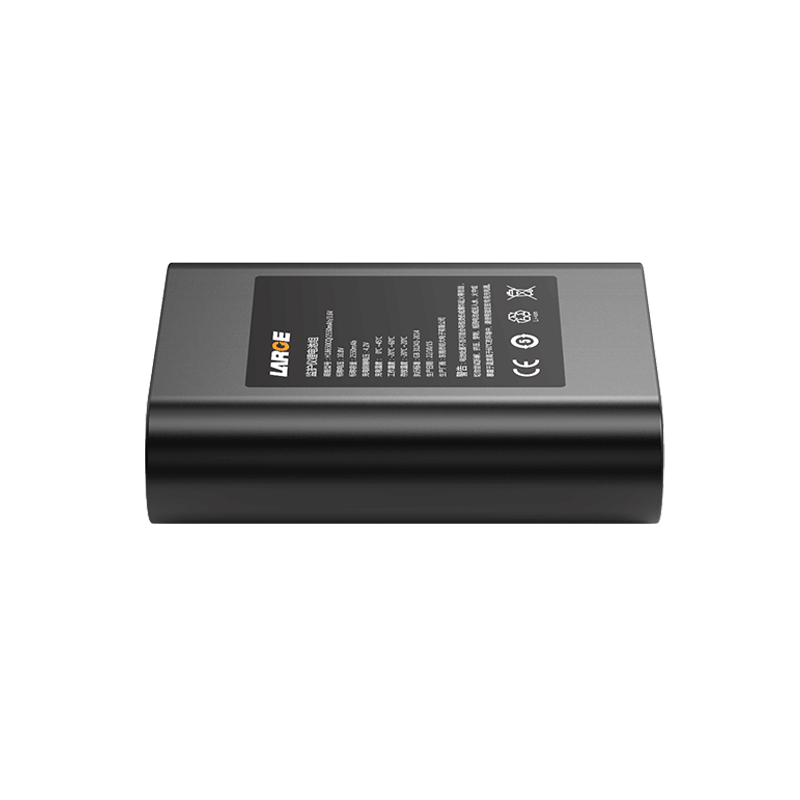

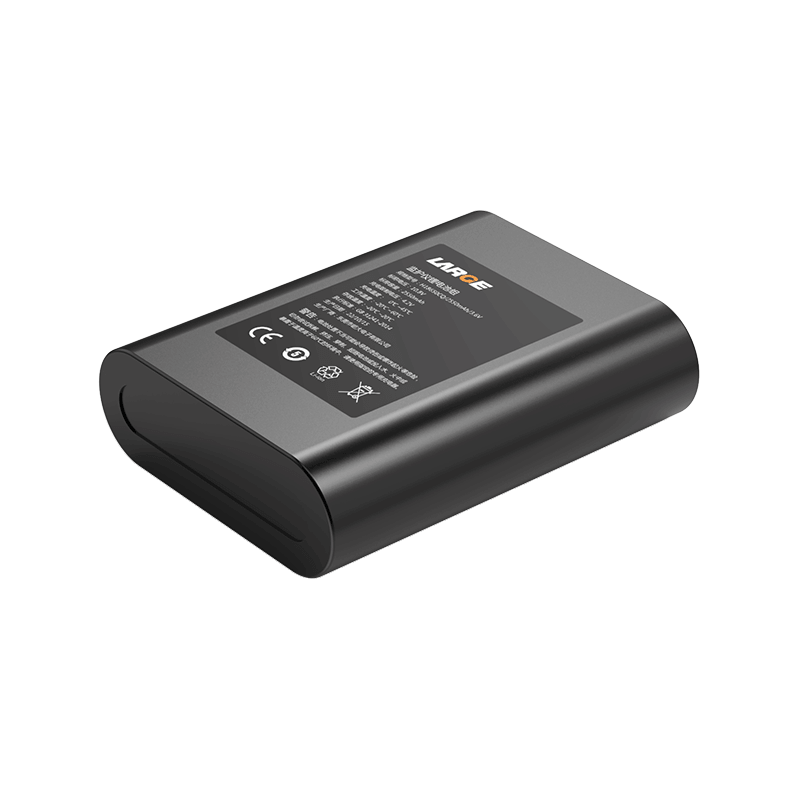

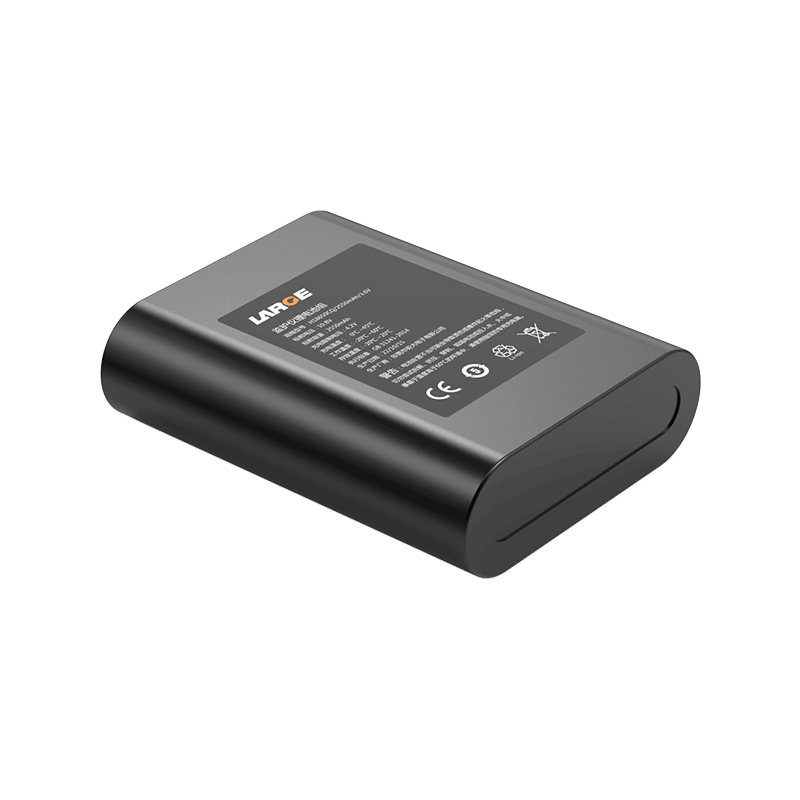

Custom Lithium ion Battery Pack
Product number: 08DQ0082-20
Cell model: H18650CQ/2550mAh/3.6V
Battery specification: 18650-3S1P/2550mAh/10.8V
Nominal voltage: 10.8V
Nominal capacity: 2550mAh
Charging current: ≤3.35A
Discharge current: 3.0A
Instantaneous discharge current: 6A
Discharge cut-off voltage: 8.1V
Internal resistance of finished product: ≤230mΩ
Battery weight: 180g
Product size: 19.5*56*70mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 20 ° C
Battery case: /
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Monitor
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
