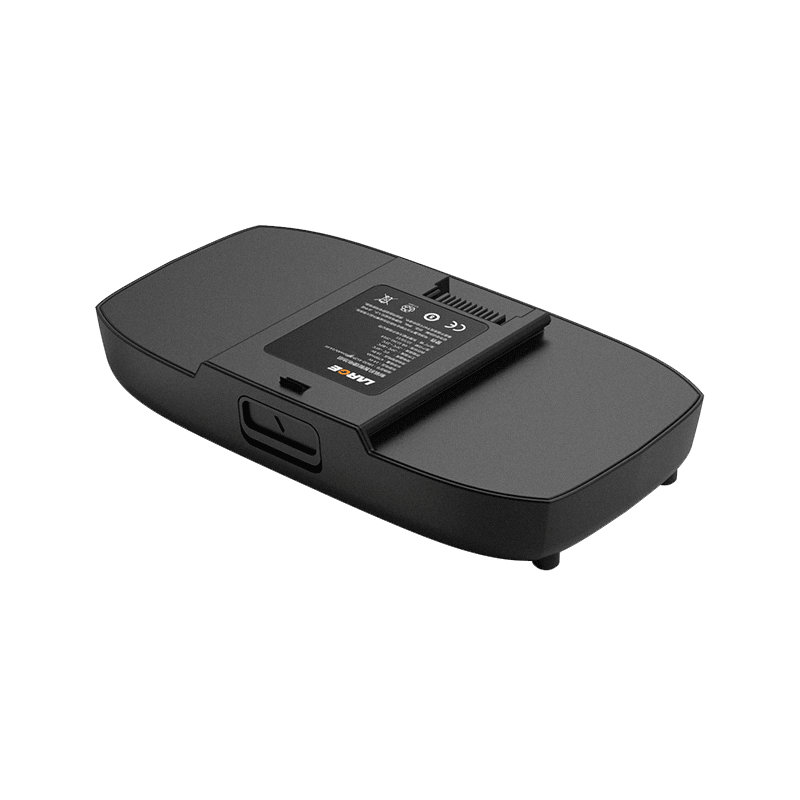

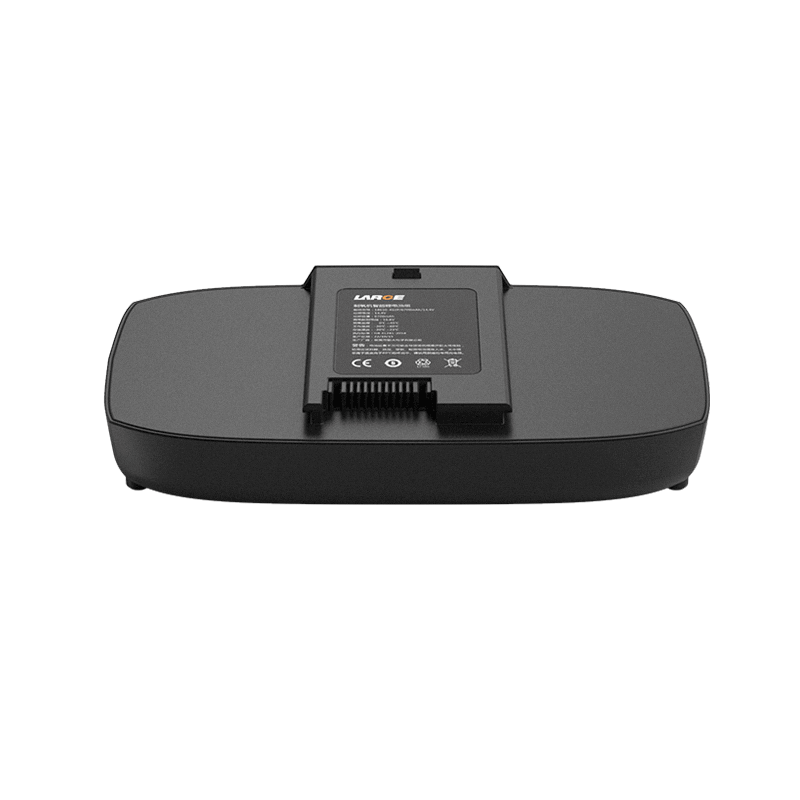

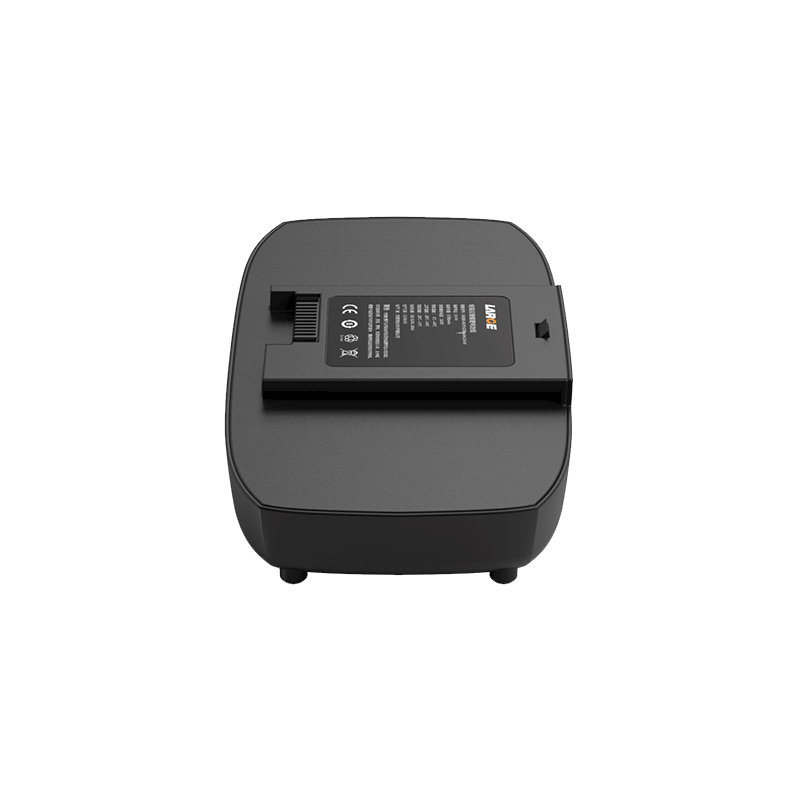

Custom Lithium ion Battery Pack
Produce number: 05DQ0066-01
Cell model: INR18650-35E/3350mAh/3.6V
Battery Specification: 18650-4S2P/6700mAh/14.4V (Smart + case)
Nominal voltage: 14.4V
Nominal capacity: 6700mAh
Charging voltage: 16.8V
Charging current: ≤3.35A
Discharge current: 6.70A
Instantaneous discharge current: 15.0A
Discharge cut-off voltage: 11.2V
Internal resistance of finished product: ≤250mΩ
Battery weight: 550g
Product size: 25.9*97.5*176.73mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 23℃
Battery case: /
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Oxygen generator
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
