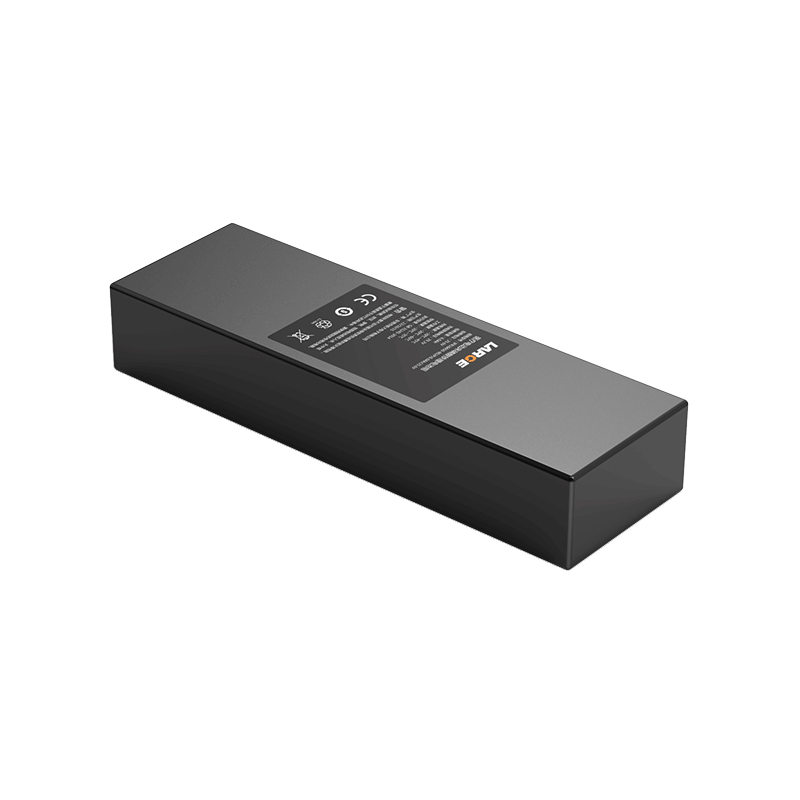

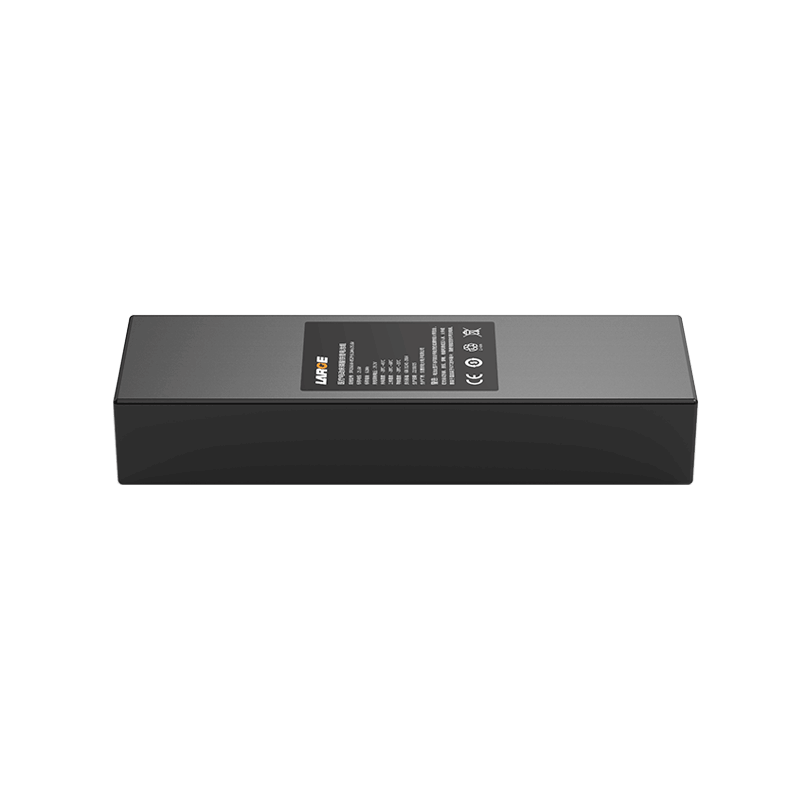

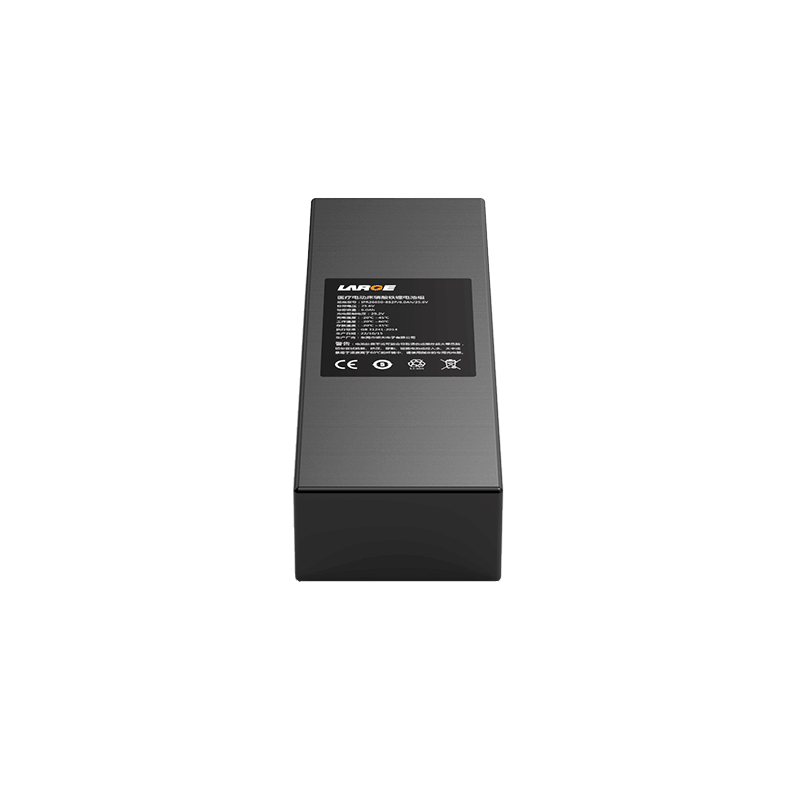

Custom Lithium ion Battery Pack
Product number: 05DQ0063-01
Cell model: IFR26650/3000mAh/3.2V
Battery specification: IFR26650-8S2P/6.0AH/25.6V
Nominal voltage: 25.6V
Nominal capacity: 6.0Ah
Charging voltage: 29.2V
Charging current: ≤3.0A
Discharge current: 15.0A
Instant discharge current: 20A
Discharge cut-off voltage: 20.0V
Finished internal resistance: ≤300mΩ
Battery weight: 400g
Product size: 73*40*230mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35 ° C
Battery case: /
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: medical electric bed
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
