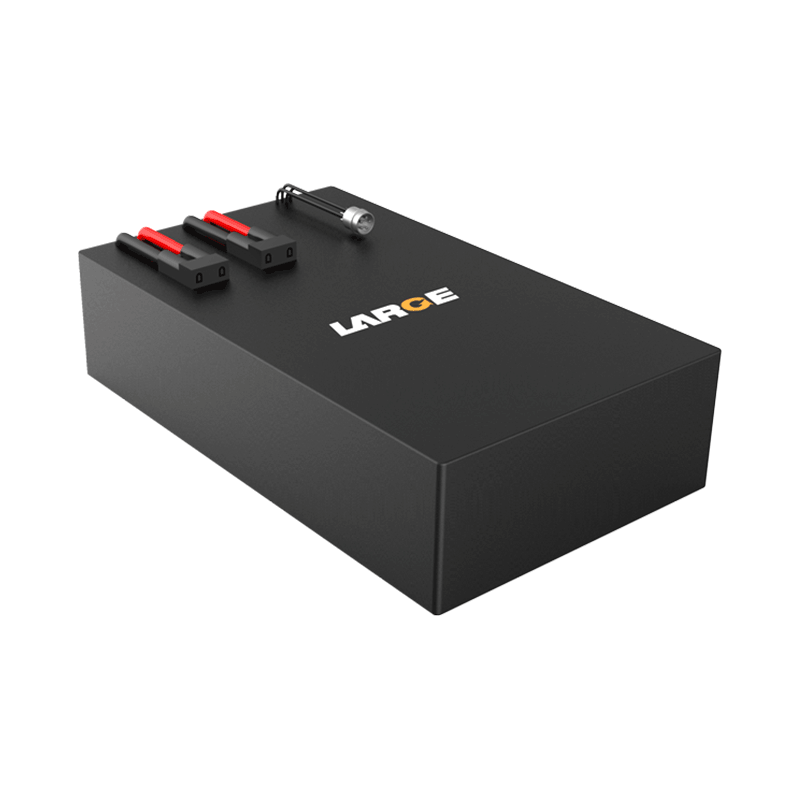

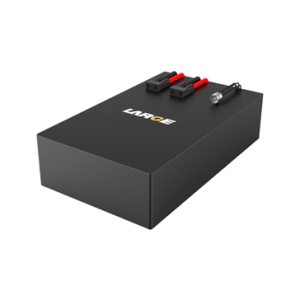

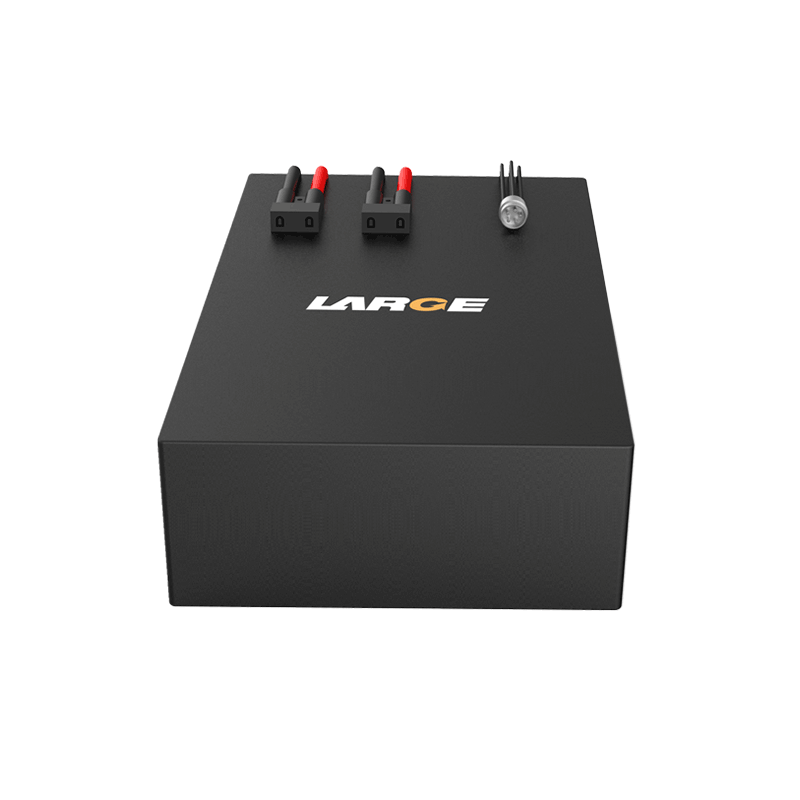

Custom Lithium ion Battery Pack
Product number: 04EQ029-01
Cell model：26650/3.2V/3.5Ah
Battery specification: 26650-15S4P/48V/14Ah
Nominal voltage：48V
Nominal capacity：14Ah
Charging voltage: 54.6V
Charging current: ≤10A
Discharging current: 40A
Instant discharging current: 100A
End-off voltage: 41.25V
Internal resistance: ≤200mΩ
Battery weight: 5.5kg
Product dimension: 290×175×75(Max)
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～40 ℃
Temperature protection: 65℃±5℃
Battery case: thermal shrinkage of PVC
Communication: RS485
Protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.
Application field: robot, AGV, RGV
Product features
1. Copper nickel compositing with nickel strap: connect the batteries by copper nickel compositing with nickel strap, which is safe and reliable. It assures to work through large current.
2. Large current connector: apply Anderson large current connector, which has maximum current of 100A.
3. Communication interface: have RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.
4. Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.
5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.
6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
