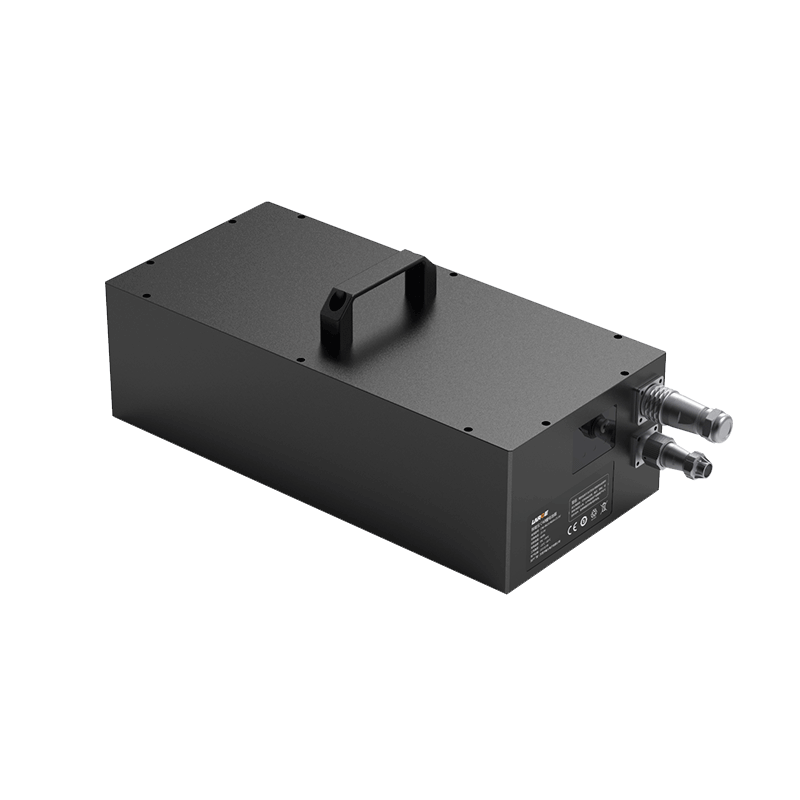

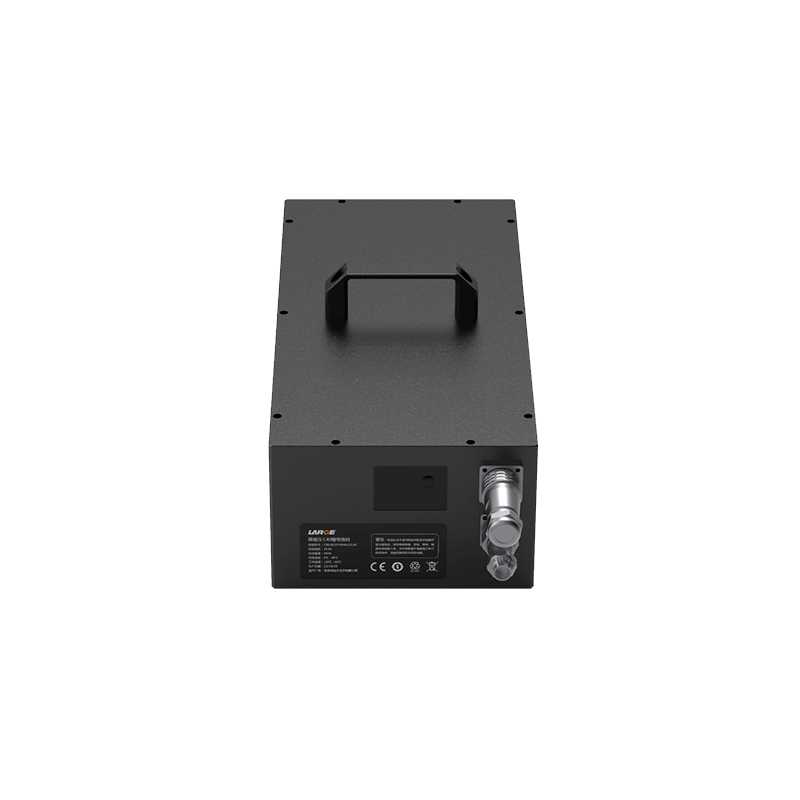

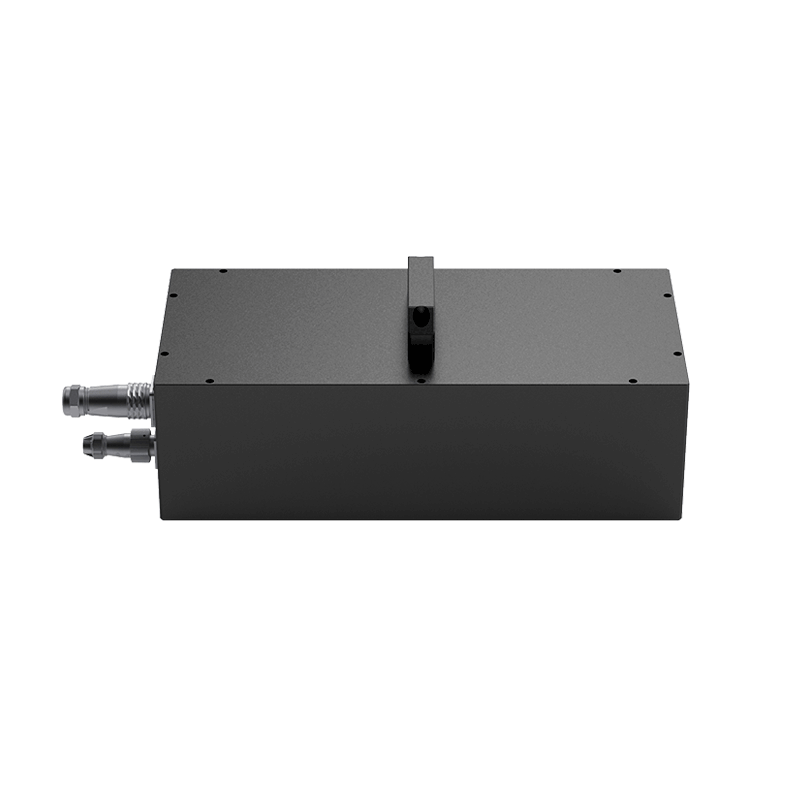

25.6V 40Ah Lithium-ion Battery Pack for NMR Equipment C40

Customization | Free Battery Solution

Product Detail

Product number: 08DQ0063-01

Cell model: C40/20AH/3.2V

Battery specification: C40-8S2P/40AH/25.6V

Nominal voltage: 25.6V

Nominal capacity: 6.0Ah

Charging voltage: 29.2V

Charging current: ≤20A

Discharge current: 40A

Instant discharge current: 50A

Discharge cut-off voltage: 20.0V

Internal resistance of finished product: ≤100mΩ

Battery weight: 5.5KG

Product size: 98.57*154.29*325.71mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 25 ° C

Battery case: /

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: NMR equipment
