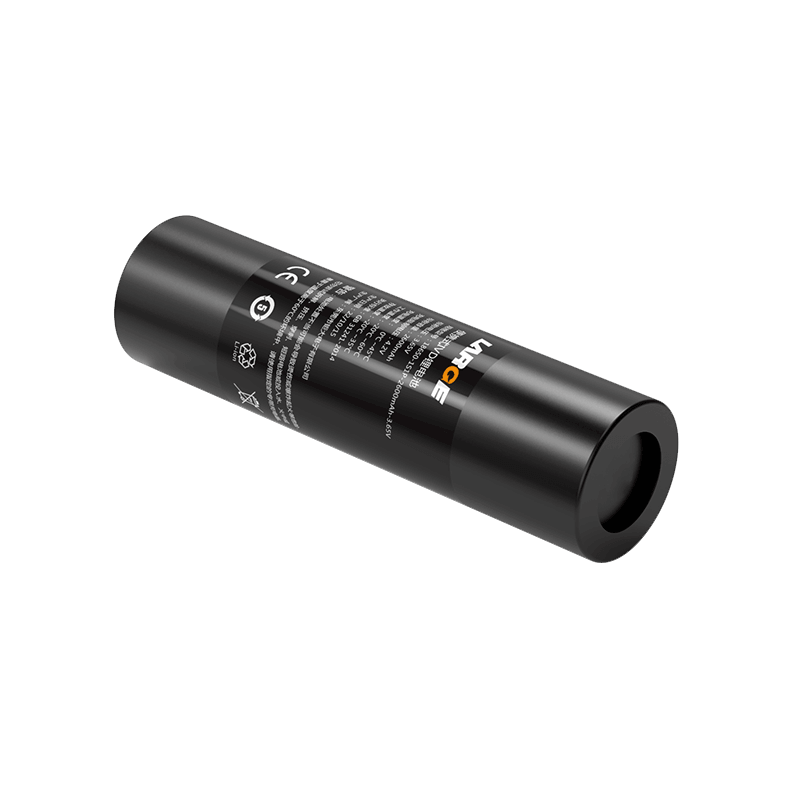

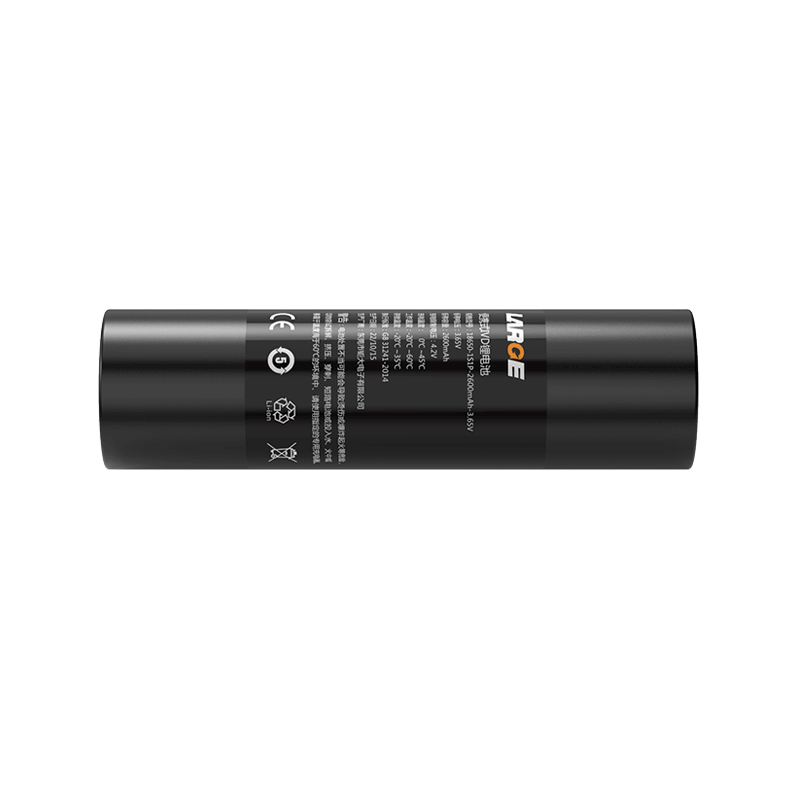

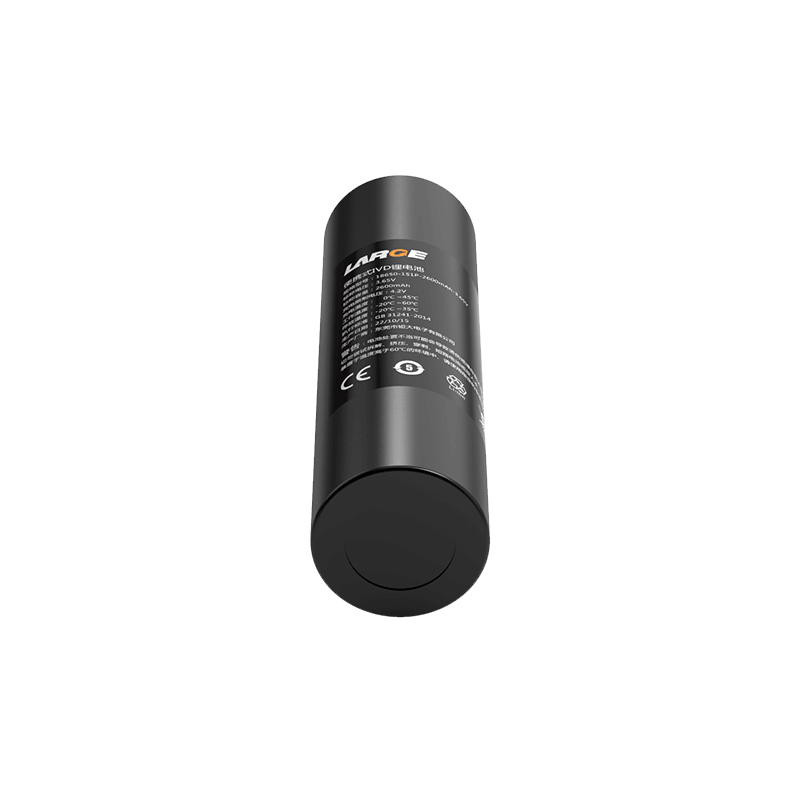

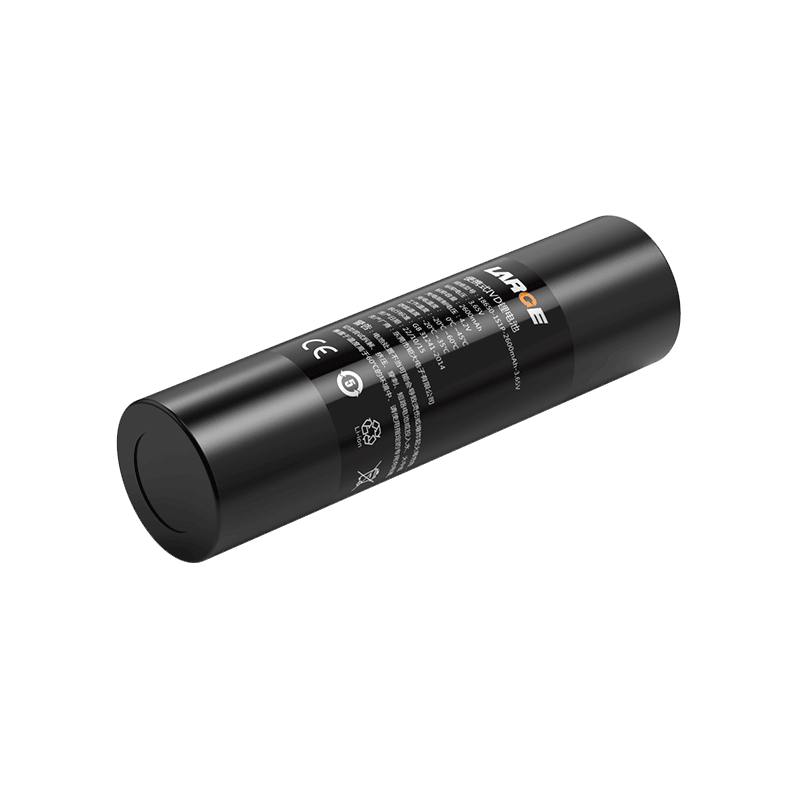

Custom Lithium ion Battery Pack
Product number: 05DQ0065-02
Cell model: 18650-2600mAh-3.65V
Battery specification: 18650-1S1P-2600mAh-3.65V
Product size: 71*19.5mm (Max)
Nominal voltage: 3.65V
Nominal capacity: 2600mAh
Internal resistance of finished product: ≤180mΩ
Charging voltage: 4.2V
Charging current: ≤1.25A
Discharge current: ≤1.25A
Discharge cut-off voltage: 3.0V
Battery weight: 50g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 ~ 35 ° C
Battery package: Blue PVC heat shrinkable film
Output mode: MOLEX plug
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection, etc.
Application: Portable IVD products, portable equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
