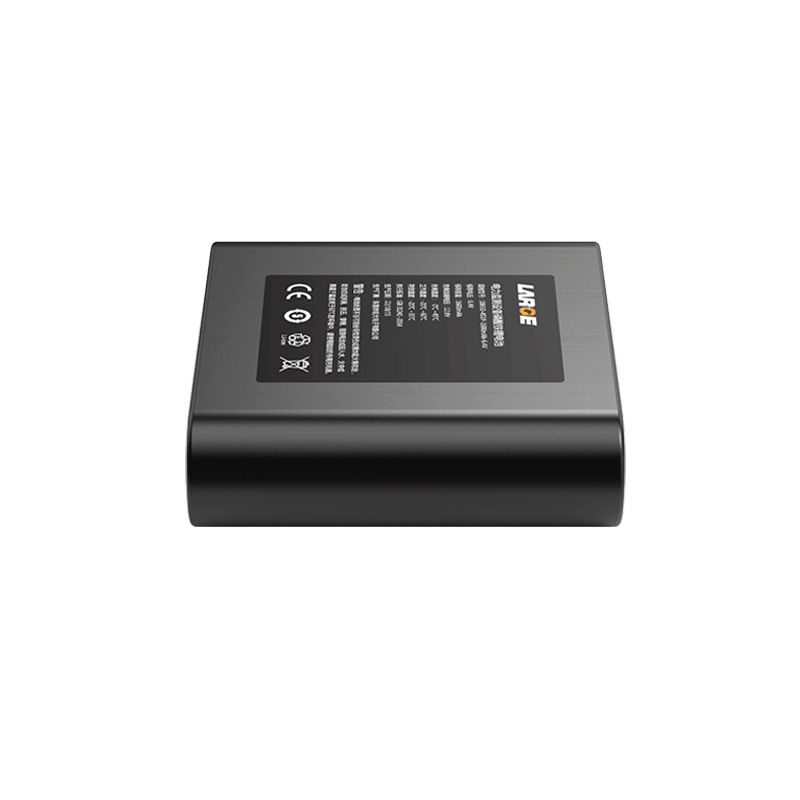

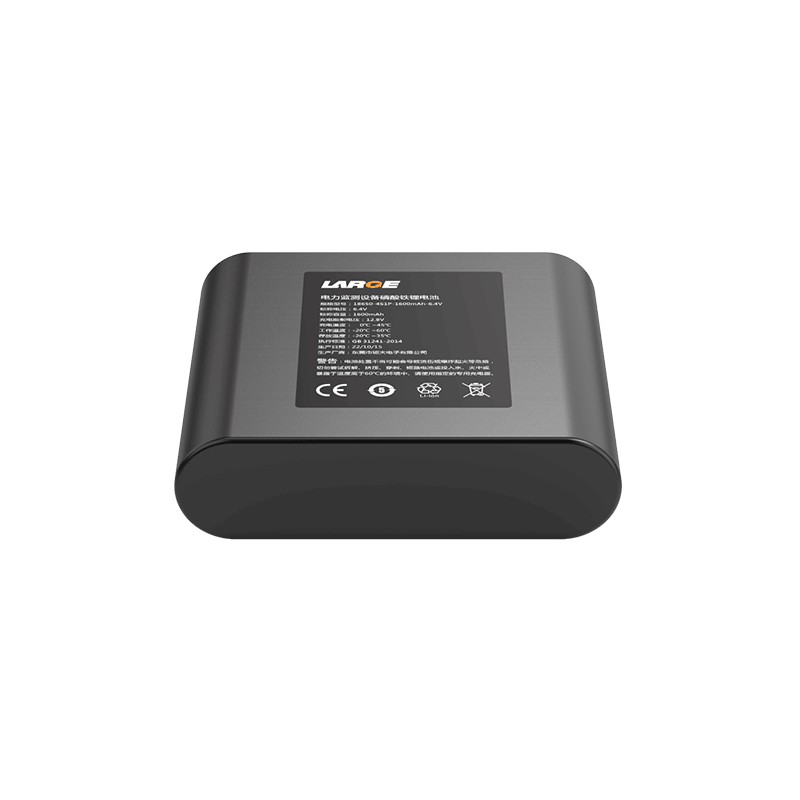

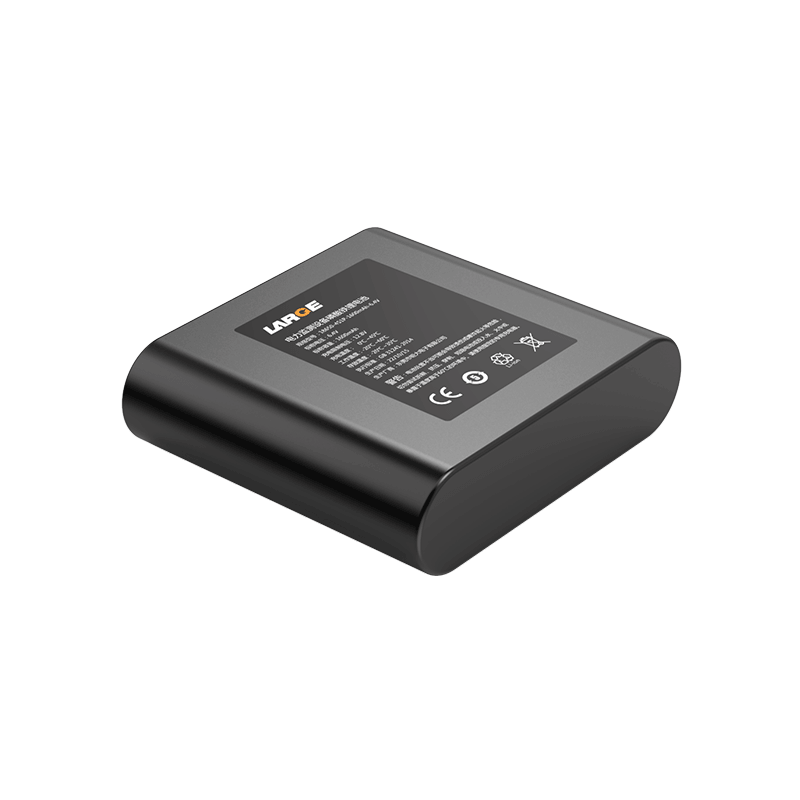

Custom Lithium ion Battery Pack
Product number: 34AQ020-08
Cell model: 18650-1600mAh-3.2V
Battery specification: 18650-4S1P-1600mAh-6.4V
Product size: 75*72*19.5mm (Max)
Nominal voltage: 12.8V
Nominal capacity: 1600mAh
Internal resistance of finished product: ≤220mΩ
Charging voltage: 14.4V
Charging current: ≤0.7A
Discharge current: ≤4.0A
Discharge cut-off voltage: 10.0V
Battery weight: 200g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35 ° C
Battery package: Blue PVC heat shrinkable film
Output mode: national standard wire
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection, etc
Application: Power monitor, security, instrumentation
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
