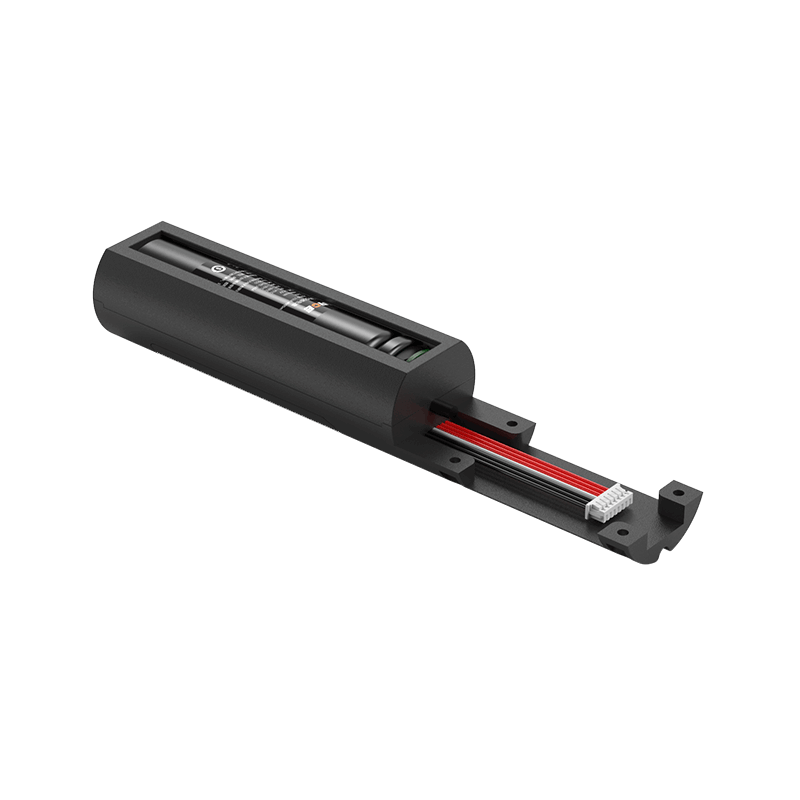

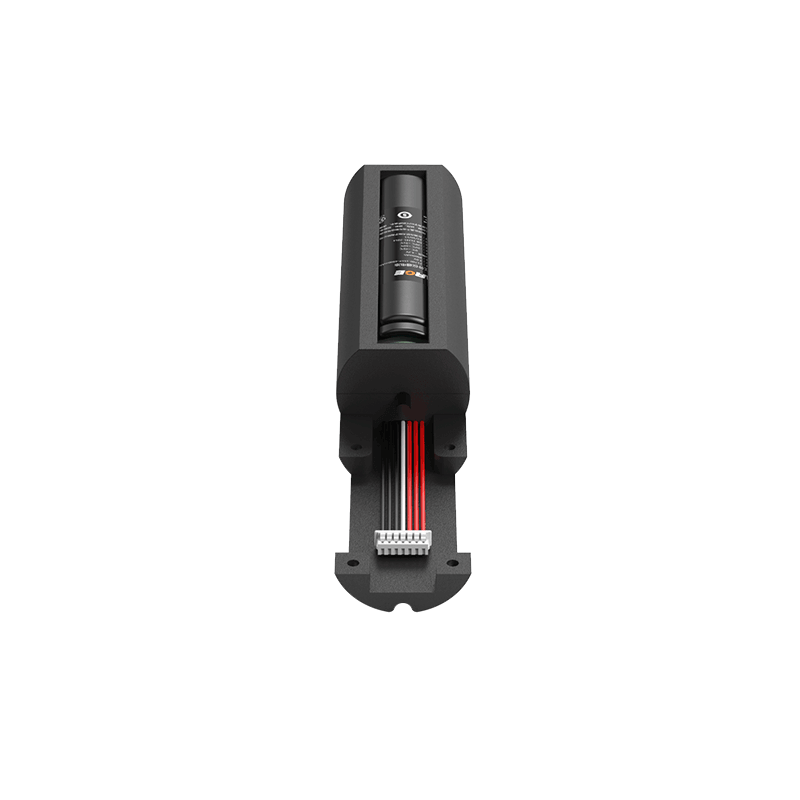

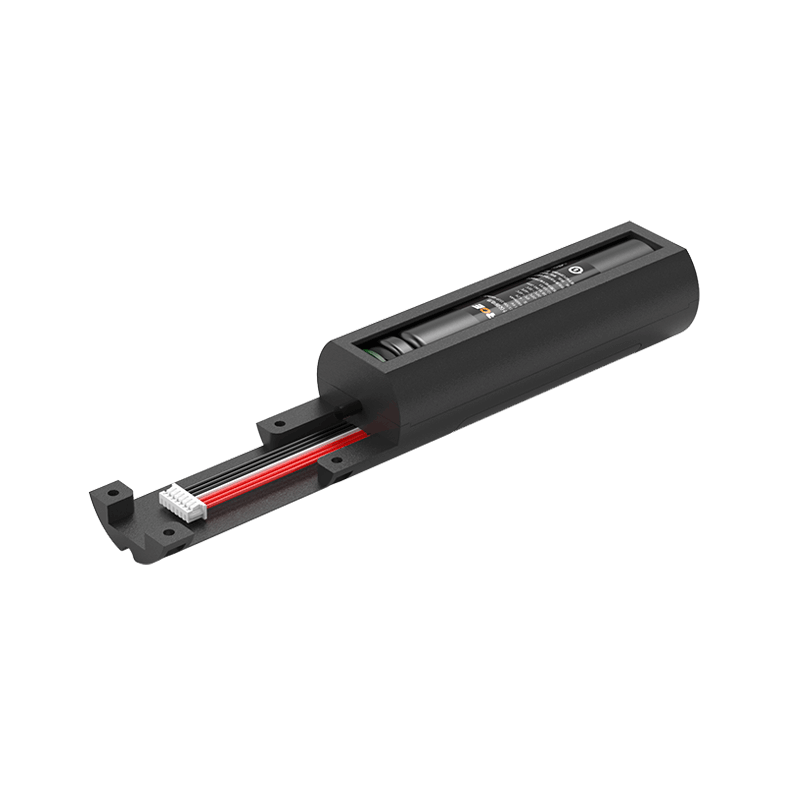

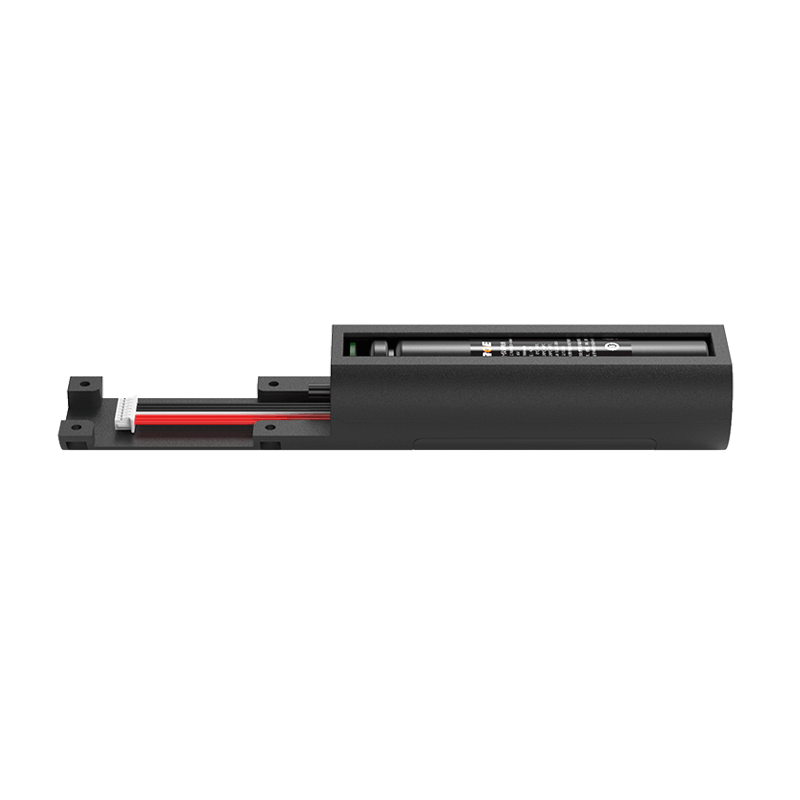

Custom Lithium ion Battery Pack
Product number: 36AQ0288-03
Cell model: 21700-4900mAh-3.6V
Battery specification: 21700-1S1P-4900mAh-3.6V
Product size: 138*82*24mm
Nominal voltage: 3.6V
Nominal capacity: 4900mAh
Internal resistance of finished product: ≤100mΩ
Charging voltage: 4.2V
Charging current: ≤2.3A
Discharge current: ≤2.3A
Discharge cut-off voltage: 2.5V
Battery weight: 90g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35 ° C
Battery case: ABS+PC case
Output mode: MOLEX plug
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.
Applications: night vision equipment, infrared equipment, portable equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
