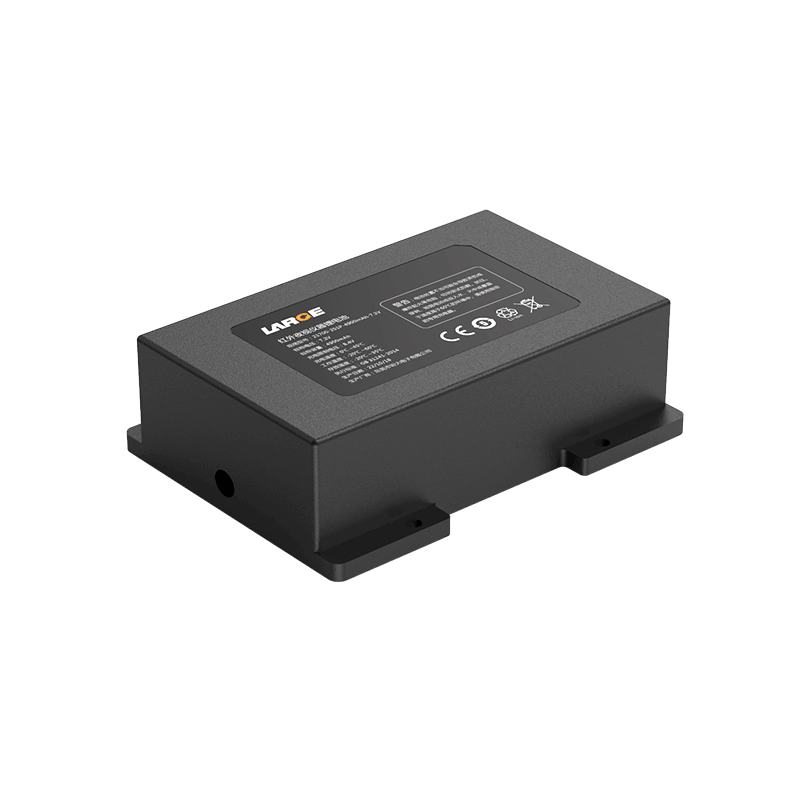

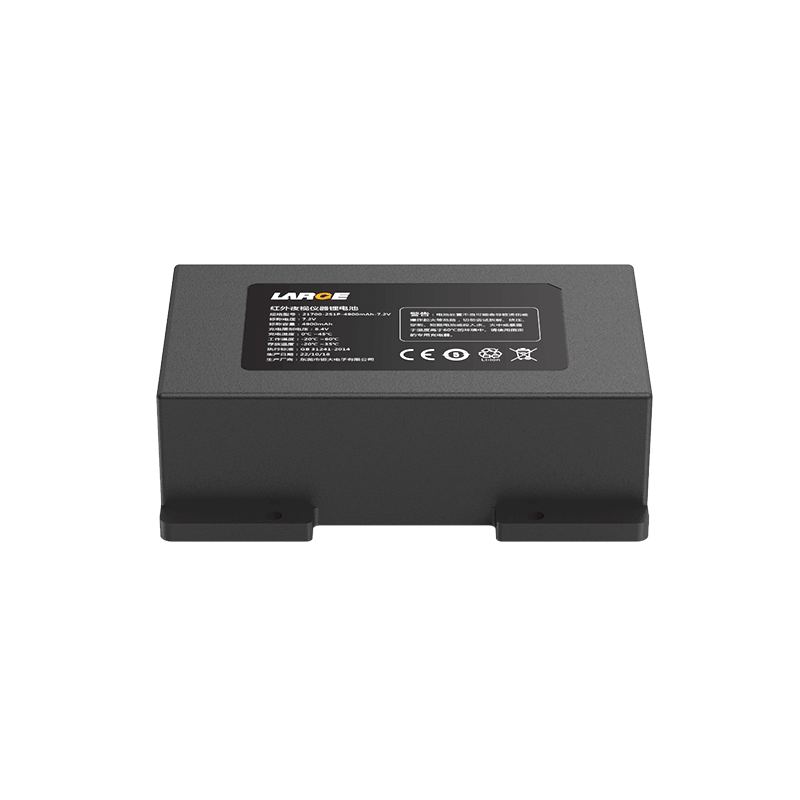

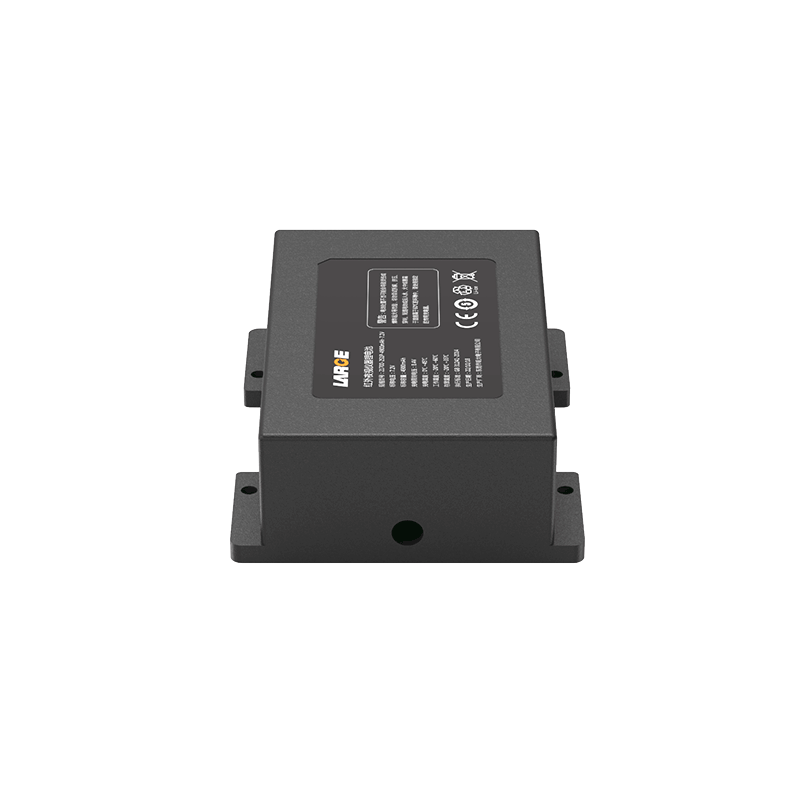

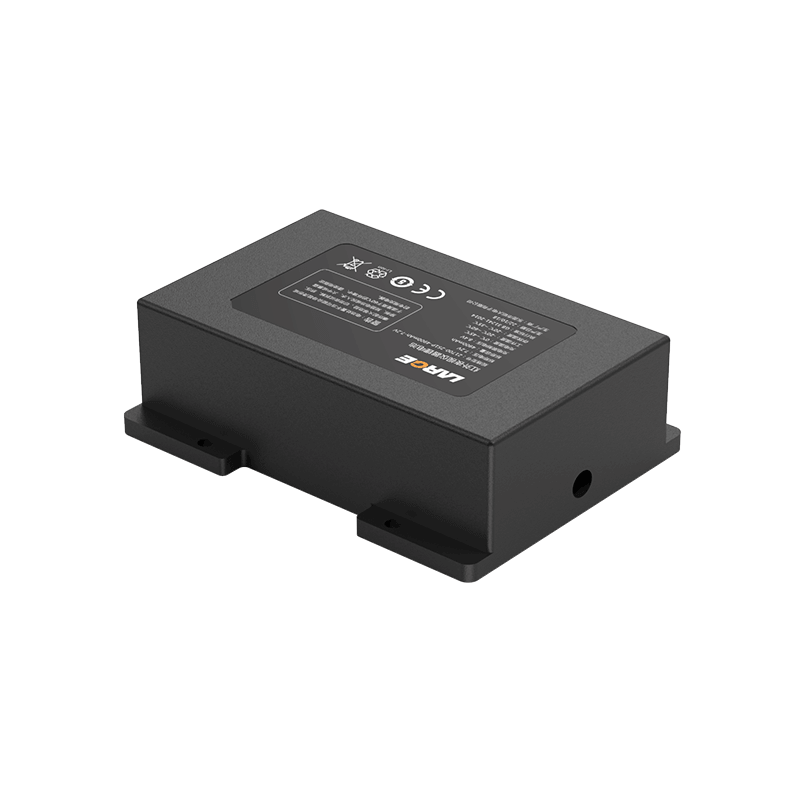

21700 7.2V 4900mAh Lithium-ion Battery for Infrared Night Vision Instrument

Customization | Free Battery Solution

Product Detail

Product number: 36AQ0288-02

Cell model: 21700-4900mAh-3.6V

Battery specification: 21700-2S1P-4900mAh-7.2V

Product size: 74.8*51*25mm

Nominal voltage: 7.2V

Nominal capacity: 4900mAh

Internal resistance of finished product: ≤200mΩ

Charging voltage: 8.4V

Charging current: ≤2.3A

Discharge current: ≤2.3A

Discharge cut-off voltage: 5.0V

Battery weight: 190g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35 ° C

Battery case: ABS+PC case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: night vision equipment, infrared equipment, portable equipment

Product Feature

1.ABS + PC case increases the reliability of the battery;

2.Connector plug output: MOLEX plug output mode increases conductive reliability;

3.Data communications management: Use TI - SMBus software management chip, SMBus communication data transmission, accurate temperature control, so as to eliminate potential safety problems.

4.Battery management: Adopt special lithium battery protection chip with good stability, high precision monitoring, precision control, ESD protection, so as to eliminate safety hidden trouble

5.The battery has good safety, nice discharge performance and long cycle life.

6.The battery has long cycle life, according with low carbon, energy saving, environmental protection value concept;
