Product Detail

Product number: 01DQ0023-57

Cell model: 26650-3600mAh-3.2V

Battery specification: 26650-15S28P-100Ah-48V

Product size: 470×430×277mm (Max)

Nominal voltage: 48V

Nominal capacity: 100Ah

Finished internal resistance: ≤150mΩ

Charging voltage: 54V

Charging current: ≤47A

Discharge current: ≤100A

Discharge cut-off voltage: 37.5V

Battery weight: 50kg

Charging temperature: 0~45℃

Discharge temperature: -20~60℃

Storage temperature: -20~35℃

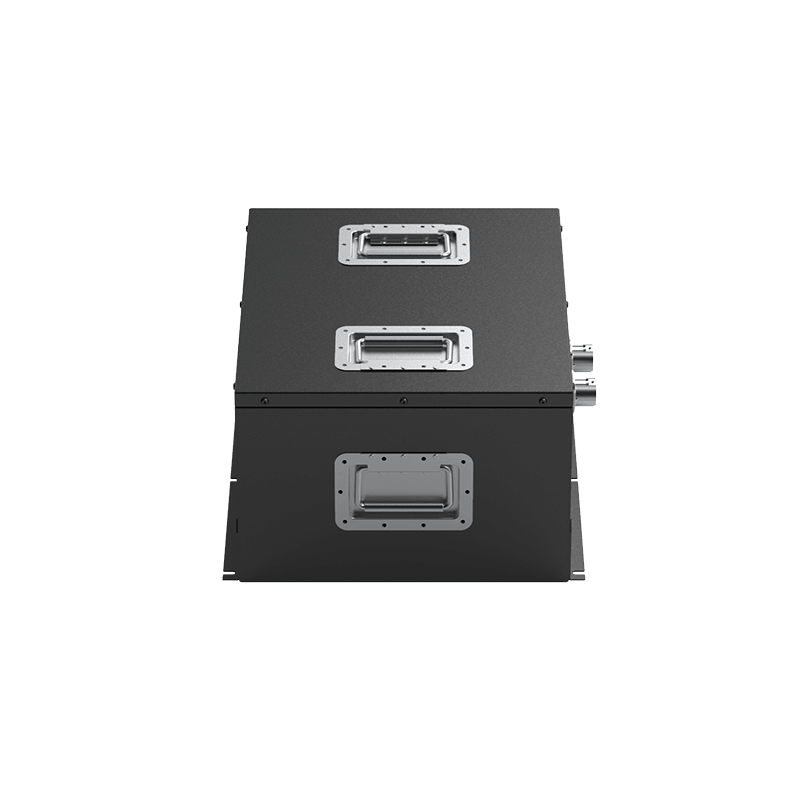

Battery shell: aluminum alloy shell

Lithium battery protection: short-circuit protection, overcharge protection, over-discharge protection, over-temperature protection, over-current protection, ESD protection, etc.

Application: energy storage, AGV, robot, logistics vehicle, etc.


Product Features:

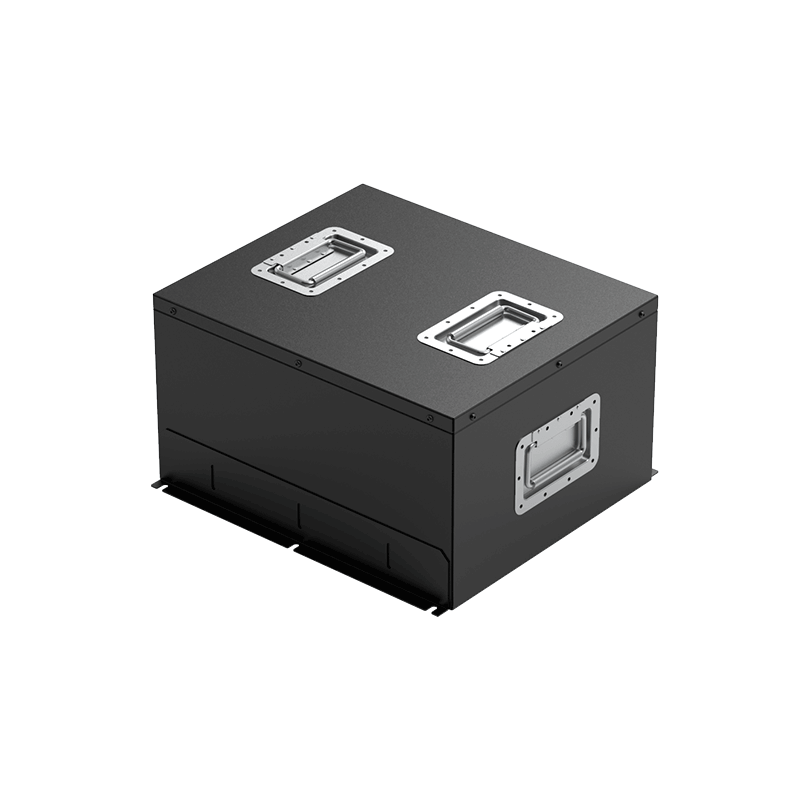

1.Aluminum alloy casing increases the reliability and firmness of the battery.

2.It has positioning holes and portable handles, which is simple,reliable and easy to install.

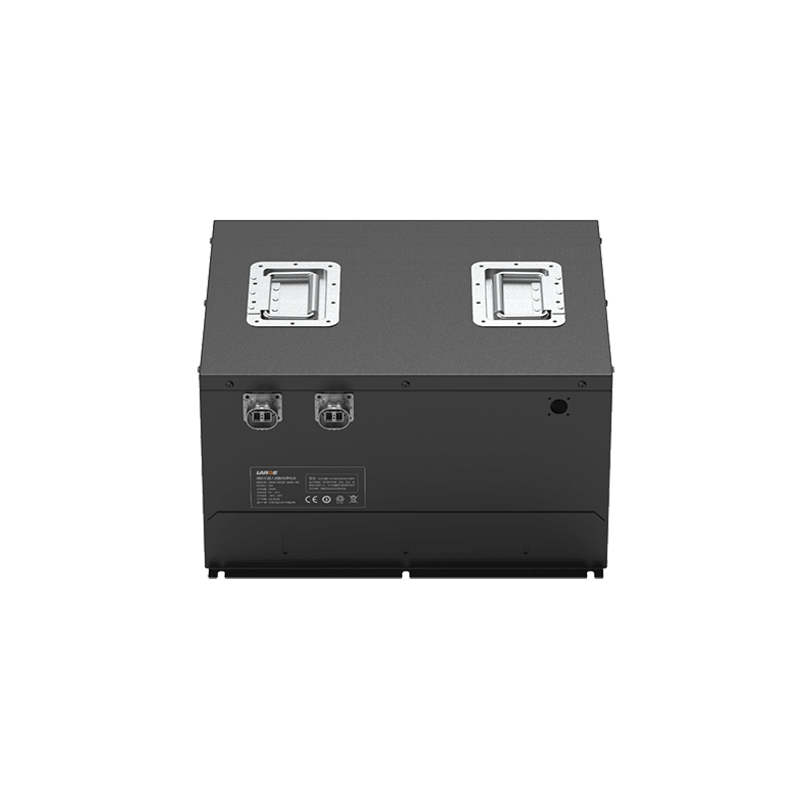

3.Output terminal: Adopt the aviation plug output mode to increase the reliability of conduction;

4.Battery protection management: Use a dedicated lithium battery protection chip with high stability, high-precision monitoring, precise control,temperature protection,so as to minimize potential safety hazards.

5.Data communication management: Use CAN communication for accurate data transmission, precise temperature control, real-time battery status monitoring and control to eliminate the potential safety hazards.

6.It can be equipped with a battery switch to control the discharge output.

7.BMS communication uses optocoupler isolation. The product supports CAN bus for optional communication for customers, and the communication baud rate is 250K.

8.The battery pack has good safety, nice discharge performance and long cycle life;

9.The battery pack has long cycle life, in line with the concept of low carbon, energy saving, and environmental protection;
