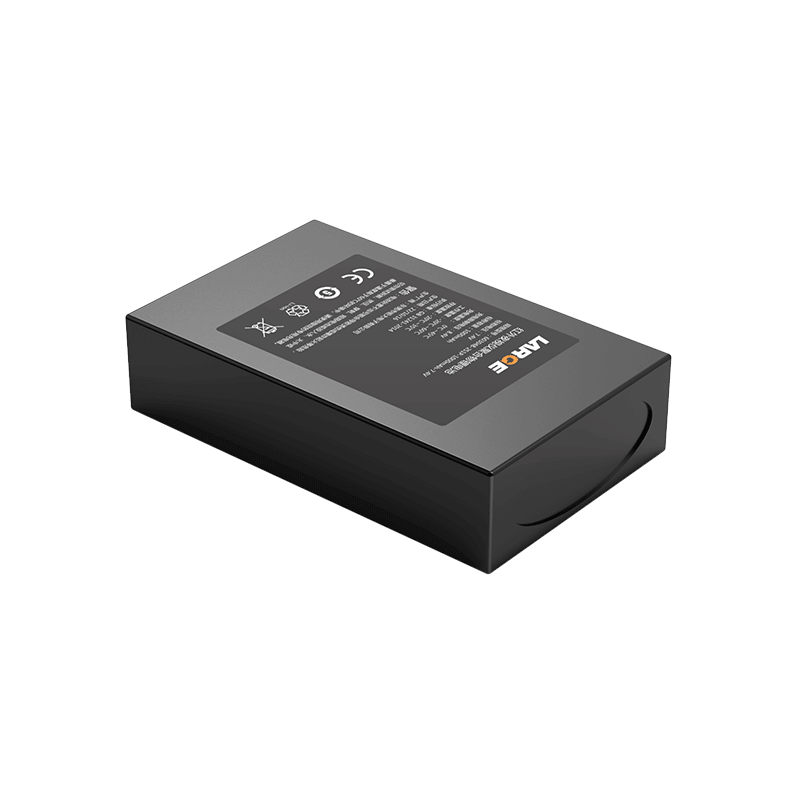

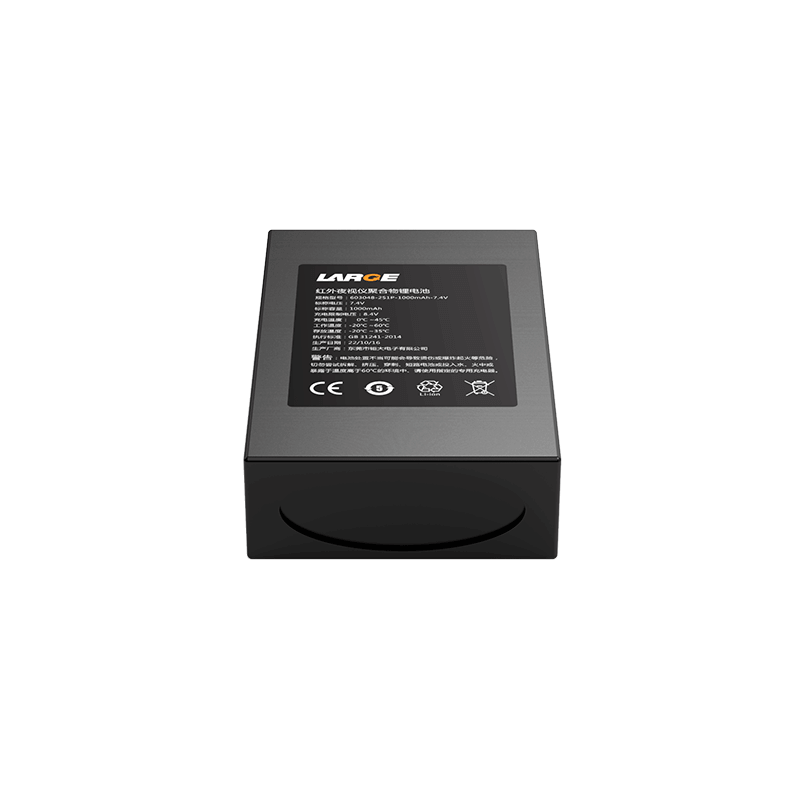

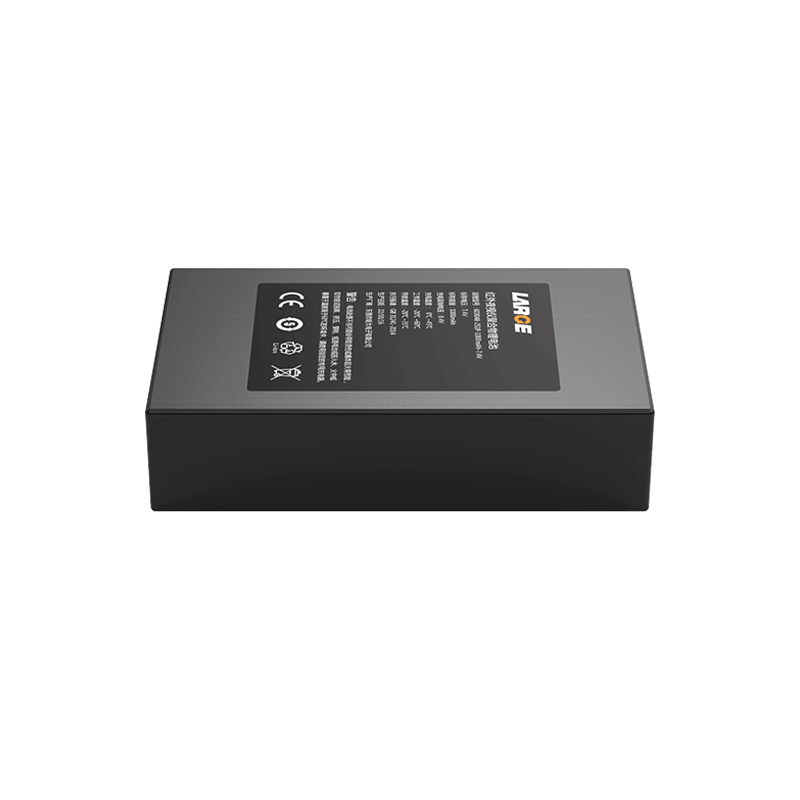

603048 3.7V 1000mAh Lithium Polymer Battery for Infrared Night Vision Device

Customization | Free Battery Solution

Product Detail

Product number: 36AQ517-24

Cell model: 603048-1000mAh-3.7V

Battery specification: 603048-2S1P-1000mAh-7.4V

Product size: 52*32*12.5mm

Nominal voltage: 7.4V

Nominal capacity: 1000mAh

Internal resistance of finished product: ≤160mΩ

Charging voltage: 8.4V

Charging current: ≤0.5A

Discharge current: ≤1.0A

Discharge cut-off voltage: 6.0V

Battery weight: 30g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ° C

Battery package: blue PVC package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: infrared night vision equipment, portable test equipment

Product Features:

1.The package is simple,reliable, and easy to install.

2.Connector plug output: Use gold plated connector output mode to increase conductive reliability;

3.Use FPC(Flexible Flat Cable) for patch connector, which is easy to plug.

4.Battery protection management: Use imported seiko protection chip with high stability, nice precision monitoring, precision control, so as to eliminate safety hidden trouble.

5.The battery has good safety, nice discharge performance and long cycle life.

6.The battery has long cycle life, in line with low carbon, energy saving, environmental protection value concept;
