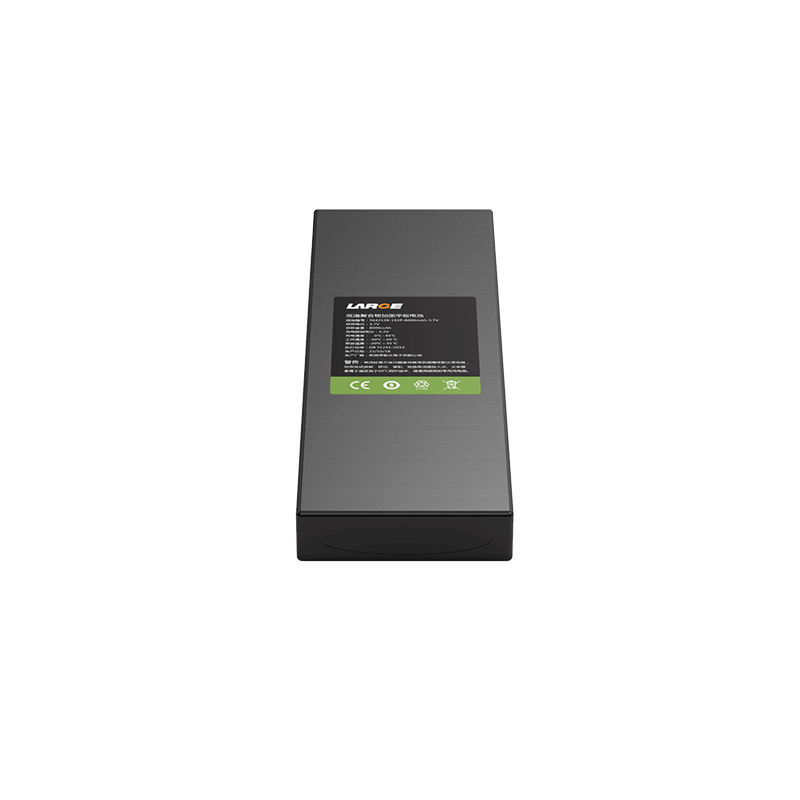

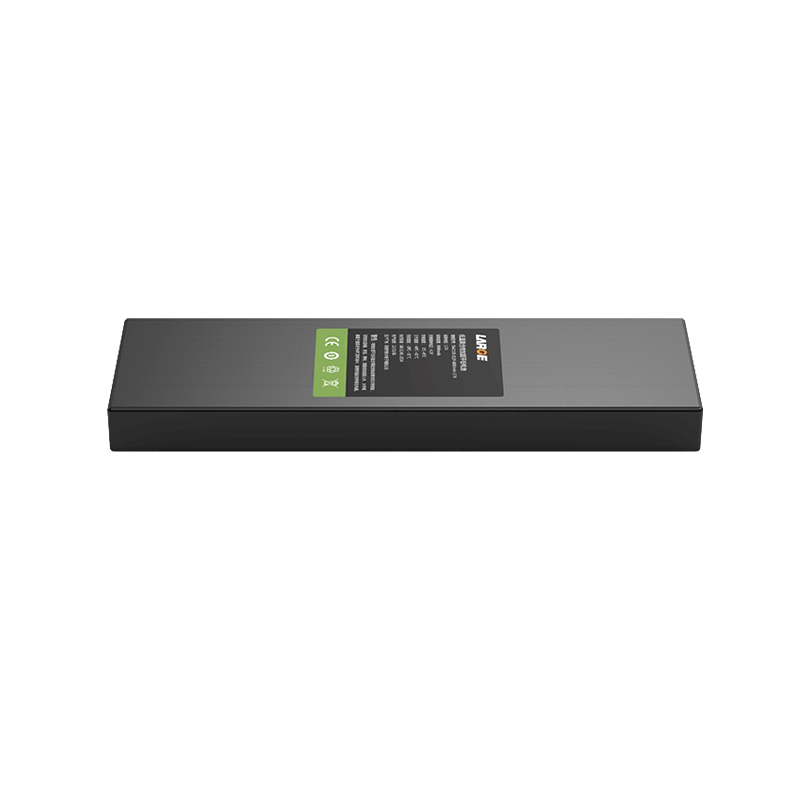

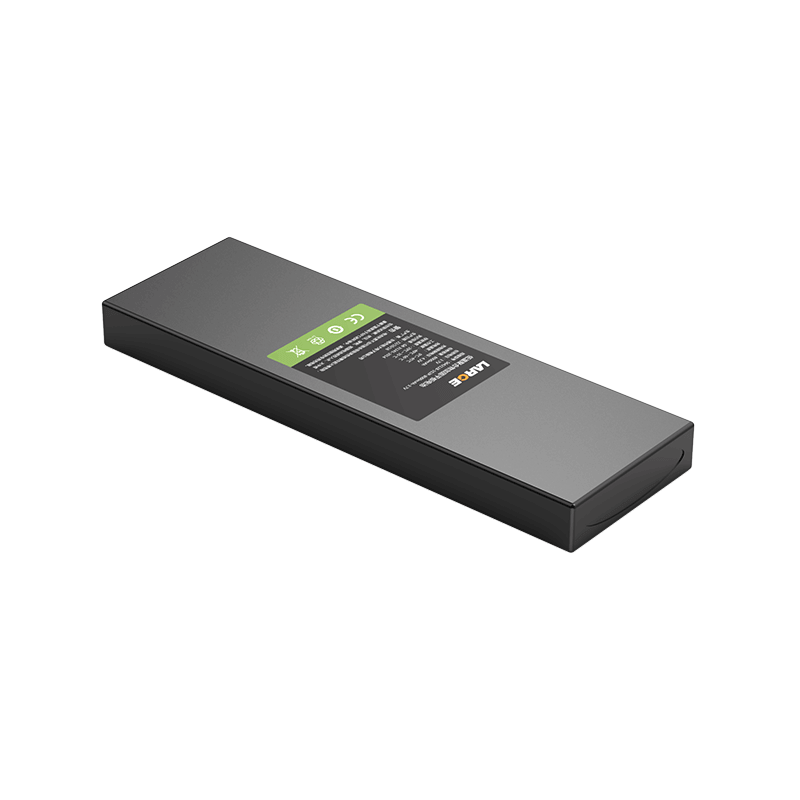

5642128 3.7V 8000mAh Low Temperature Polymer Reinforced Laptop Battery

Product number: 35AQ614-02

Cell model: 5642128-4000mAh-3.7V

Battery specification: 5642128-1S2P-8000mAh-3.7V

Product size: 135*43*12mm

Nominal voltage: 3.7V

Nominal capacity: 8000mAh

Internal resistance of finished product: ≤180mΩ

Charging voltage: 4.2V

Charging current: ≤4.0A

Discharge current: ≤8.0A

Discharge cut-off voltage: 2.5V

Battery weight: 360g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 ~ 35 ° C

Battery package: Blue PVC heat shrinkable film

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection, etc.

Application: Hardening laptop, communication devices, portable communication devices

Product features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to install;

2.Connector plug output: Use the JST plug output mode to increase conductive reliability;

3.-40 ℃ low temperature - discharge lithium batteries;

4.Battery protection and control: Adopt special lithium battery protection chip with nice stability, high precision monitoring, precision control,temperature protection and other functions, to eliminate safety risks;

4.Data communications management: Use TI - SMBus software management chip, SMBus communication data transmission precision, real-time condition monitoring control battery.

5.The battery has good safety and nice low temperature discharge performance, support - 40 ℃ discharge, the discharge current is 80% or more;

6.The battery has good safety, nice discharge performance and long cycle life.

7.The battery has long cycle life, according with low carbon, energy saving, environmental protection value concept;
