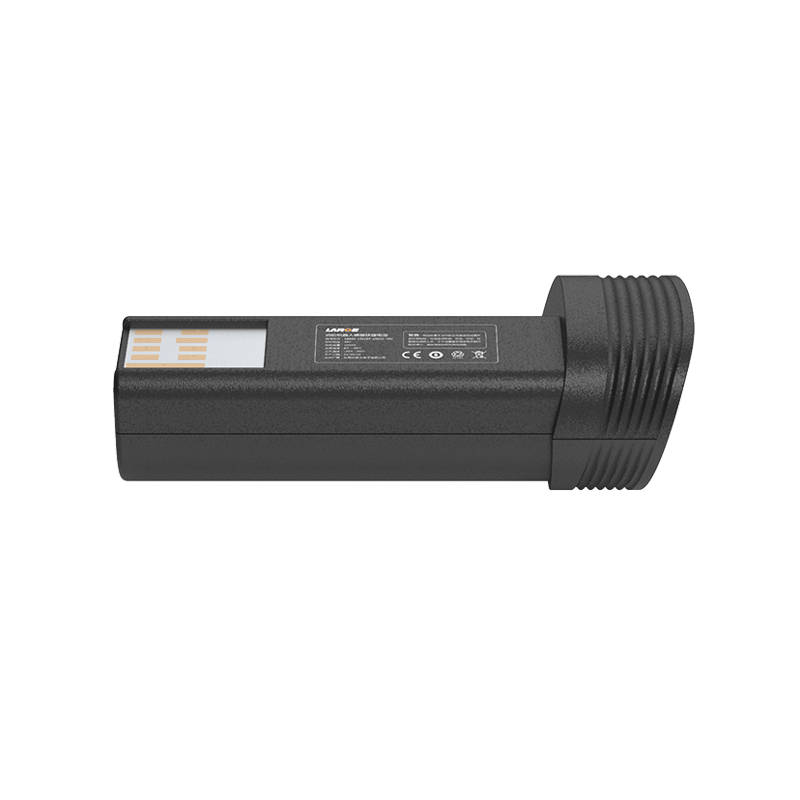

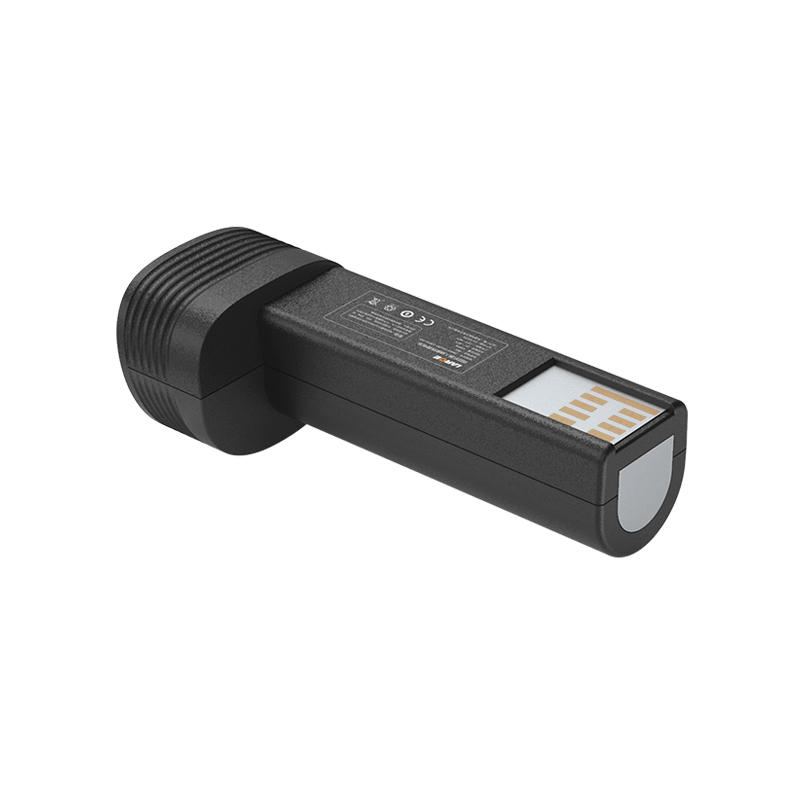

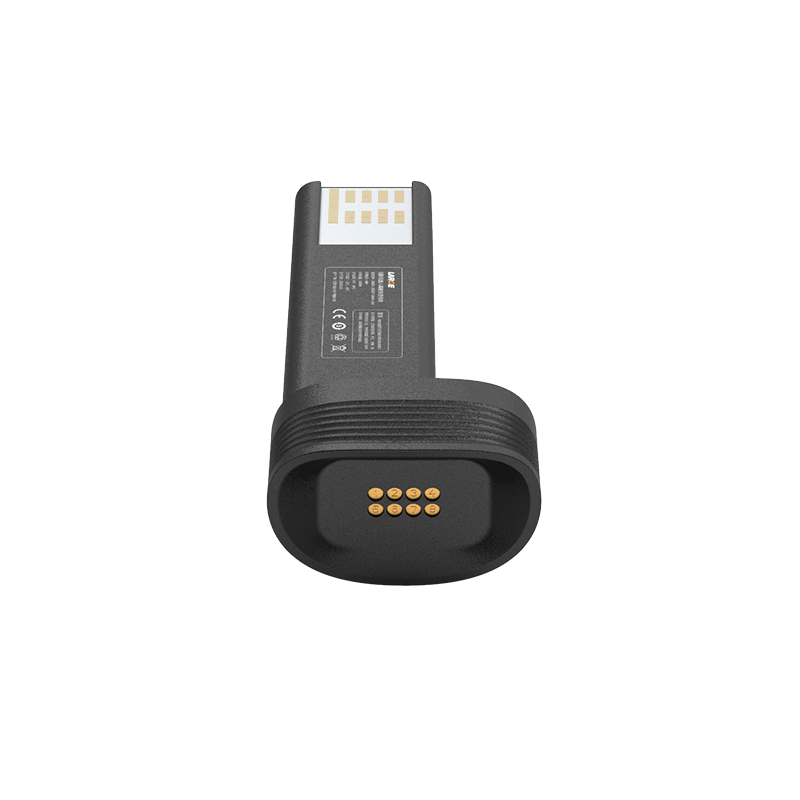

18650 3.6V 3350mAh Lithium-ion Battery for Medical Equipment

Product number: 08DQ0068-01

Cell model: 18650/3350mAh/3.6V

Battery specification: 18650/3350mAh/3.6V

Product size: length (84.3±0.2)mm × width (36.75±0.2)mm ×(27±0.2)mm

Nominal voltage: 3.6V

Nominal capacity: 3.35Ah

Charging voltage: 4.2V

Charging current: ≤1.7A

Discharge current: ≤4A

Discharge cut-off voltage: 2.5V

Internal resistance of finished product: ≤150mΩ

Battery weight: 90g

Charging temperature: 0 ~ 45℃

Discharge temperature: 0 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -10 ~ 35℃(less than 3 months); -10~+25℃ (less than 12 months)

Battery package: plastic case

Output mode: national standard UL conductor

Communication protocol: SMBUS

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Applications: Aoralscan4 Battery (Medical)
