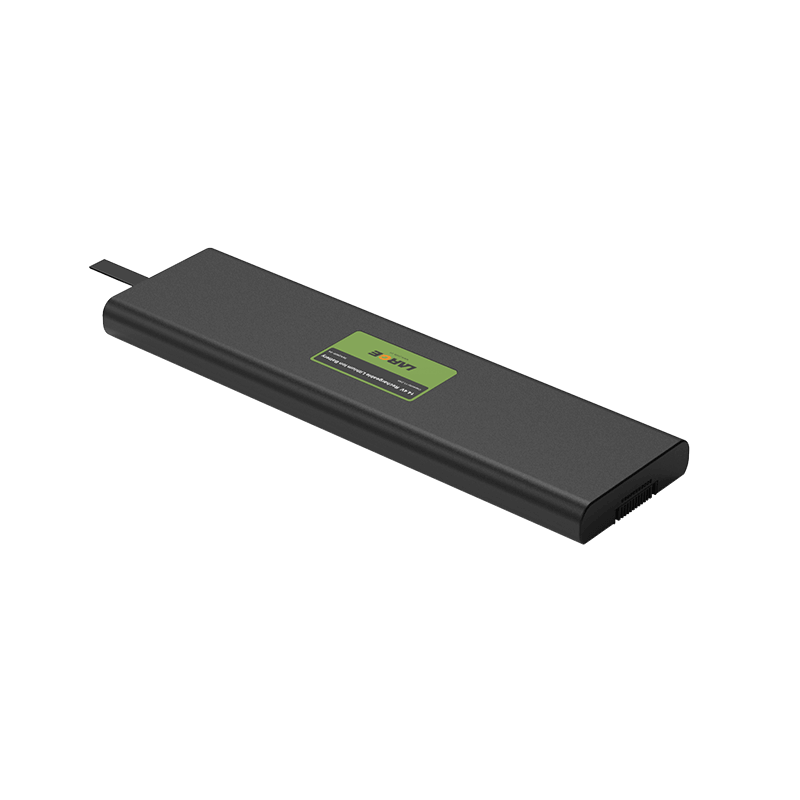

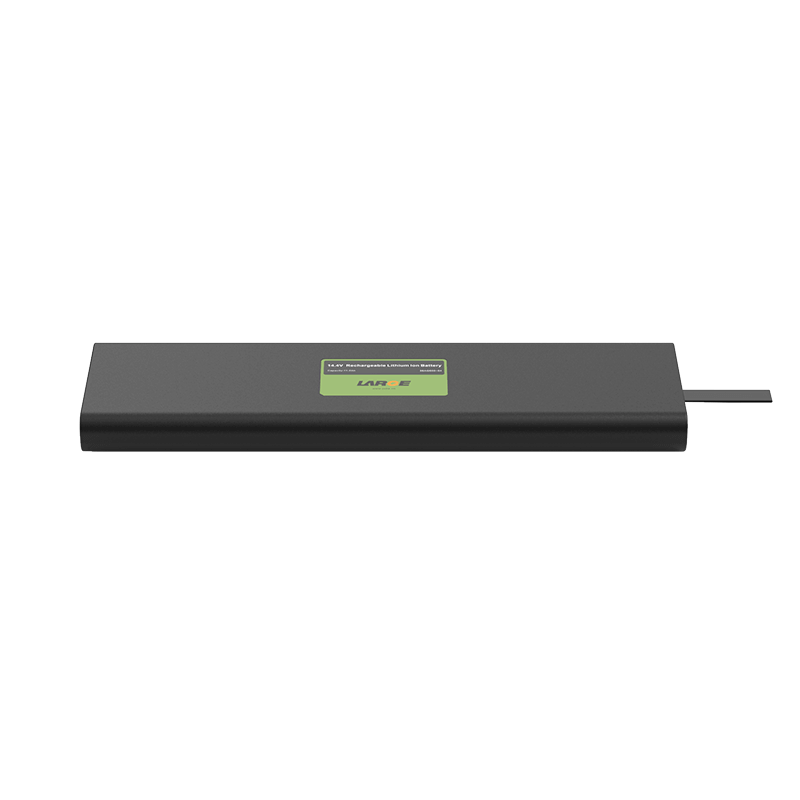

Custom Lithium ion Battery Pack
Product number: 36AQ600-04
Cell model: INR18650L-2800
Battery specifications: 18650-4S4P-14.4V-11.2Ah
Product size: 280x78.6x21.3mm (L×W×H)
Nominal voltage: 14.4V
Nominal capacity: 11.2Ah
Charging voltage: 16.8V
Charging current: ≤15A
Discharge current: ≤10.6A
Discharge cut-off voltage: 10V
Internal resistance of finished product: ≤200mΩ
Battery weight: ≤910g
Charging temperature: 0 ~ 55℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -40~+45℃ (less than 1 month) -20 ~ 35℃(less than 3 months); -20~+25℃ (less than 12 months)
Battery package: plastic case
Communication protocol: SMBUS
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: Hardened laptop
