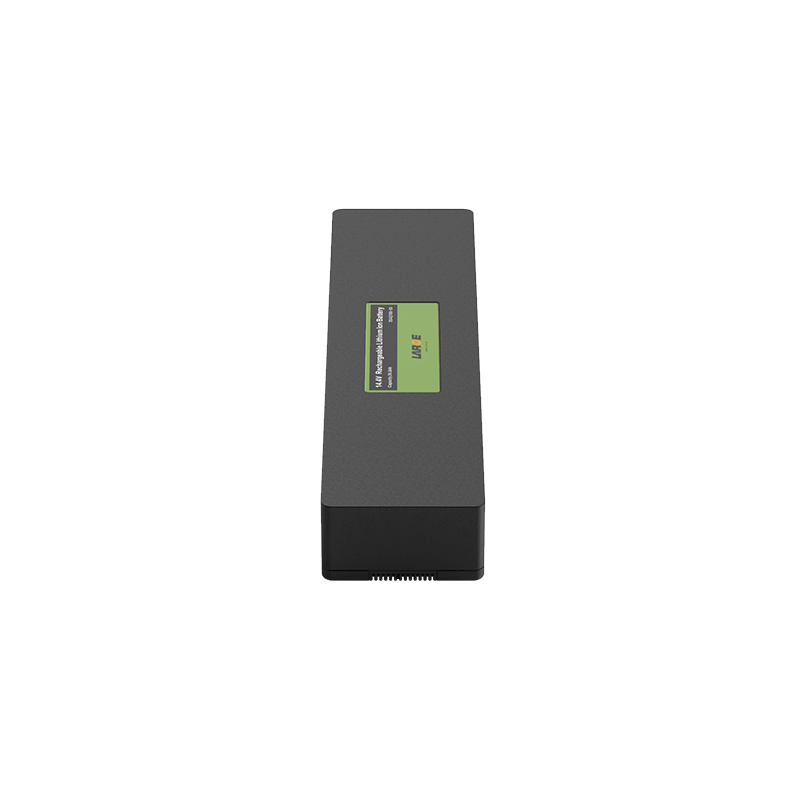

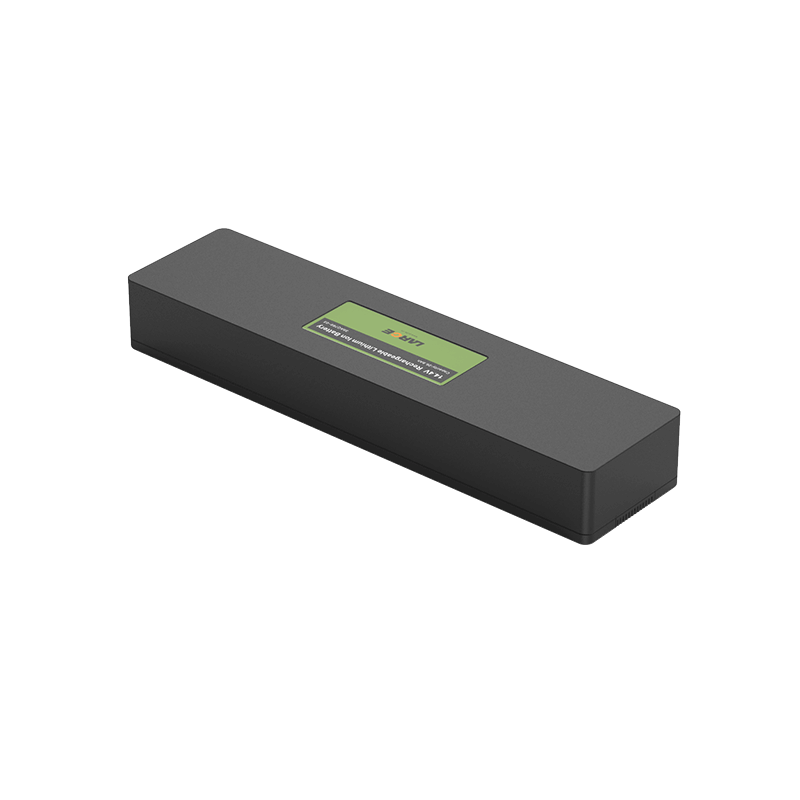

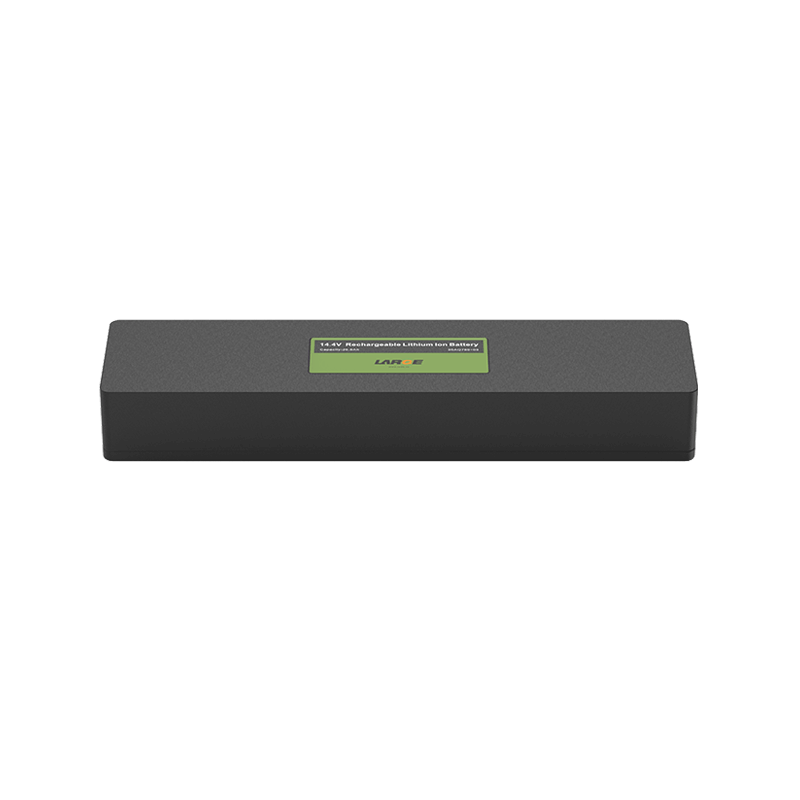

Custom Lithium ion Battery Pack
Product umber: 35AQ789-03
Battery model: INR18650L-3350
Battery specifications: 18650-4S8P-14.4V-26.8Ah
Product size :330×83×45mm
Nominal voltage: 14.4V
Nominal capacity: 26.8Ah
Charging voltage: 16.8V
Charging current: ≤10A
Discharge current: ≤20A
Discharge cut-off voltage: 10V
Finished internal resistance: ≤180mΩ
Battery weight: ≤2Kg
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 55℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)
Battery package: plastic case
Communication protocol: SMBUS
Output mode: national standard UL wire
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.
Application: Equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
