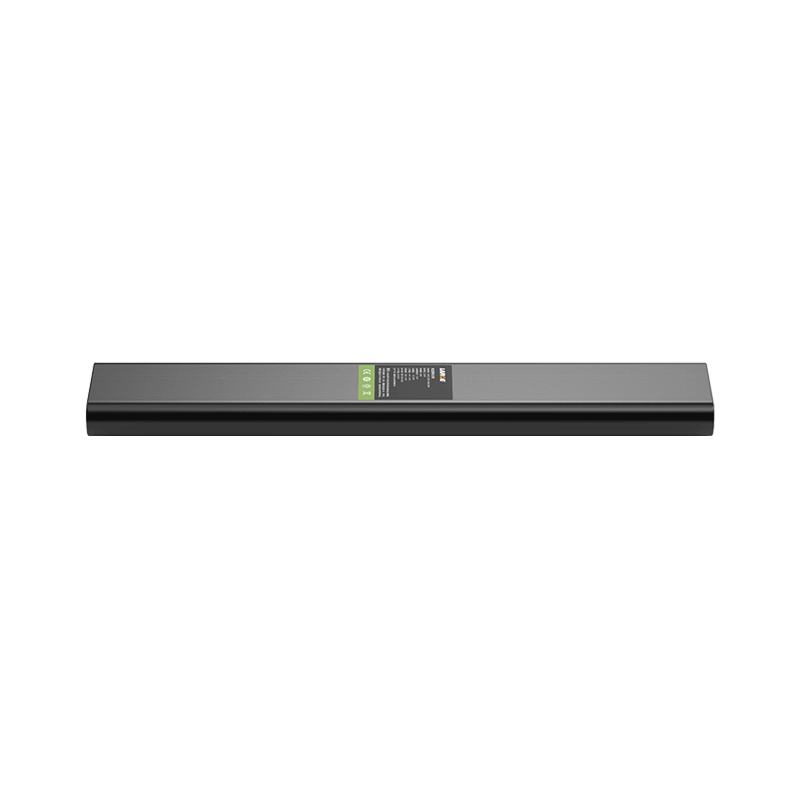

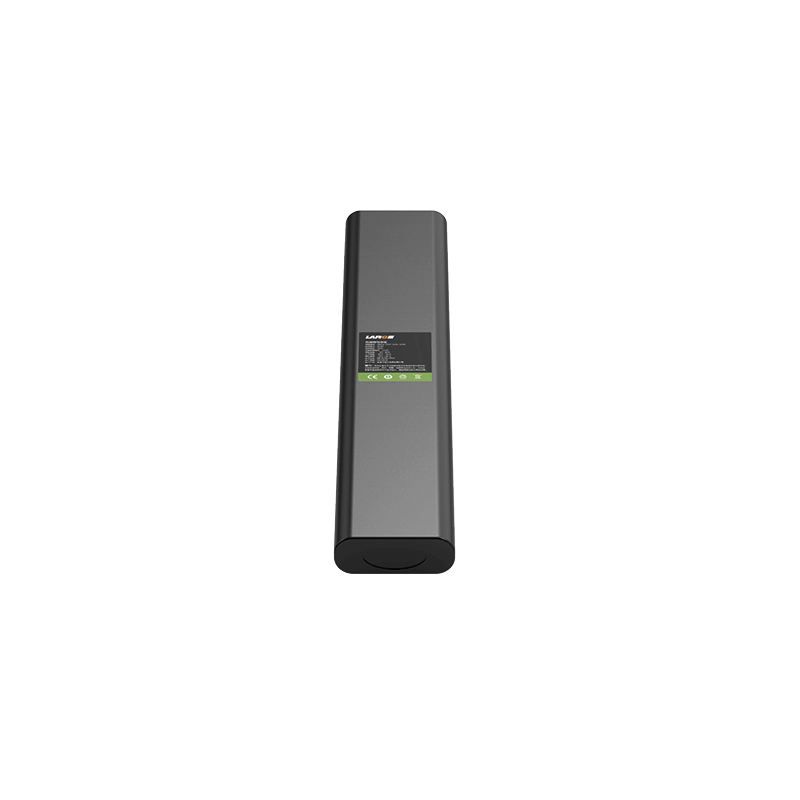

Custom Lithium ion Battery Pack
Product number: 36AQ006-01
Battery model: 18650L-3350mAh-3.6V
Battery specification: 18650-3S5P-16Ah-10.8V
Product size: 388×57×21mm
Nominal voltage: 10.8V
Nominal capacity: 16.75Ah
Charging voltage: 12.6V
Charging current: 8A (0.5C)
Discharge current: 8A (0.5C)
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤150mΩ
Battery weight: ≤1kg
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)
Battery package: PVC heat seal process
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.
Application: Laptop battery
Product Features
1.PVC heat sealing process is simple and reliable, and is easy to install.
2.SMBUS Communication protocol
3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;
4.Battery protection management: Use imported well-known brand protection chip with high stability, nice precision monitoring, precise control, to eliminate security risks;
5.The battery pack has good safety, nice discharge performance and long cycle life;
6.The battery pack has a high cycle life, which conforms to the value concept of low carbon, energy saving and environmental protection.
