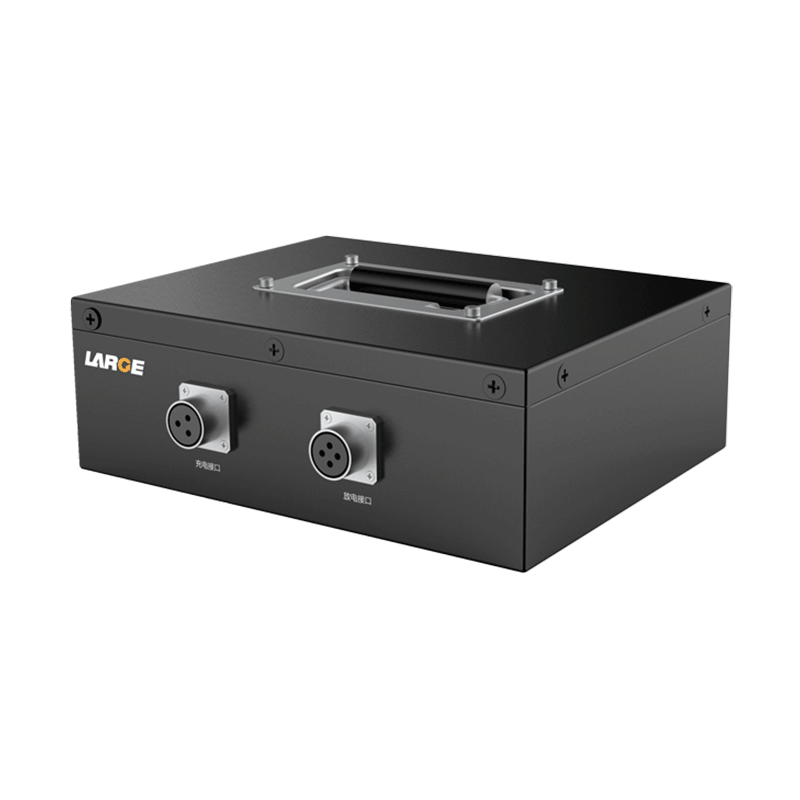

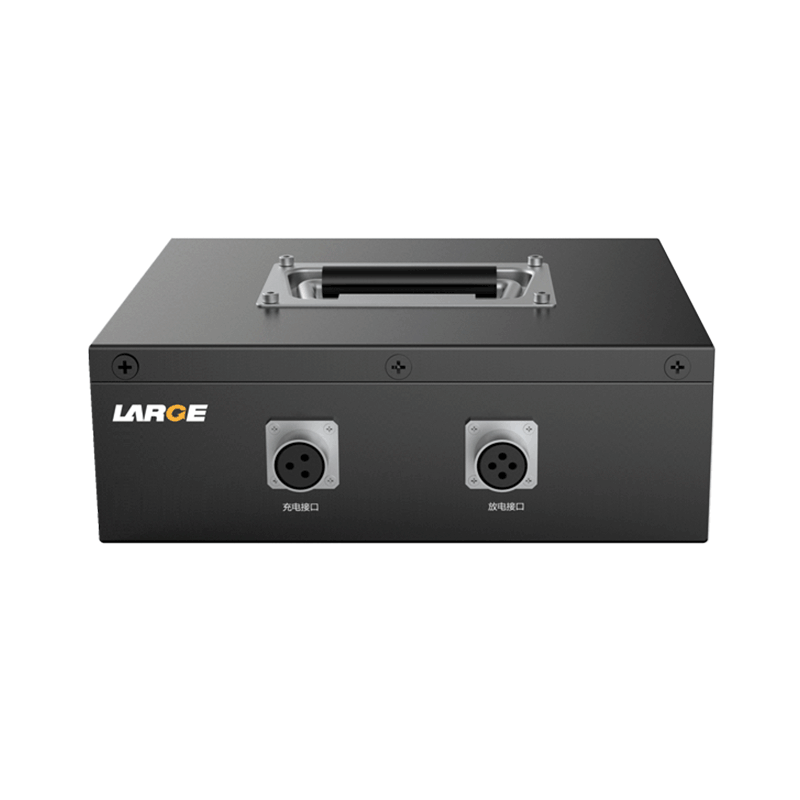

Custom Lithium ion Battery Pack
Product number: 04EQ0100-01
Cell model：26650/3.2V/3.3Ah
Battery specification: 26650/8S6P/25.6V/20Ah
Nominal voltage：25.6V
Nominal capacity：20Ah
Charging voltage: 29.2V
Charging current: ≤10A
Discharging current: 10A
Instant discharging current: 20A
End-off voltage: 20V
Internal resistance: ≤200m?
Battery weight: 6kg
Product dimension: 250×200×85（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～40 ℃
Battery case: cold rolling and metal plate
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, etc.
Application field: photo-voltaic controller, photovoltaic auxiliary product
Product features
1. Dustproof and shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of dustproof and shock-resistant.
2. Reliable connection: apply special connector, which is efficient, safe and reliable.
3. Charge automatically: charge automatically when the voltage decreases to 80%.
4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
