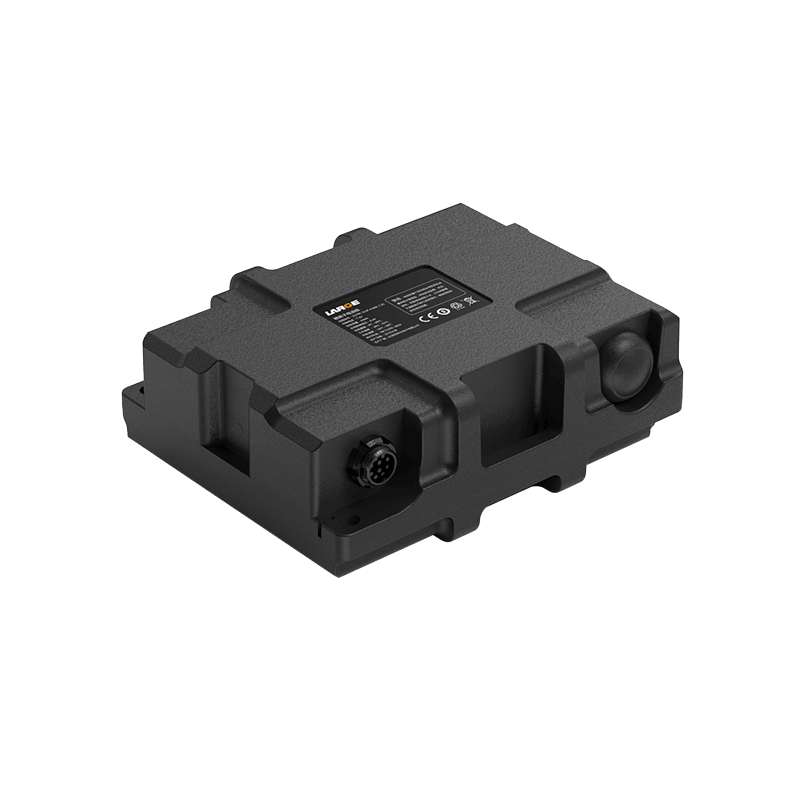

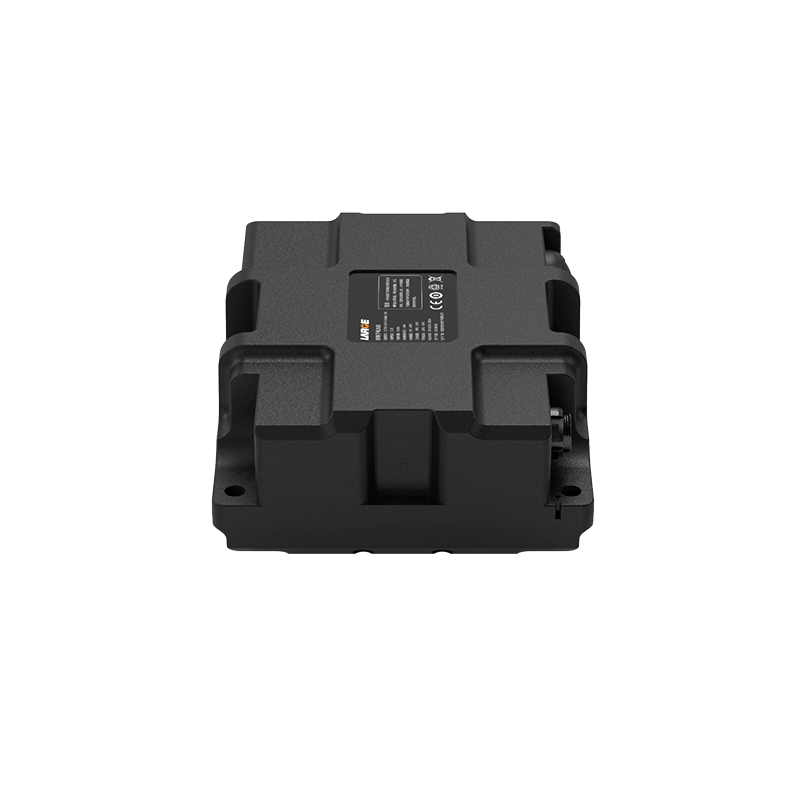

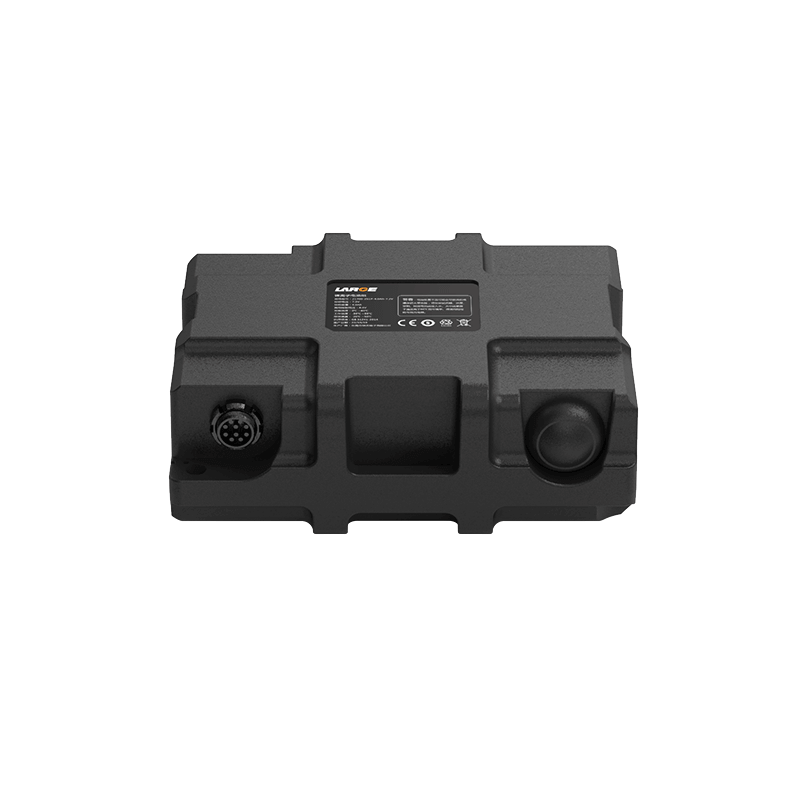

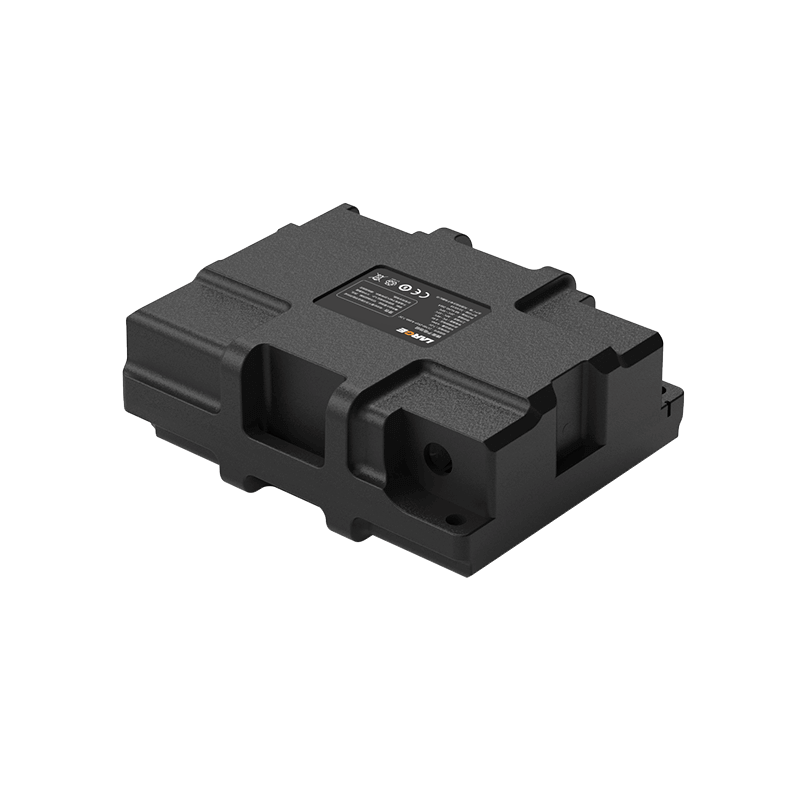

Custom Lithium ion Battery Pack
Product number: 36AQ517-19
Battery model: 21700-4000mAh-3.6V
Battery specification: 21700-2S1P-4.0Ah-7.2V
Product size: 103.2mm×83.3mm×38mm
Nominal capacity: 4Ah
Full charging voltage: 8.4V ± 0.1V
Charging voltage current: 9V~30V /2A
Discharge voltage Current: 11.4V~12.6V/0.5A
Discharge cut-off voltage: 5.6V ± 0.1V
Battery weight: about 360g
Charging temperature: 0 ~ 45℃
Discharge temperature: -30 ~ 55℃
Storage temperature: -20~+50℃ (less than 1 month) -20~ 40 ℃(less than 3 months); -20~+20℃ (less than 6 months)
Battery package: plastic case
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.
Application: Handheld products
Product Features
1.Plastic case is simple and reliable, and is easy to install.
2.Intelligent power Management
3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;
4.Battery protection management: Use imported well-known brand protection chip with nice stability, high precision monitoring, precise control to eliminate security risks.
5.The battery pack has good safety, nice discharge performance and long cycle life;
6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
