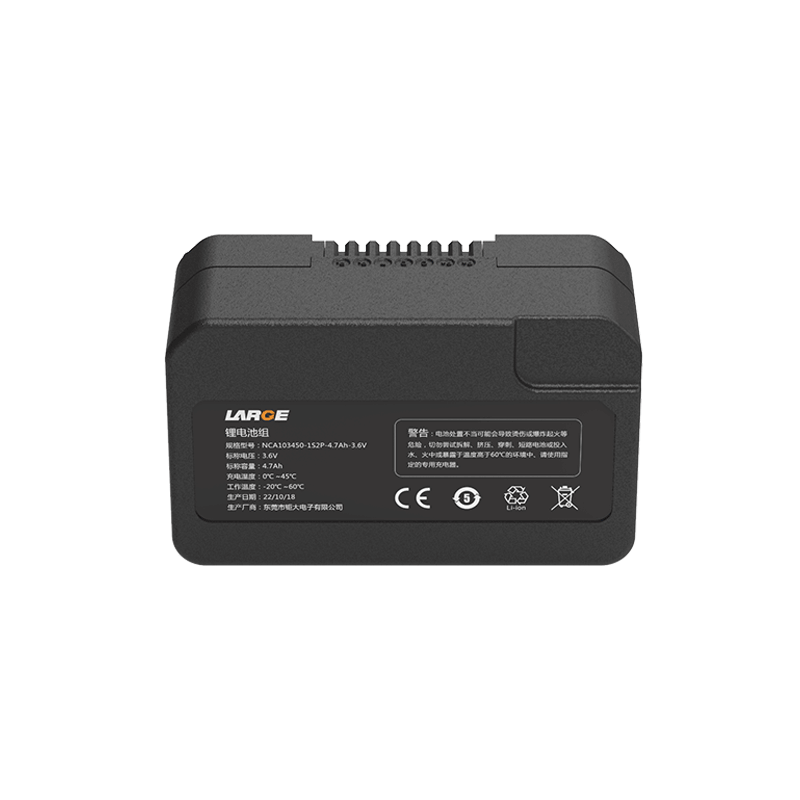

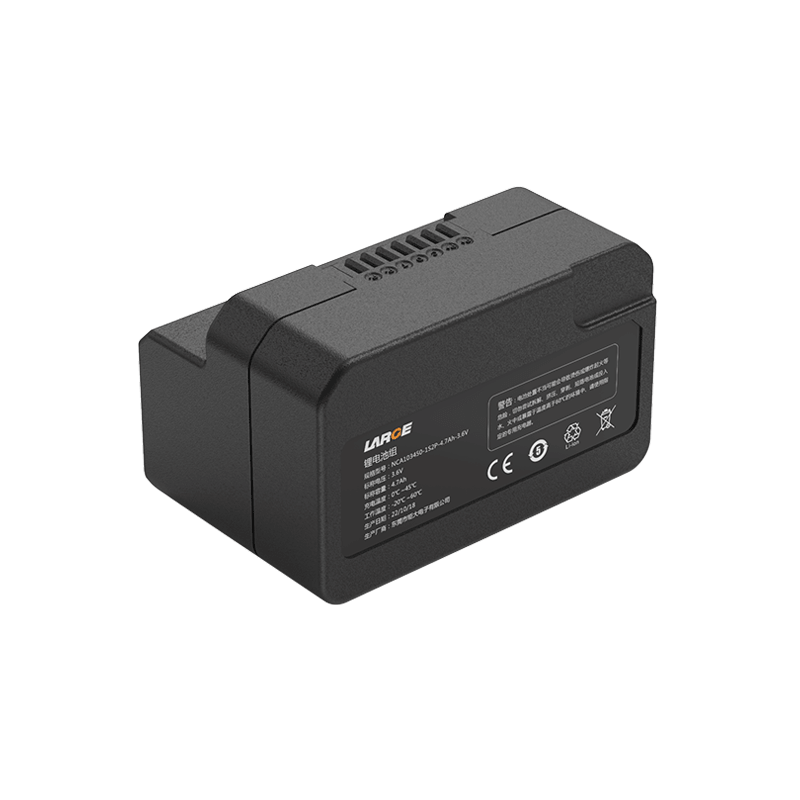

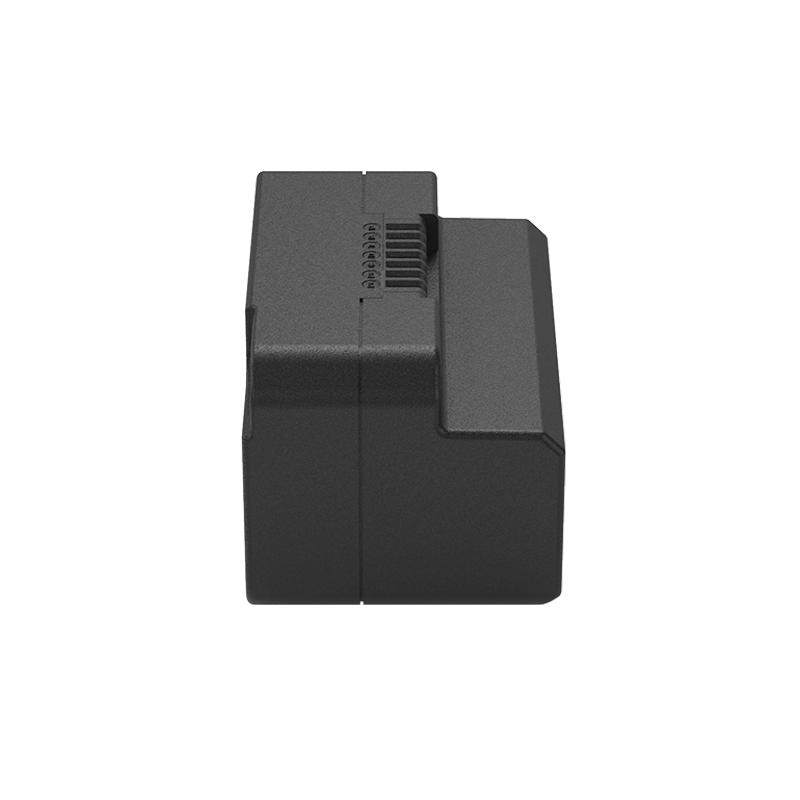

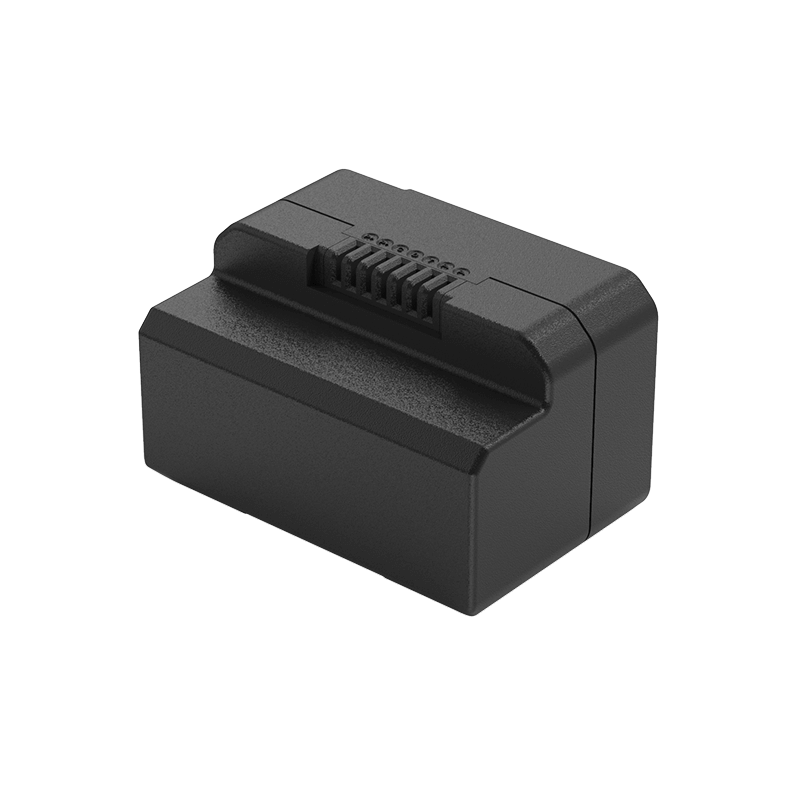

Product number: 36AQ619-01
Cell model: NCA103450-2350mAh-3.6V
Battery specification: NCA103450-1S2P-4.7Ah-3.6V
Product size: 55.9*34*37.4±0.3mm (L*W*H)
Nominal voltage: 3.6V
Nominal capacity: 4700mAh
Charging voltage: 21V
Charging current: 2000mA
Discharge current: 2000mA
Discharge cut-off voltage: 2.5V
Finished internal resistance: ≤200mΩ
Battery weight: 150g
Charging temperature: 10 ~ 45℃
Discharge temperature: -20~+60℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)
Battery package: plastic case
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.
Application: Equipment
Product Features
1.Plastic case is simple and reliable, and is easy to install.
2.I2c protocol
3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;
4.Battery protection management: Use imported well-known brand protection chip with nice stability, high precision monitoring, precise control, to eliminate security risks.
5.The battery pack has nice safety, good discharge performance and long cycle life;
6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
