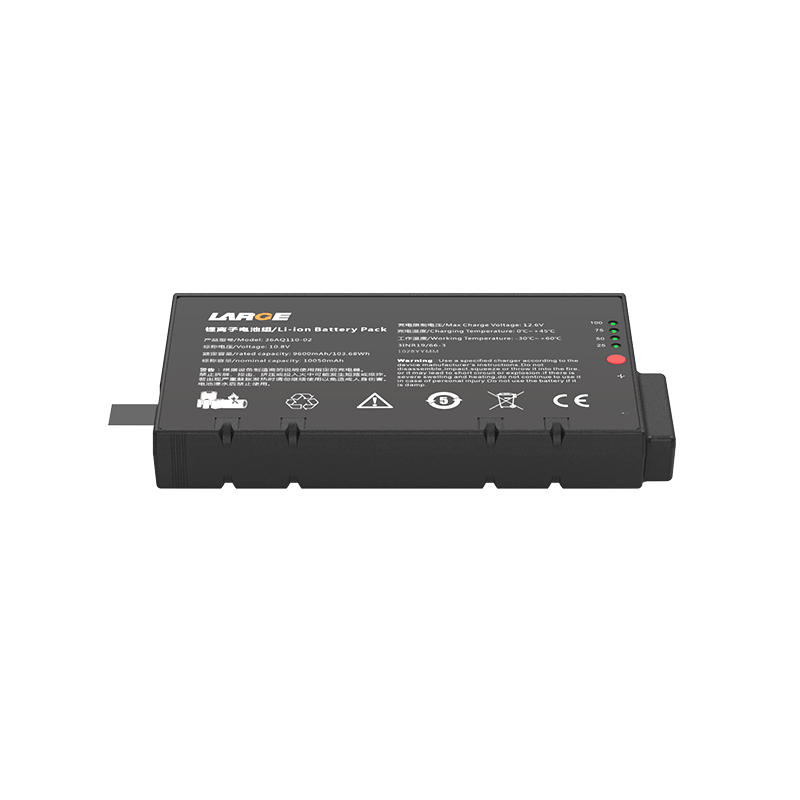

Custom Lithium ion Battery Pack
Product number: 36AQ110-02
Cell model: 18650/3.35AH/3.6V
Battery specification: 18650-3S3P-10050mAh-10.8V
Nominal voltage: 10.8V
Nominal capacity: 10.05Ah
Charging voltage: 12.6V
Charging current: 6A Max
Discharge current: Maximum 6A
Instantaneous discharge current: 6A
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤200mΩ
Battery weight: 500g
Product size: 148.8*88.9*19.5mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -30 ~ 55℃
Storage temperature: -20 ~ 45℃
Battery case: Yes
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, with coulometer and so on
Application: safety equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
