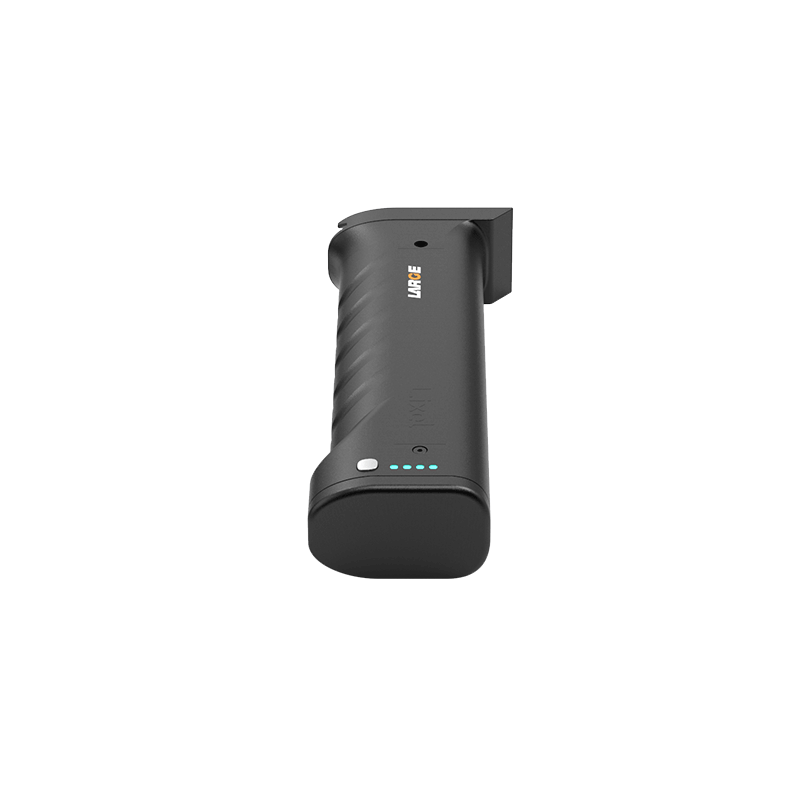

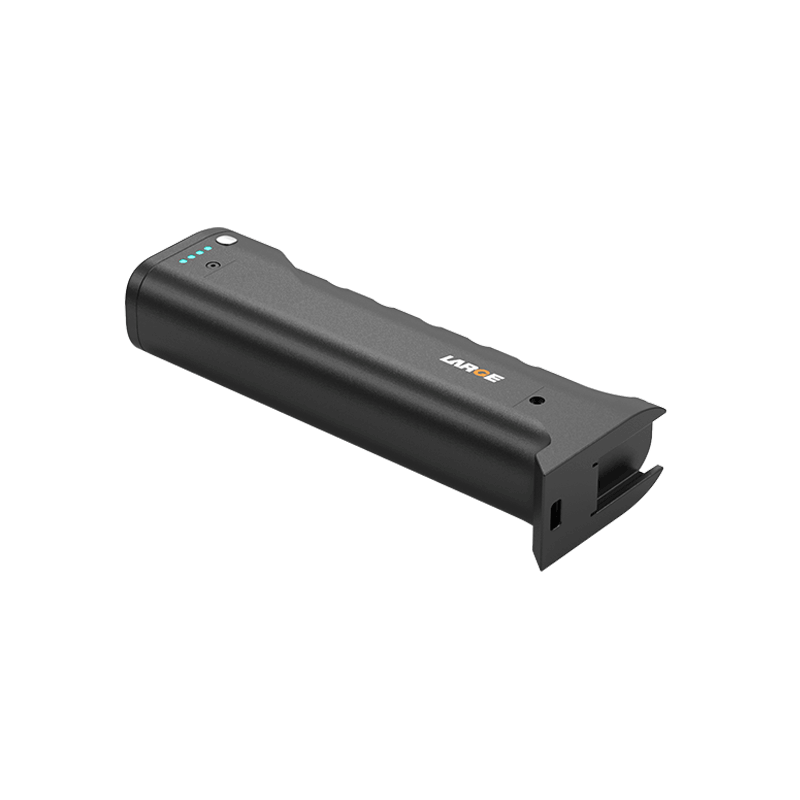

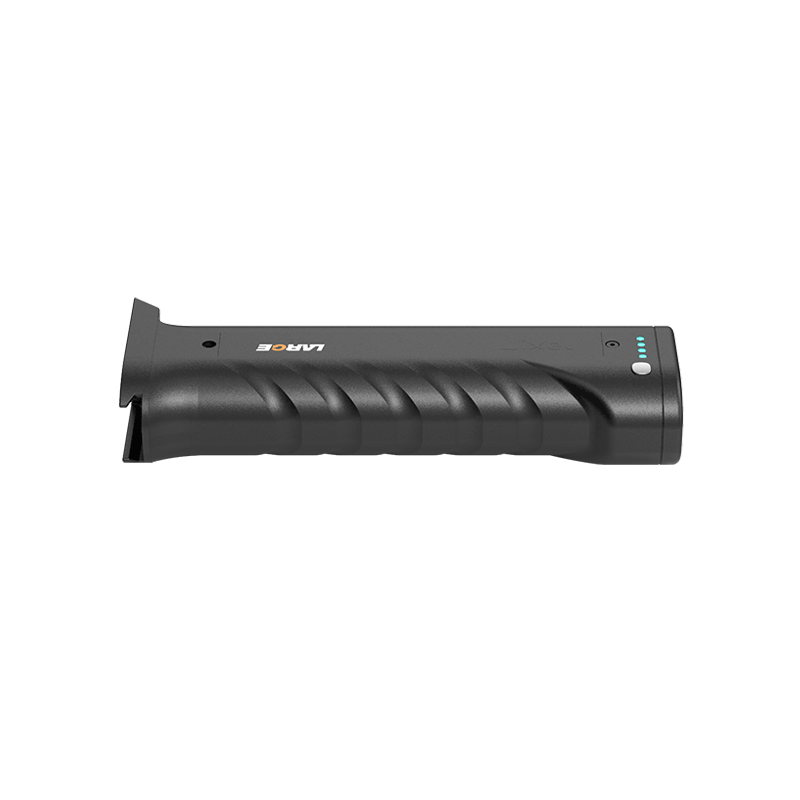

18650 14.4V 3.35AH Smart Lithium-ion Battery Pack for Mapping Handle

Customization | Free Battery Solution

Product Detail

Project number: 37DZ006-01

Cell model: 18650/3.6V/3.35Ah

Battery specification: 18650-4S1P/14.4V/3.35Ah

Nominal voltage: 14.4V

Nominal capacity: 3.35Ah

Charging voltage: 16.8V

Charging current: ≤2A

Discharge current: 1.5A

Instant discharge current: 6-8A

Discharge cut-off voltage: 7.5V

Finished internal resistance: ≤200mΩ

Battery weight: 360g

Product size: 30*49*162.5mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Temperature protection: 65℃±5℃

Battery case: aluminum alloy case

Communication mode: SMBUS

Lithium battery protection: short circuit/over charge/over discharge/over current/temperature protection, coulometer, SMBUS communication, etc.

Application: Mapping handle

Product Features

1.CNC aluminum alloy shell;

2.Temperature protection,

3.The battery pack has nice safety and long cycle life;

4.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept;

5.It has voltameter, charge indicator and discharge indicator.
