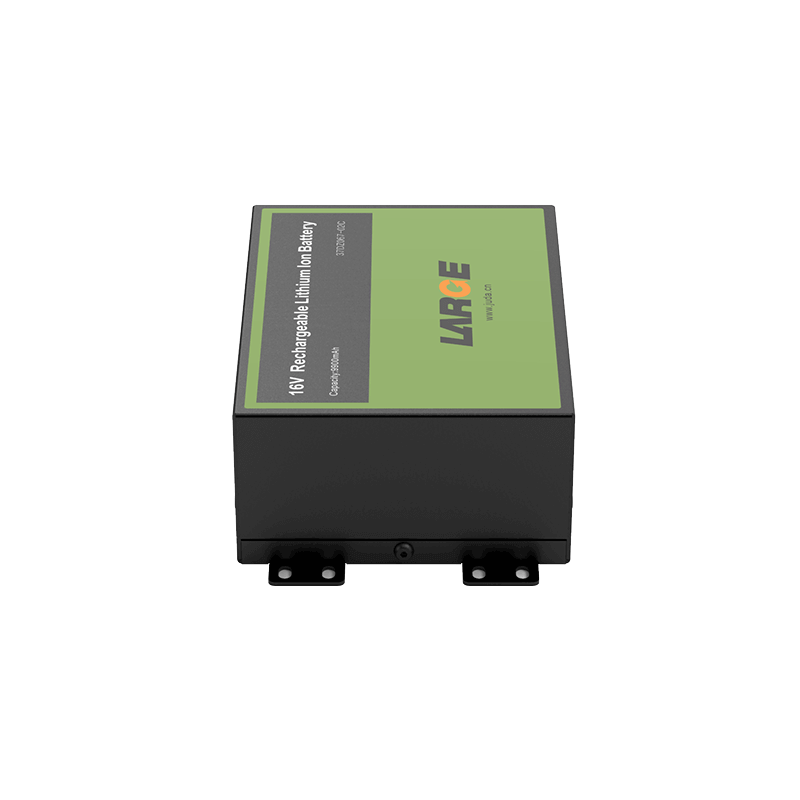

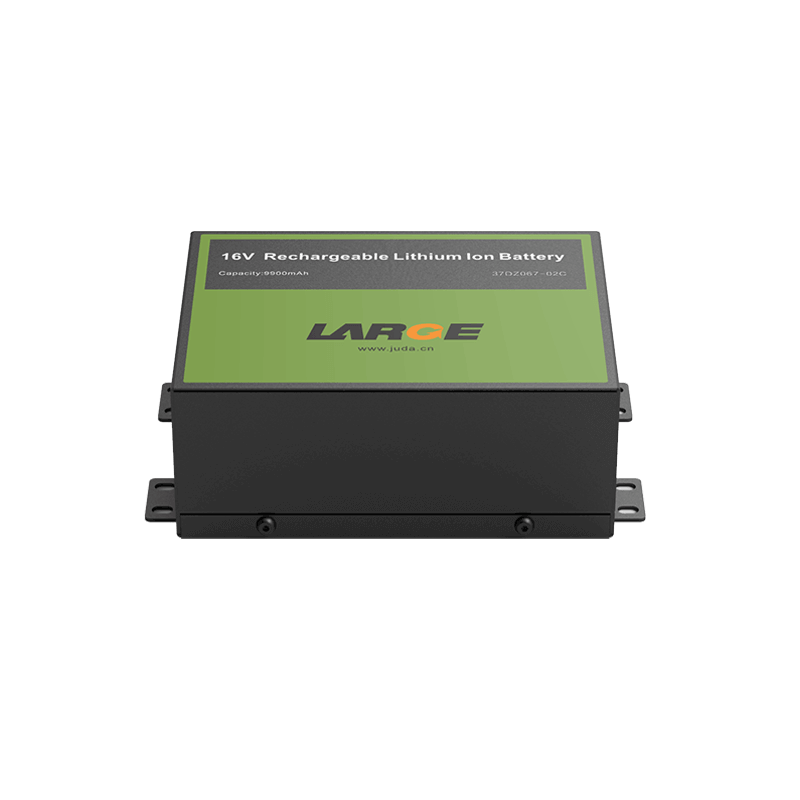

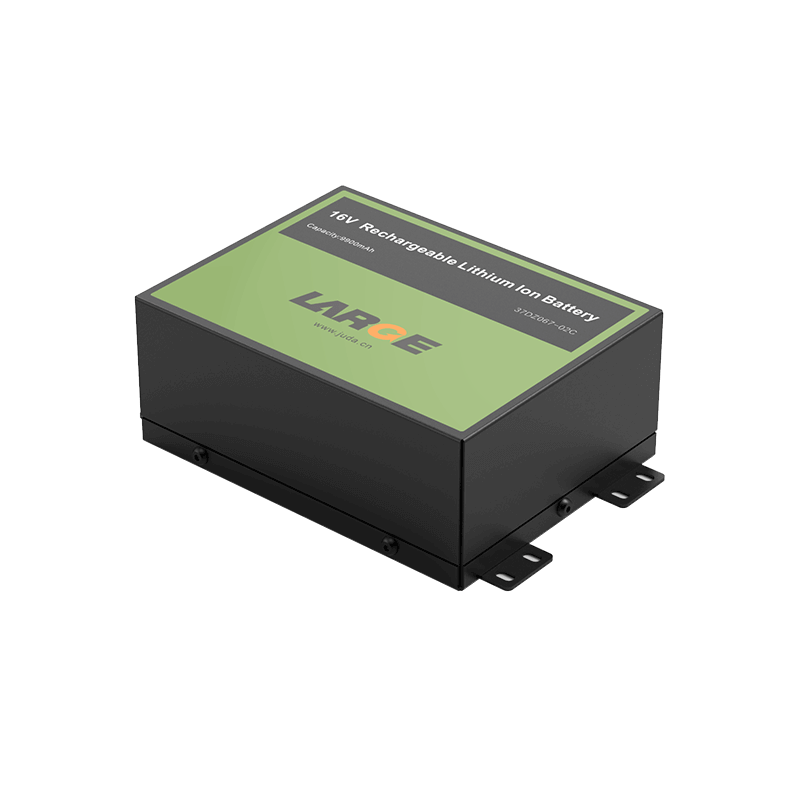

Low Temperature Charging and Discharging 26650 16V 9.9Ah Standby Power Supply Lithium Iron Phosphate Energy Storage Battery

Customization | Free Battery Solution

Product Detail

Product number: 37DZ067-02C

Cell type: 26650/3.2V/3.3Ah

Battery specification: 5S3P/16V/9.9Ah

Nominal voltage: 16V

Nominal capacity: 9.9Ah

Charging voltage: 18.25V

Charging current: ≤5.0A

Discharge current: 10A

Instant discharge current: 30A

Discharge cut-off voltage: 11.5V

Finished internal resistance: ≤200mΩ

Battery weight: 3.0Kg

Product size: 88*120*210mm

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -40 ~ 45℃

Temperature protection: 70℃±5℃

Battery case: aluminum sheet metal case

Communication: None

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, balance and so on

Application: Backup power supply

Product Features

1.High current output;

2.The battery comes with temperature protection,

3.The battery has NTC temperature output.

4.It has aluminum sheet metal housing and light weight.

5.The battery pack has good safety and long cycle life;

6.Fast charge 0.5C.

7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
