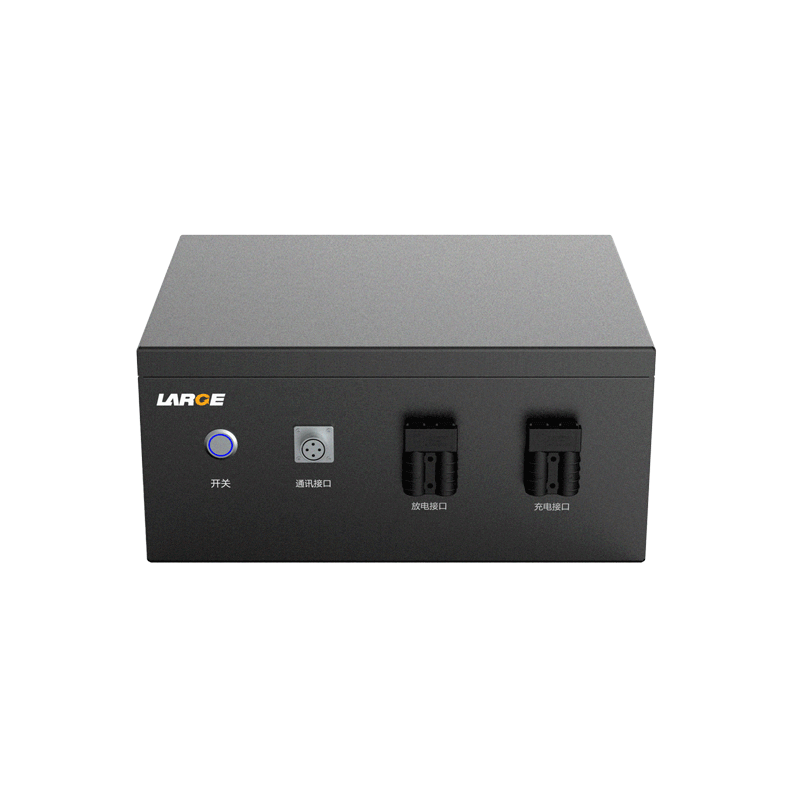

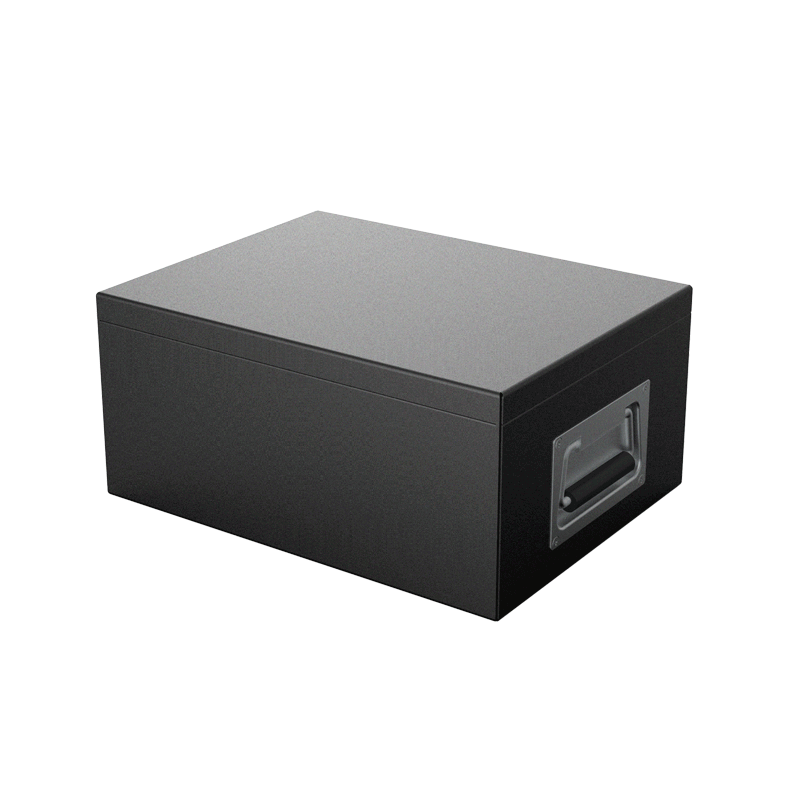

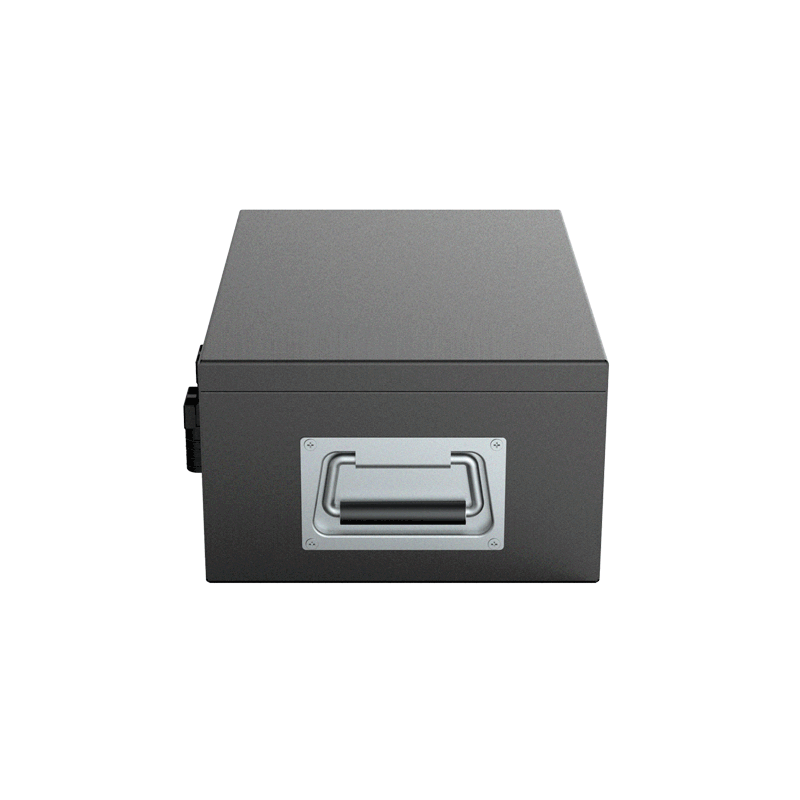

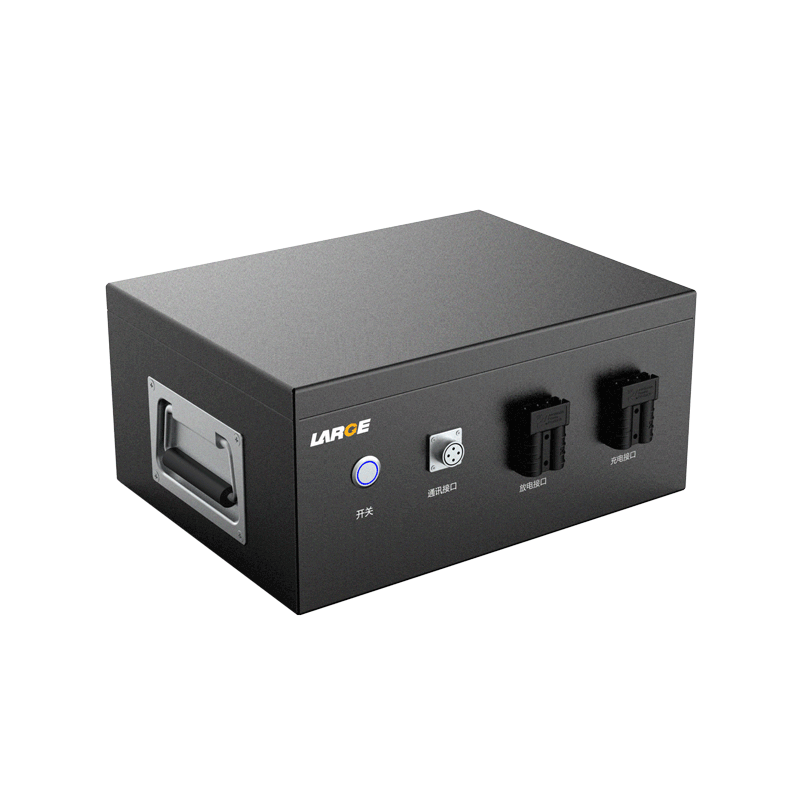

48V 35000mAh LiFePO4 Battery
For Security Inspection Equipment, with RS485 Communication
- Product number: 04EQ223-01
- Nominal voltage: 48.0V
- Nominal capacity: 35000mAh
- Battery size: 360×260×160mm (Max)
- Charging temperature: 0～45℃
- Discharging temperature: -20～60℃
- Application area: Instruments and equipment
- Product number: 04EQ223-01
- Cell model: 26650/3.2V/3.5Ah
- Battery specifications: 26650/15S10P/48V/35Ah
- Nominal voltage: 48V
- Nominal capacity: 35Ah
- Charging voltage: 54V
- Charging current: ≤10A
- Discharge current: 35A
- Instantaneous discharge current: 50A
- Discharge cut-off voltage: 37.75V
- Finished product internal resistance: ≤200mΩ
- Battery weight: 30Kg
- Product size: 360×260×160mm (Max)
- Charging temperature: 0～45℃
- Discharge temperature: -20～55℃
- Storage temperature: -20～40 ℃
- Temperature protection: 65℃±5℃
- Battery housing: cold-rolled sheet metal
- Lithium battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection
- Application areas: instruments and equipment
- Shockproof: The shockproof structure design is filled inside the cold-rolled sheet metal shell to achieve high safety and high reliability requirements
- Salt spray protection: The surface is powder-sprayed to achieve resistance to salt spray and mildew, suitable for marine working environment
- Data communication management: Software management chip, precise data transmission, precise temperature control are used to eliminate safety hazards to the maximum extent
- The battery pack is safe and has a temperature probe. The temperature exceeds the automatic start protection
- The battery pack has a high cycle life and meets the value concept of low carbon, energy saving and environmental protection
