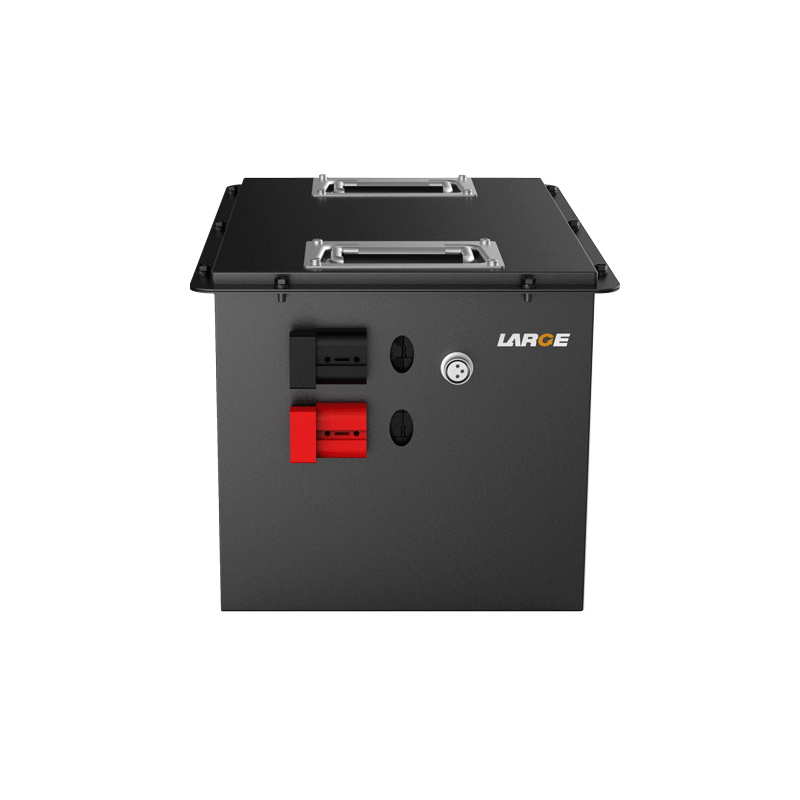

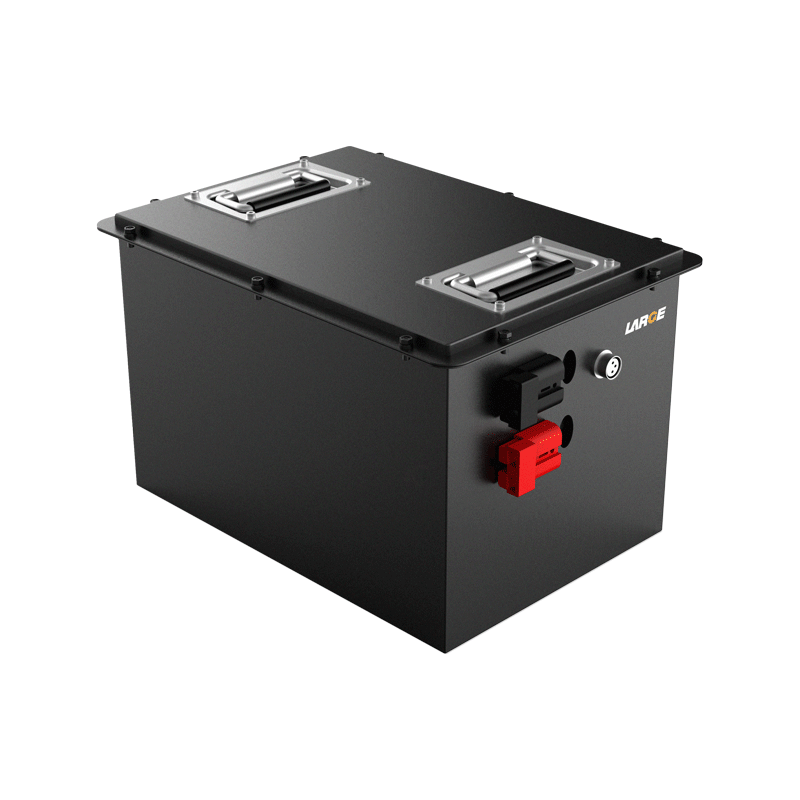

48V 50Ah LiFePO4 Battery Pack
Designed for AGV (Automated Guided Vehicle) Applications
- Product number: 03EQ115-01
- Nominal voltage: 48.0V
- Nominal capacity: 56000mAh
- Battery size: 395*285*240mm (Max)
- Charging temperature: 0～45℃
- Discharging temperature: -20～60℃
- Application areas: Industrial machinery and equipment, AGV logistics cart, RGV, inspection robot
- Product number: 03EQ115-01
- Cell model: LiFePO4 26650/3.2V/3.5Ah
- Battery specifications: LiFePO4-15S16P/48V/50Ah
- Nominal voltage: 48V
- Nominal capacity: 56Ah
- Charging voltage: 54V
- Charging current: ≤25A fast charge 0.5C 2.5h full charge
- Discharge current: 50A
- Instantaneous discharge current: 150A
- Discharge cut-off voltage: 37.5V
- Finished product internal resistance: ≤150mΩ
- Battery weight: 3 5kg
- Product size: 395*285*240mm (Max) excluding mounting hole size
- Charging temperature: 0～45℃
- Discharging temperature: -20～60℃
- Storage temperature: -20～60℃
- Temperature protection: 65℃±5℃
- Battery shell: cold-rolled plate + powder-sprayed shell grade
- Lithium battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, 485 communication, etc.
- Application areas: wide range of applications, industrial machinery and equipment, AGV logistics carts, RGV, inspection robots, etc.
- High current output: copper-nickel composite nickel strip is used to connect the battery cell, which meets the requirements of high current charging and discharging, safe and reliable.
- Communication interface: using a linker, compatible with RS485 communication protocol, can read battery voltage, current, temperature, capacity and other information;
- Data communication management: using BMS software management chip, accurate data transmission, precise temperature control, to eliminate safety hazards to the maximum extent.
- The battery pack is safe, with a temperature probe, and the temperature exceeds the automatic start protection;
- The battery pack has a high cycle life, which conforms to the value concept of low carbon, energy saving and environmental protection;
- Charging: The plug adopts Anderson socket and supports 0.5C fast charging.
