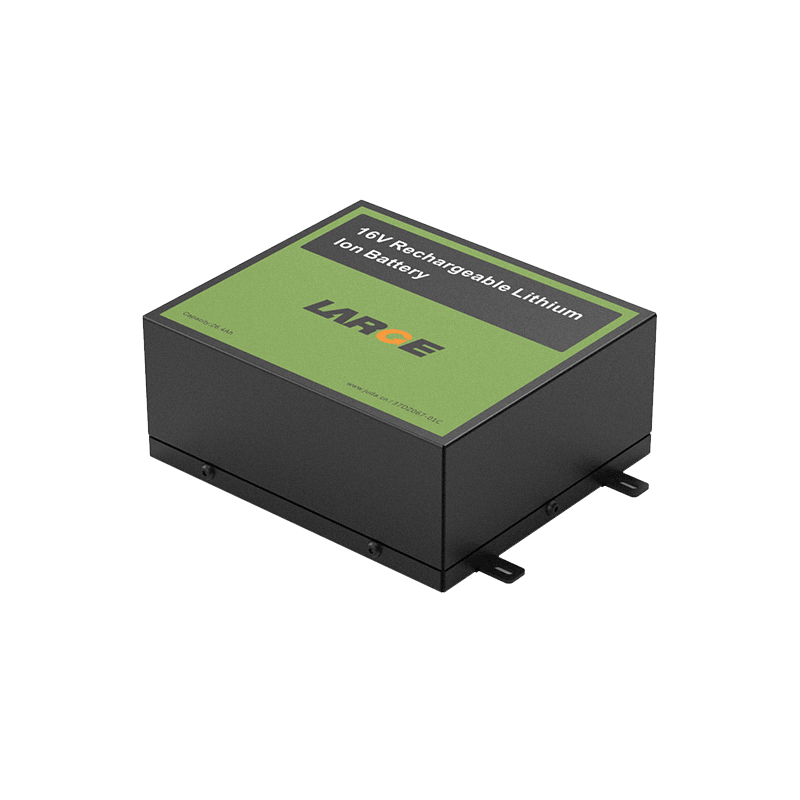

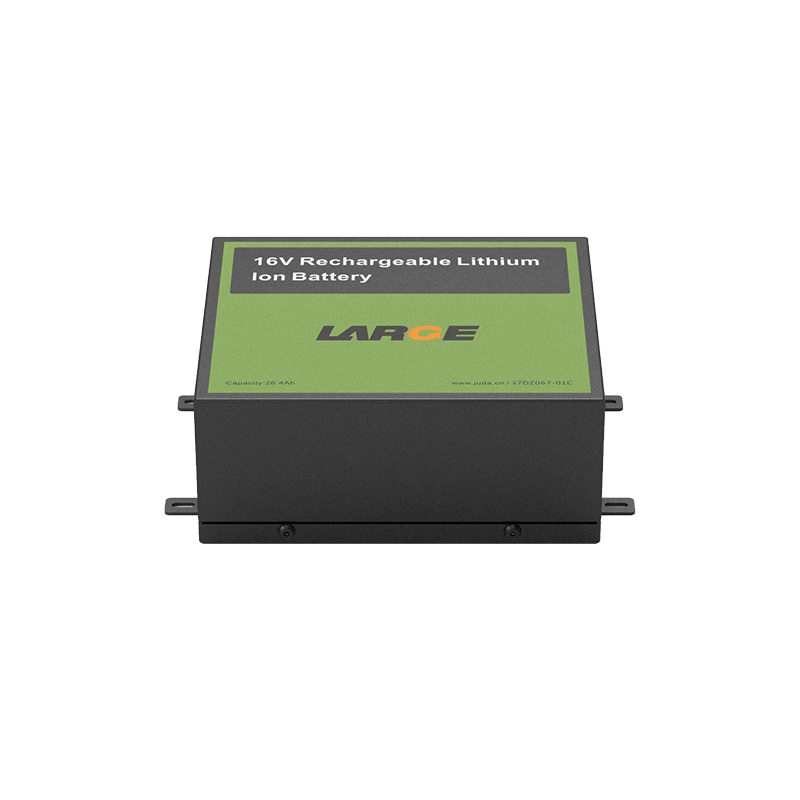

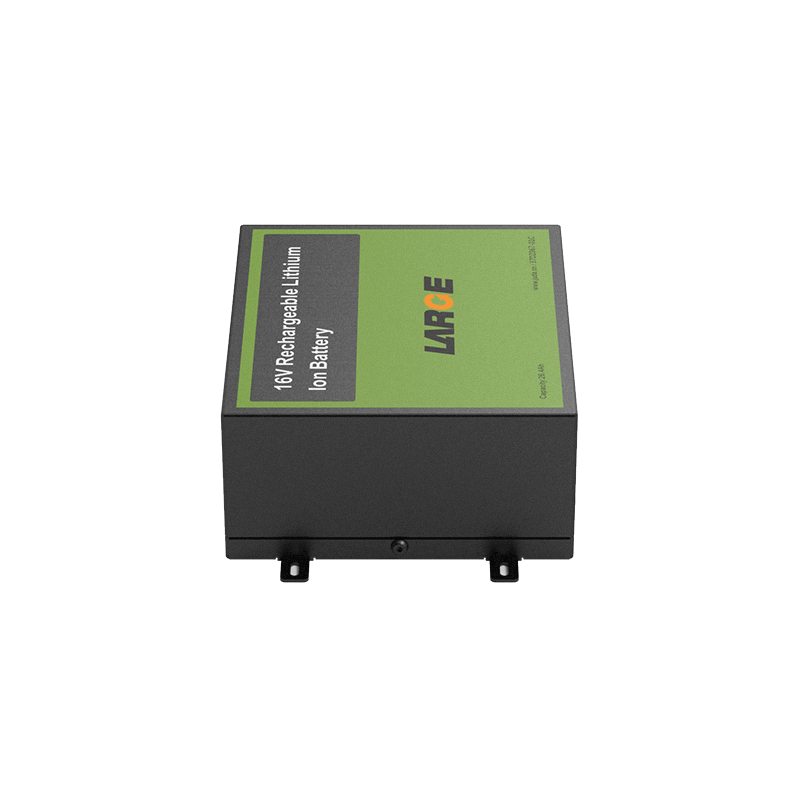

Custom Lithium ion Battery Pack
Product number: 37DZ067-01C
Cell model: 26650/3.2V/3.3Ah
Battery specification: 5S8P/16V/26.4Ah
Nominal voltage: 16V
Nominal capacity: 26.4Ah
Charging voltage: 18.25V
Charging current: ≤5.0A
Discharge current: 10A
Instant discharge current: 30A
Discharge cut-off voltage: 11.5V
Finished internal resistance: ≤200mΩ
Battery weight: 3.0Kg
Product size: 90*189*214mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -40 ~ 45 ℃
Temperature protection: 70℃±5℃
Battery case: aluminum sheet metal case
Communication: None
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, balance and so on
Application: backup power storage
Product Features
1.High current output;
2.The battery comes with temperature protection,
3.The battery has NTC temperature output.
4.It has aluminum sheet metal housing and light weight.
5.The battery pack has good safety and long cycle life;
6.Fast charge 0.5C charge.
7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
