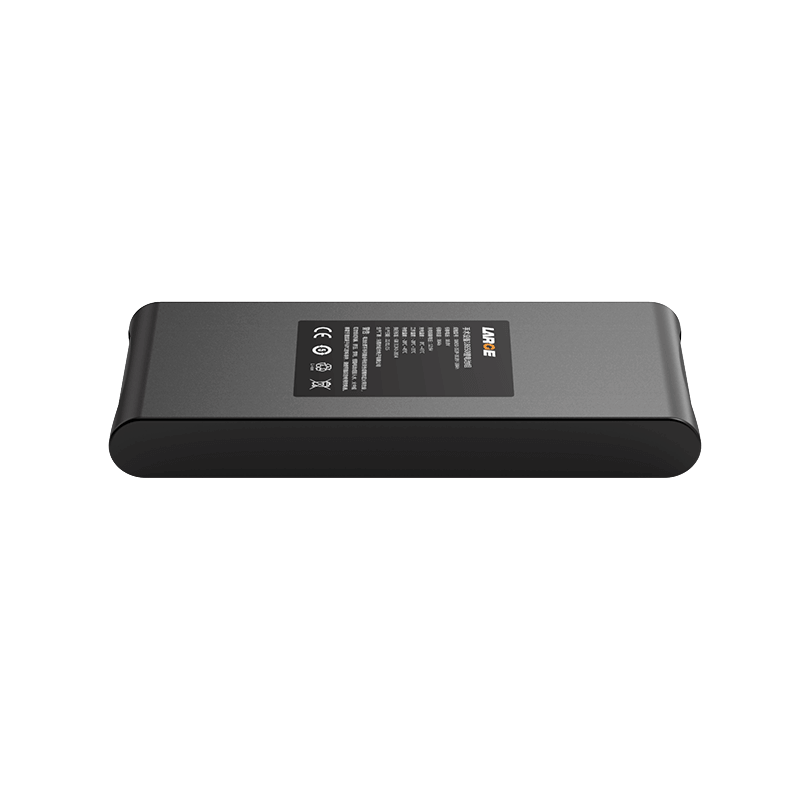

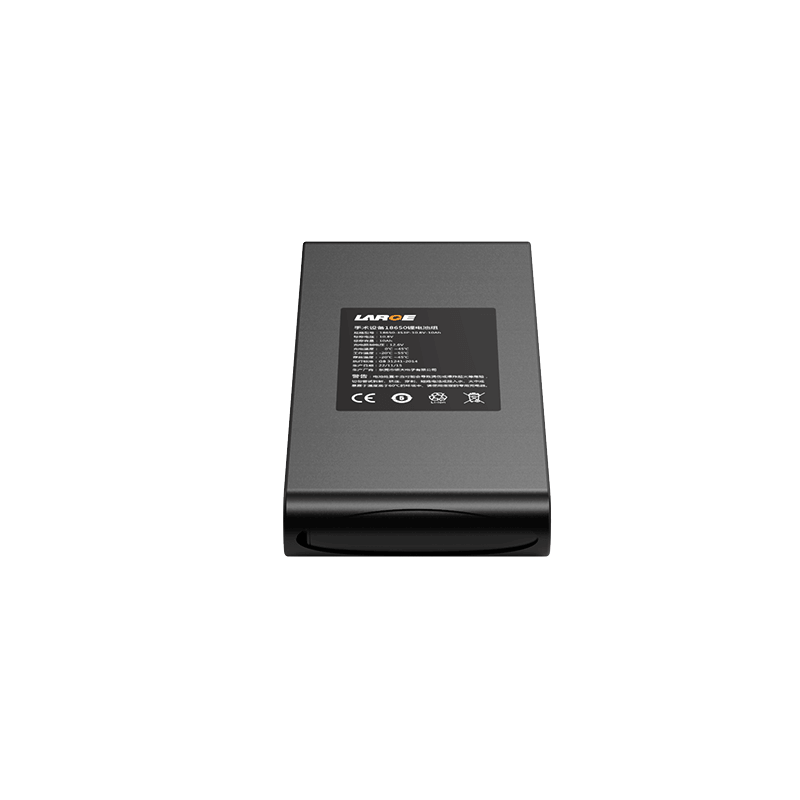

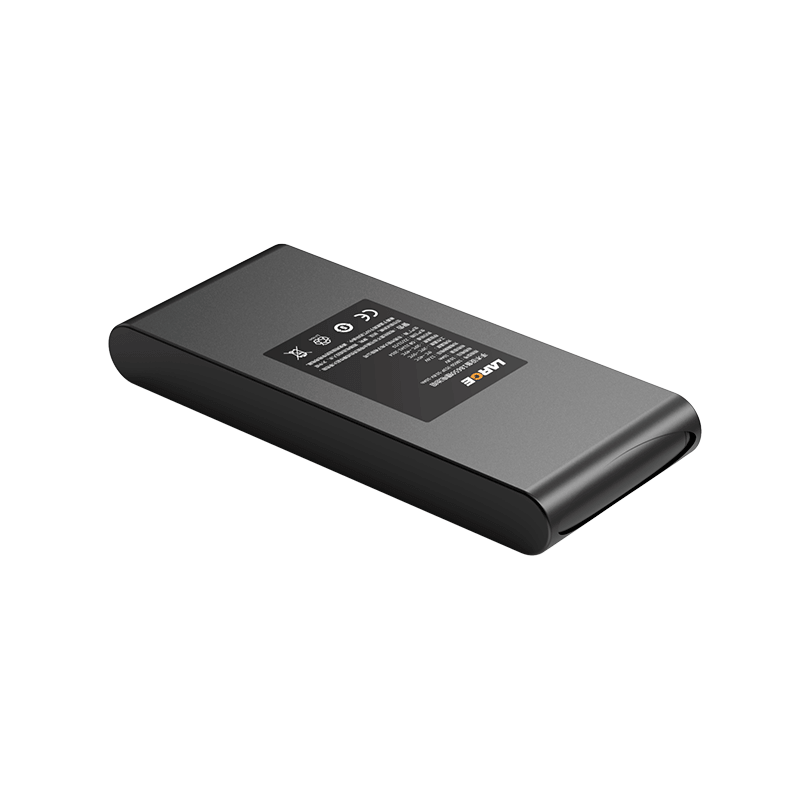

Custom Lithium ion Battery Pack
Product number: 01WQ0075-01
Battery model: 18650-3350mAh-3.60V
Battery specification: 18650-3S3P-10.8V-10Ah
Product size: 1168*71*19.5mm
Nominal voltage: 10.8V
Nominal capacity: 10Ah
Charging voltage: 12.6V
Charging current: 3A
Discharge current: 4.8A
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤200mΩ
Battery weight: 650g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35 ℃(less than 3 months); -20~+25℃ (less than 12 months)
Battery package: PVC package
Output mode: national standard UL wire
Communication protocol: SMBUS
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.
Application: Surgical equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
