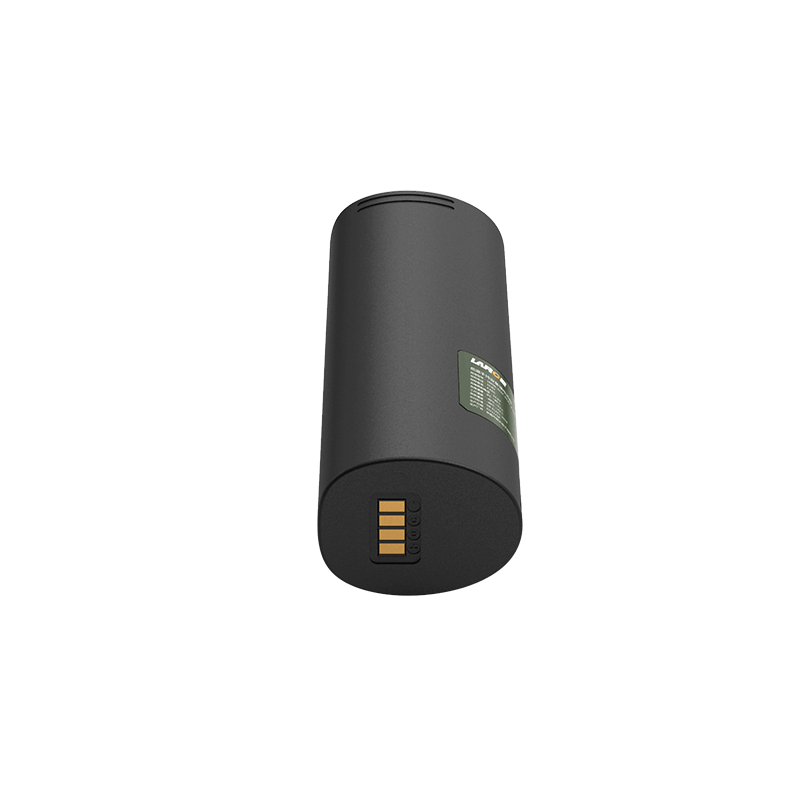

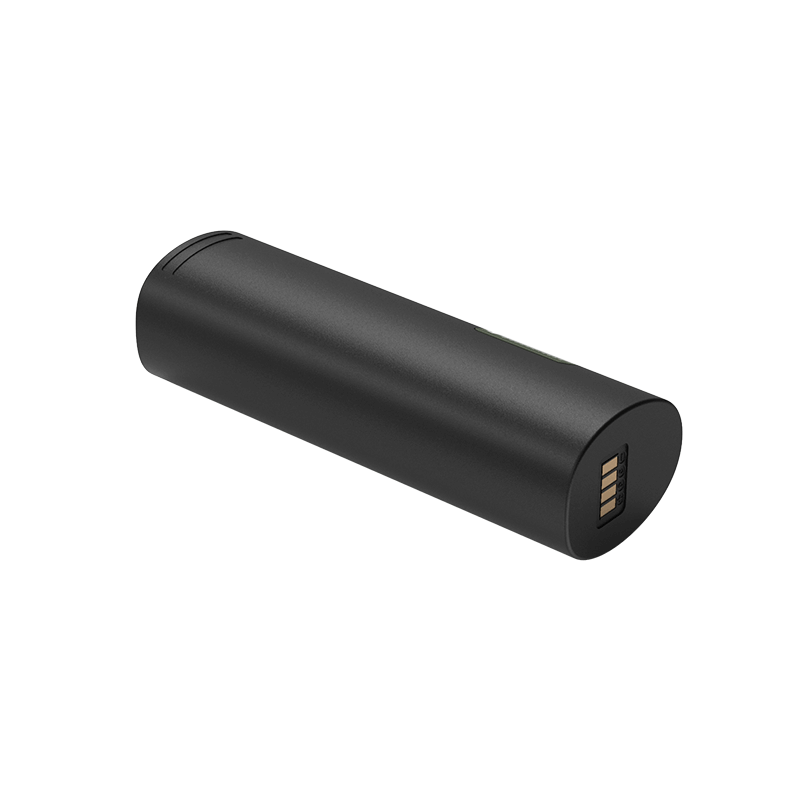

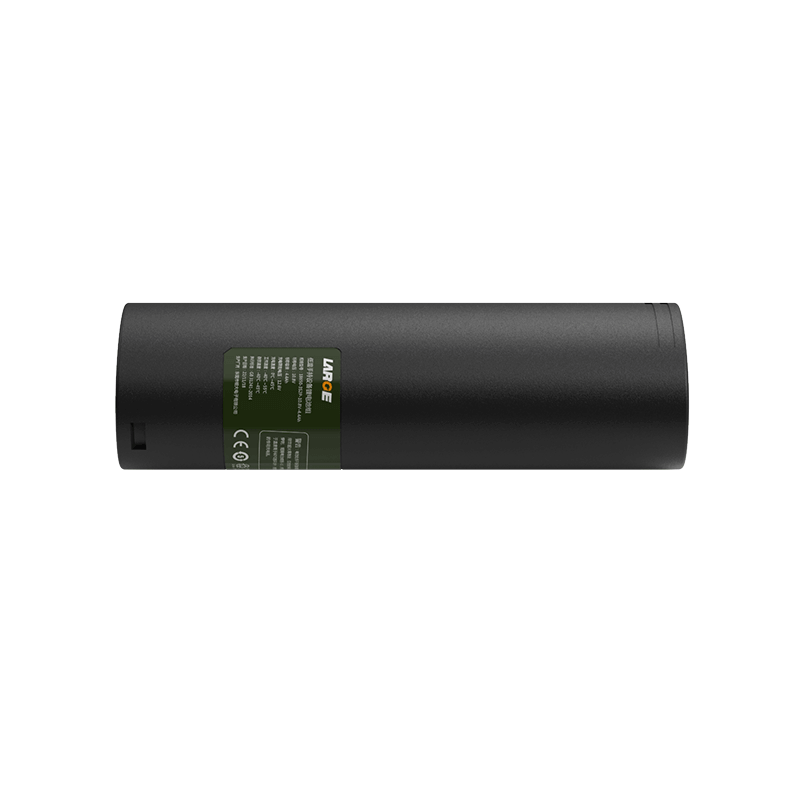

Custom Lithium ion Battery Pack
Product number: 36AQ602-02
Battery model: 18650LS-3.7V-2200mAh
Battery specification: 18650-3S2P-10.8V-4.4Ah
Product size: 146±0.5*49.5±0.3*39.53±0.3(mm)
Nominal voltage: 10.8V
Nominal capacity: 4.4Ah
Charging voltage: 12.6V
Charging current: 2.15A
Discharge current: 4.3A
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤180mΩ
Battery weight: 375g
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 55℃
Storage temperature: -40~+45℃ (less than 1 month) -20 ~ 35 ℃(less than 3 months); -20~+25℃ (less than 12 months)
Battery package: plastic case
Communication protocol: SMBUS
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.
Application: Handheld devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
