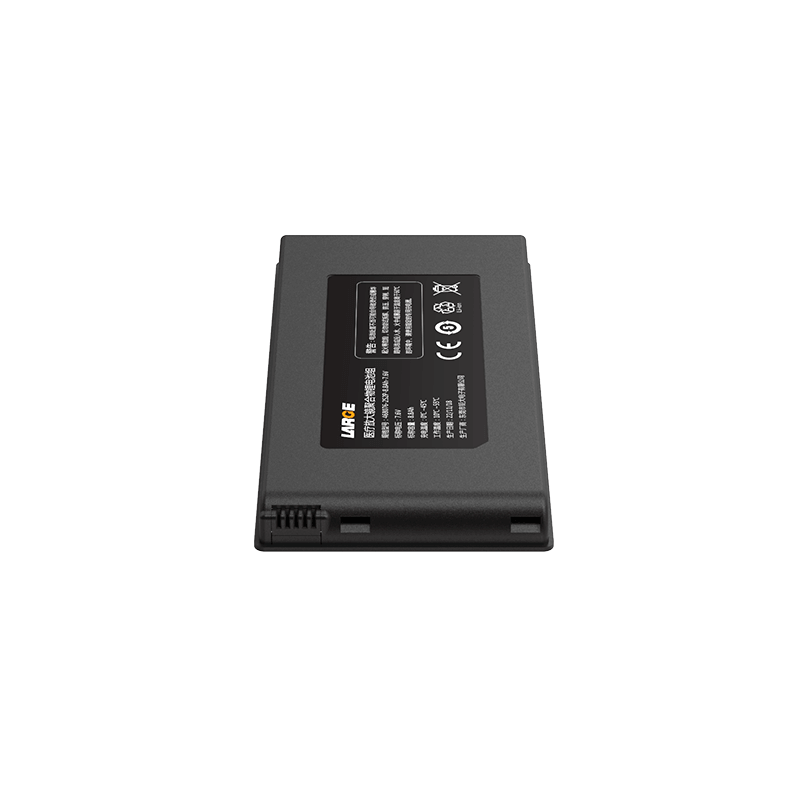

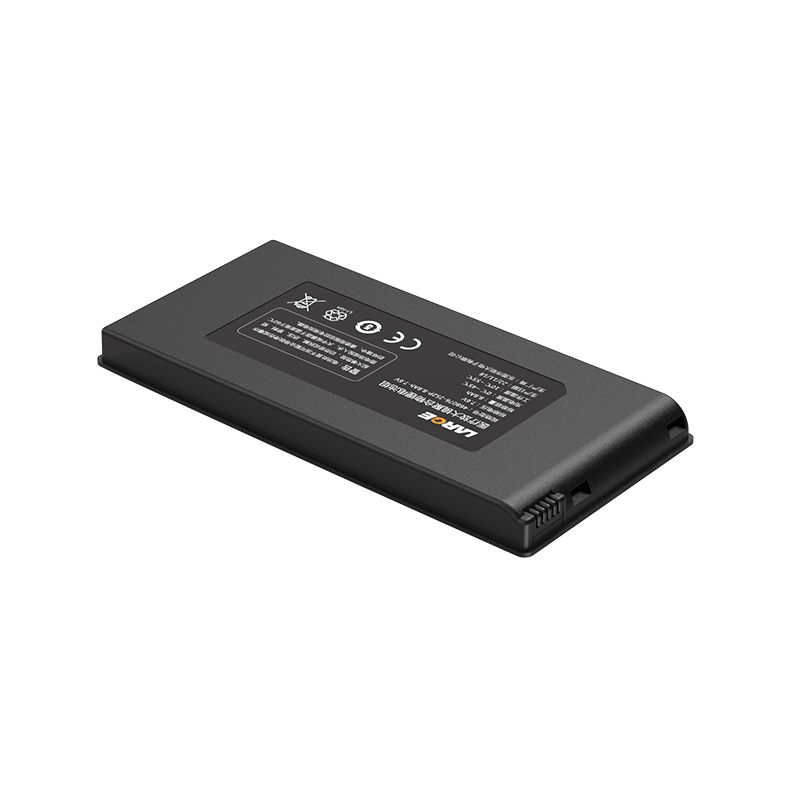

Product number: 41DZ003-06-01
Battery model: 468076PLV-4.35V-4400mAh
Battery specification: 468076-2S2P-8.8Ah-7.6V
Nominal voltage: 7.6V
Nominal capacity: 8.8Ah
Charging voltage: 8.7V
Charging current: ≤4.5A
Discharge current: 4A
Instantaneous discharge current: 4A
Discharge cut-off voltage: 6V
Finished internal resistance: ≤150mΩ
Battery weight: 300g
Product size: 175.66×86.66×14.15mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 55℃
Storage temperature: -20 ~ 45℃
Battery case: Industrial grade
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Applications: outdoor monitoring, medical equipment
1.Maximum sustainable 4A discharge.
2.It has passed CB and PSE certification, using imported protection chip, imported MOS, including 10KNTC, which can show temperature changes in real time, to minimize security risks.
3.Self-developed ultra high capacity polymer cell
4.The battery pack has a long cycle life, which conforms to the value concept of low carbon, energy saving and environmental protection.
