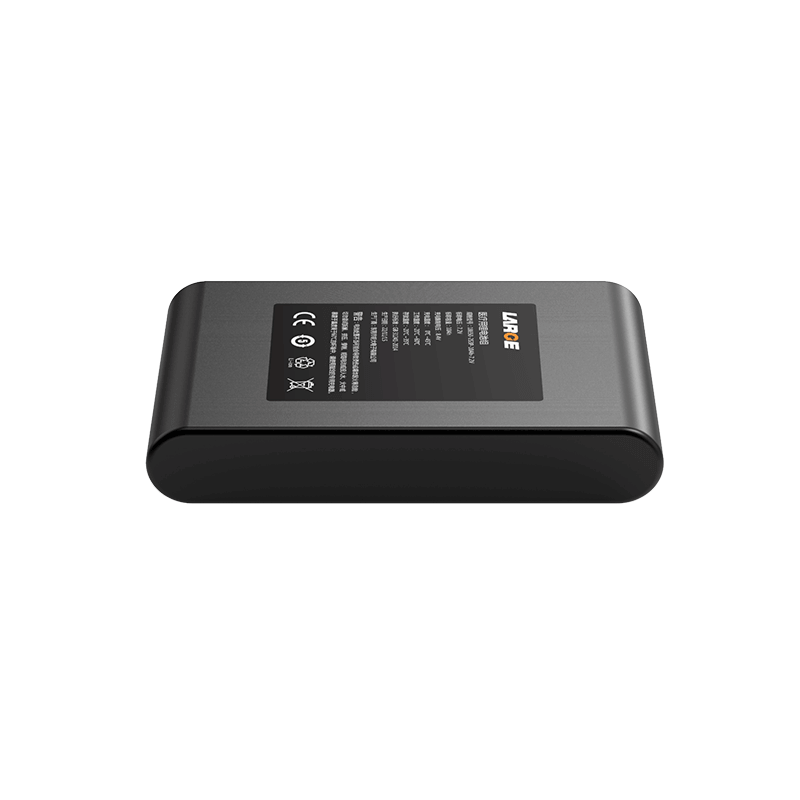

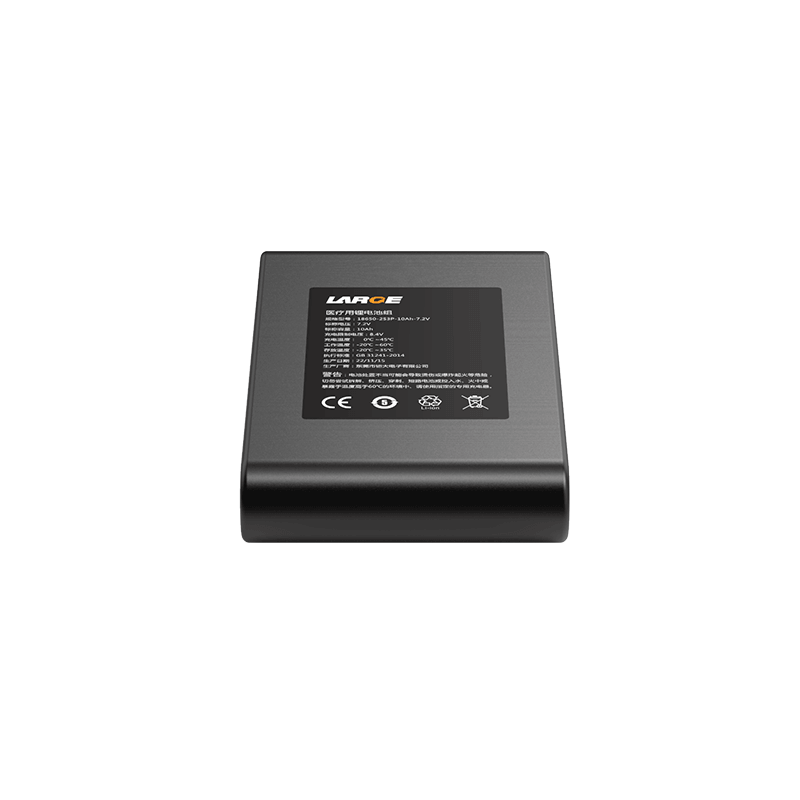

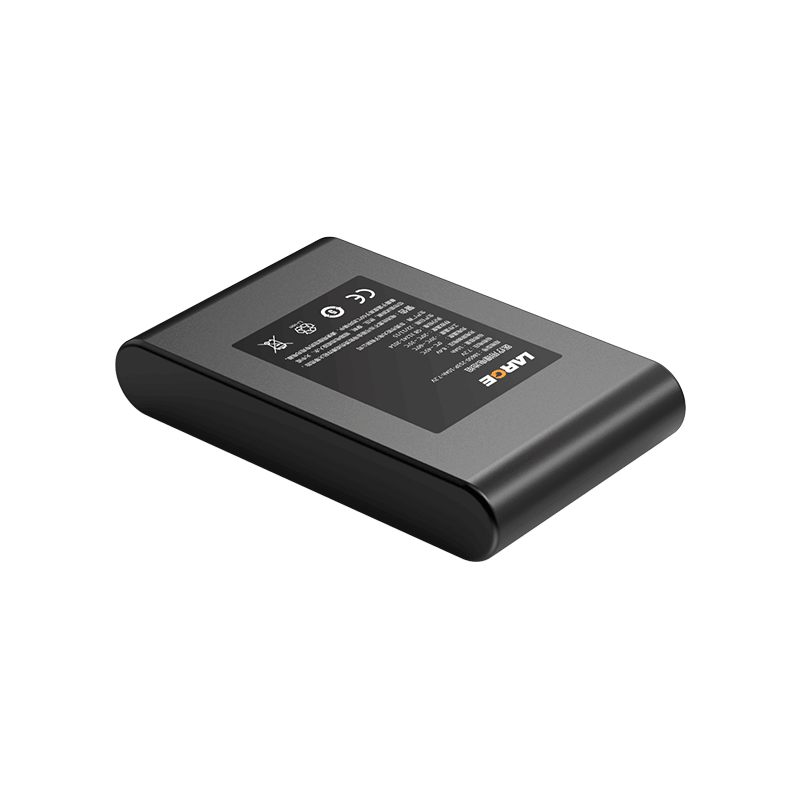

Custom Lithium ion Battery Pack
Product number: 40AQ028-01
Battery model: 18650-3350mAh-3.6V
Battery specification: 18650-2S3P-10Ah-7.2V
Nominal voltage: 7.2V
Nominal capacity: 10Ah
Charging voltage: 8.4V
Charging current: ≤4.5A
Discharge current: 2.0A
Instantaneous discharge current: 4.5A
Discharge cut-off voltage: 6.0V
Finished internal resistance: ≤250mΩ
Battery weight: 305g
Product size: 115*70*20mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: Blue PVC heat shrink film
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection, ESD protection, etc.
Applications: medical handheld equipment, portable camera equipment, security monitoring equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
