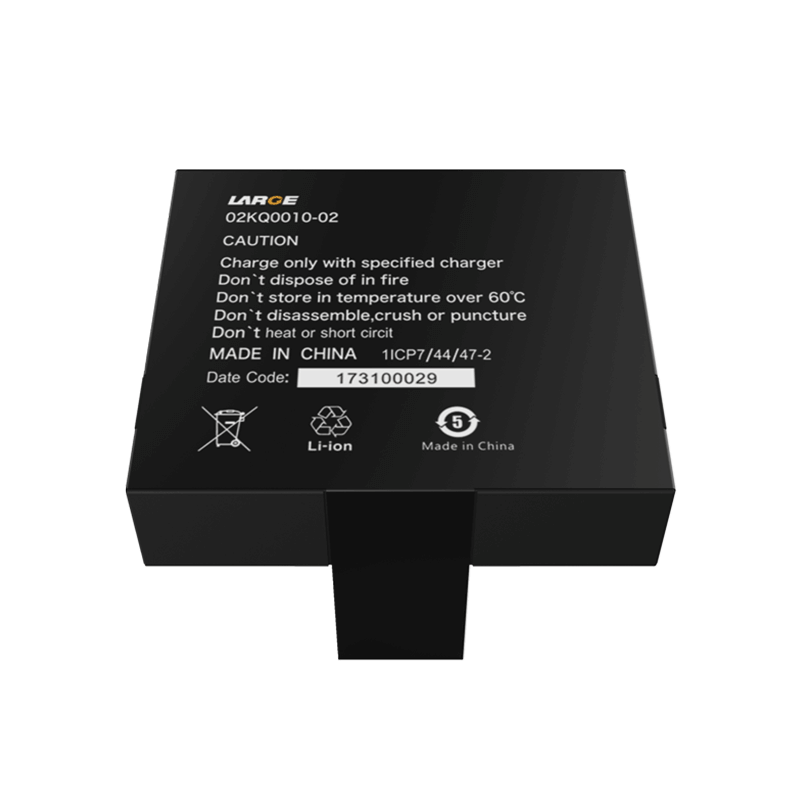

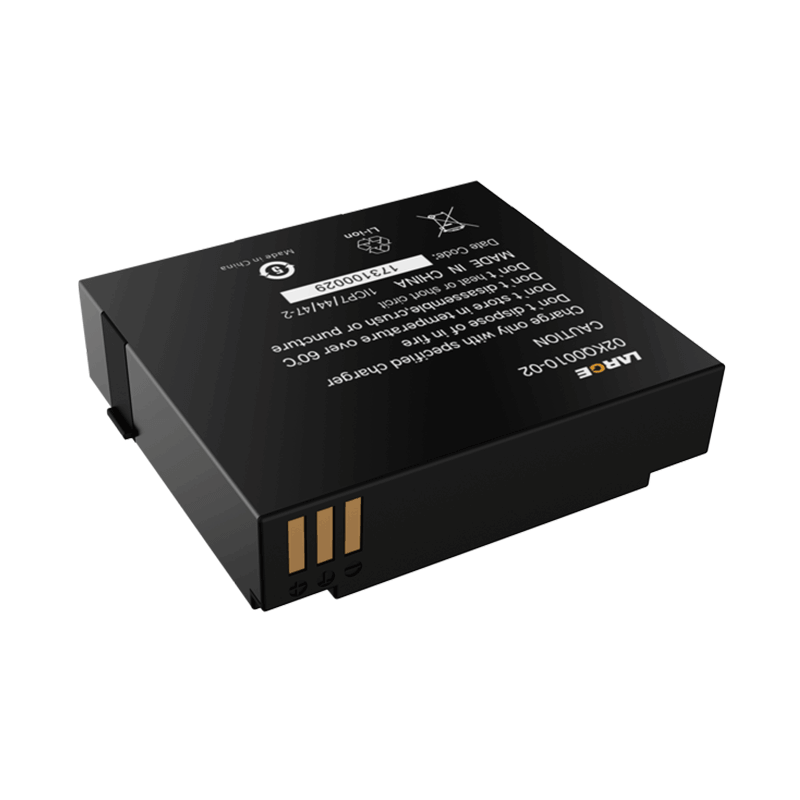

Custom Lithium ion Battery Pack
Product number: 02KQ0010-02
Cell model：644446/1650mAh/3.7V
Battery specification: 644446/1S2P/3300mAh/3.7V
Nominal voltage：3.7V
Nominal capacity：3300mAh
Charging voltage: 4.2V
Charging current: ≤1650mA
Discharging current: ≤3.3A
Instant discharging current: 5.0A for 1mS
End-off voltage: 3.0V
Internal resistance: ≤150mΩ
Battery weight: about 80g
Product dimension: 58*50*14mm
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～35 ℃
Temperature protection: 55±2℃
Battery case: plastic frame
Lithium ion battery protection: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, etc.
Application field: industrial handheld device, etc.
