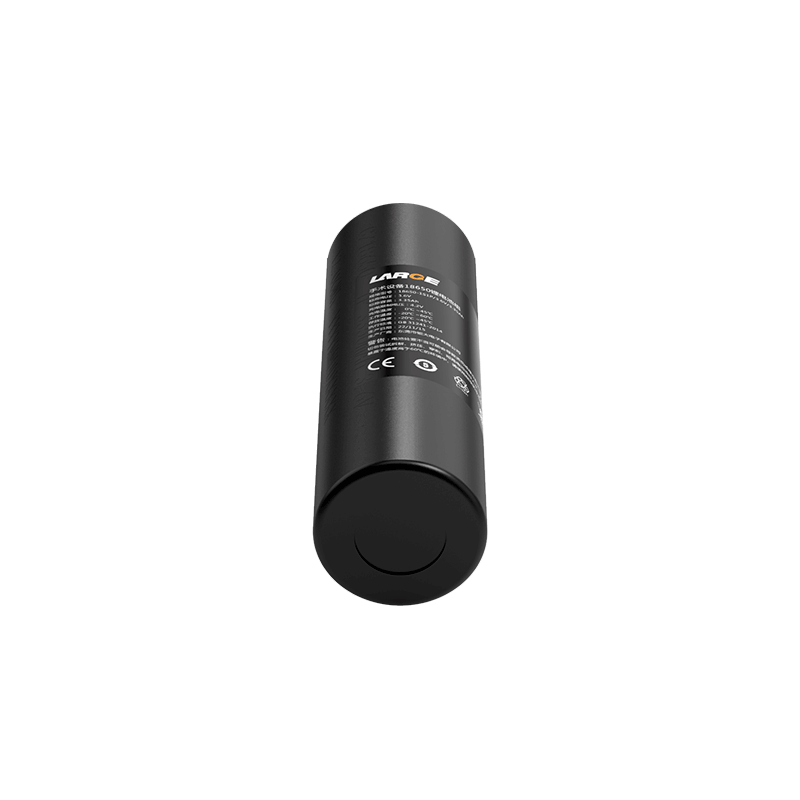

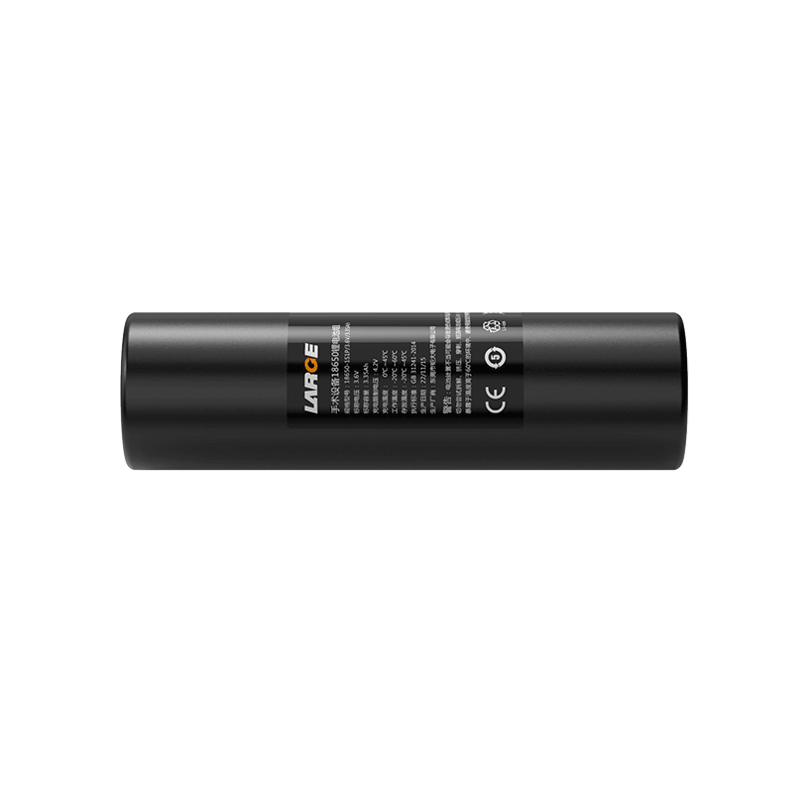

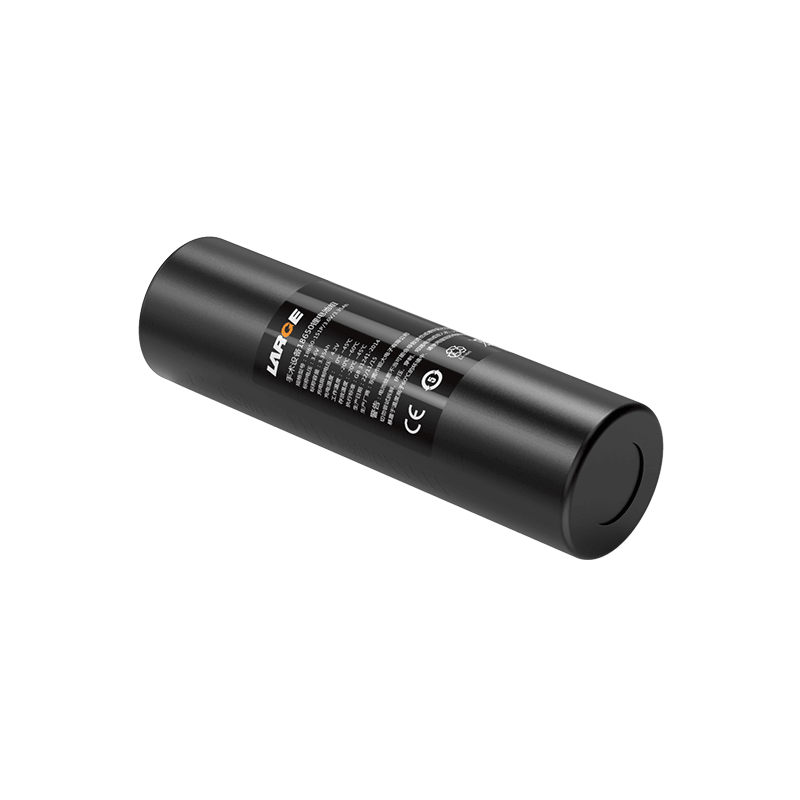

Custom Lithium ion Battery Pack
Project number: 33DZ039-04
Cell model: 18650/3.6V/3.35Ah
Battery specification: 18650-1S1P/3.6V/3.35Ah
Nominal voltage: 3.6V
Nominal capacity: 3.35Ah
Charging voltage: 4.2V
Charging current: ≤1.65A
Discharge current: 2A
Instantaneous discharge current: less than 3A
Internal resistance of finished product: ≤100mΩ
Battery weight: 50g
Product size: 19.5*19.5*68.5mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45℃
Battery case: PVC
Communication: None
Lithium-ion battery protection: None
Application: Special lighting battery
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
