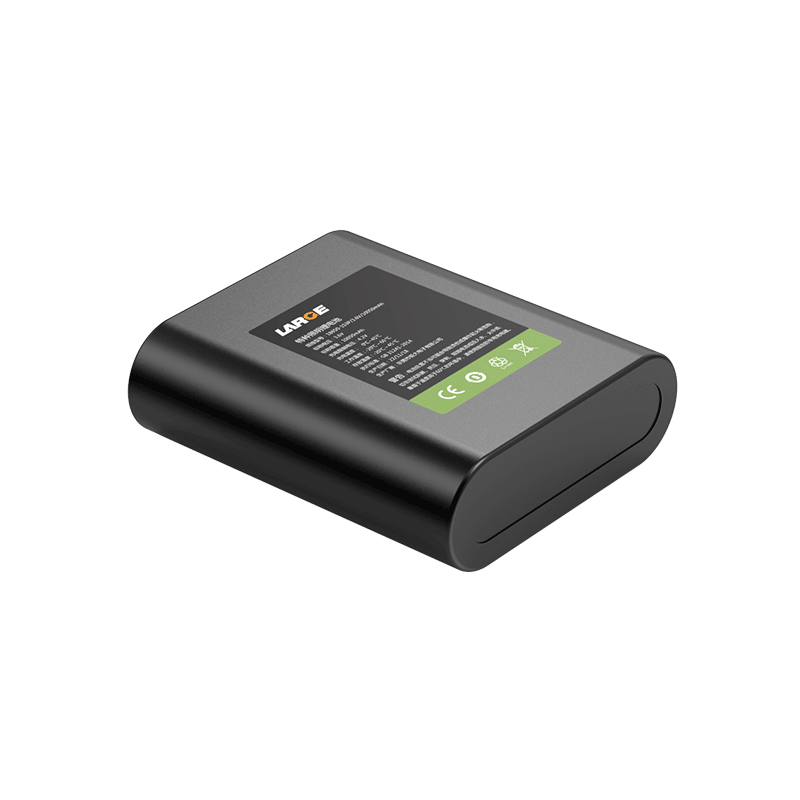

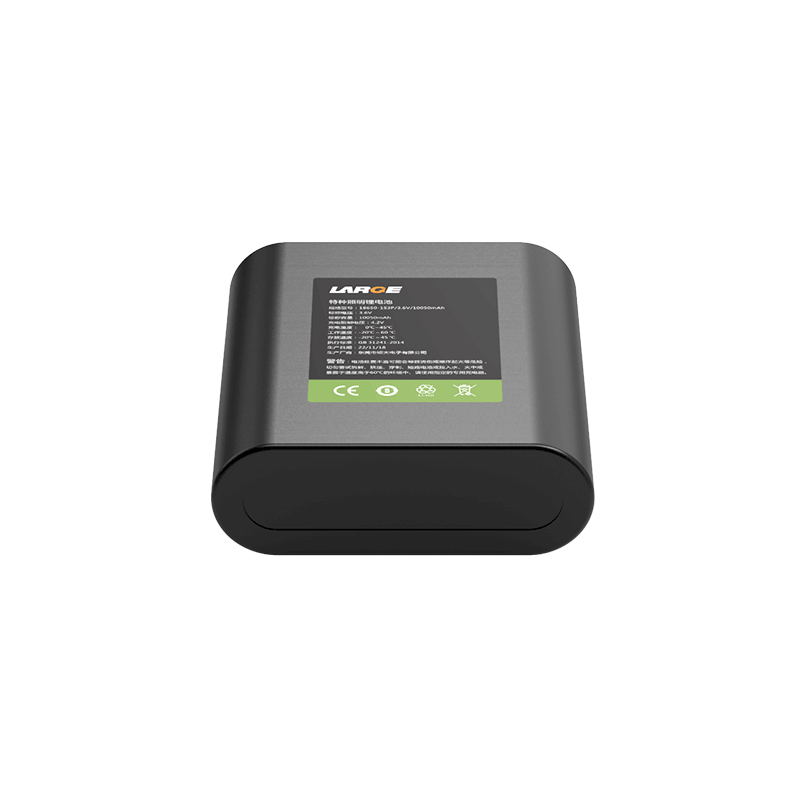

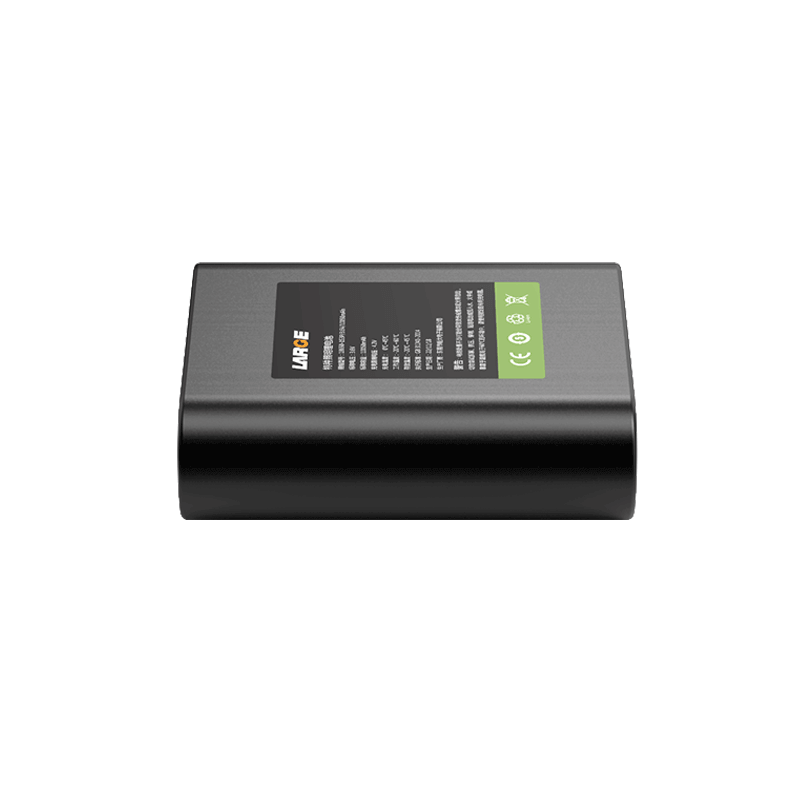

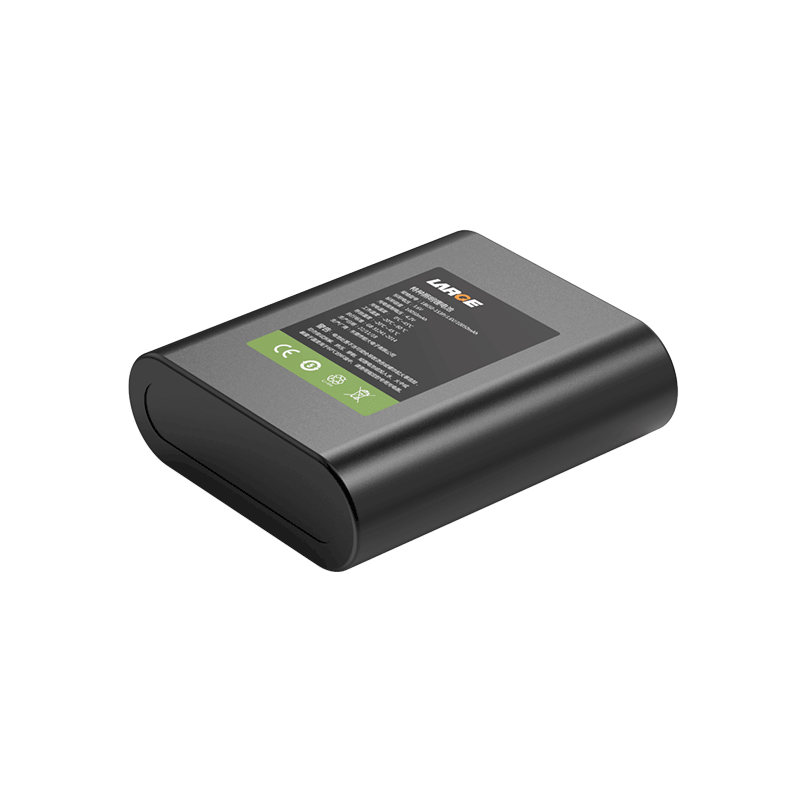

Custom Lithium ion Battery Pack
Project number: 33DZ039-03
Cell model: 18650/3.6V/3.35Ah
Battery specification: 18650-1S3P/3.6V/10050mAh
Nominal voltage: 3.6V
Nominal capacity: 10050mA
Charging voltage: 4.2V
Charging current: ≤2A
Discharge current: 0.7A
Instantaneous discharge current: less than 2A
Internal resistance of finished product: ≤450mΩ
Battery weight: 150g
Product size: 22.5*66*77mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45℃
Battery case: PVC
Communication: None
Lithium-ion protection: explosion-proof design, over charge, over discharge, over current, current limiting, etc.
Application: Special lighting
