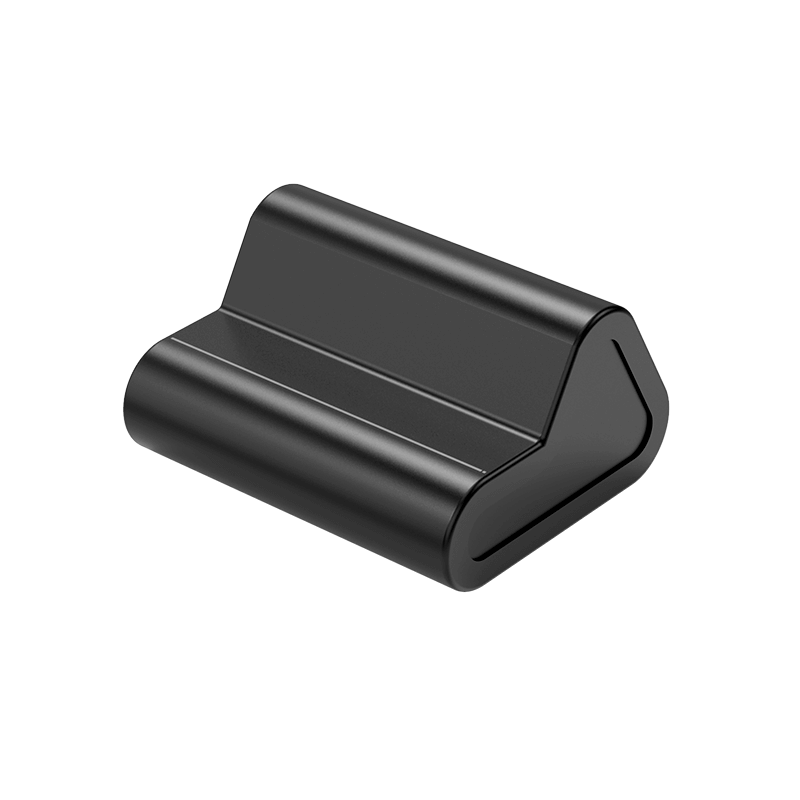

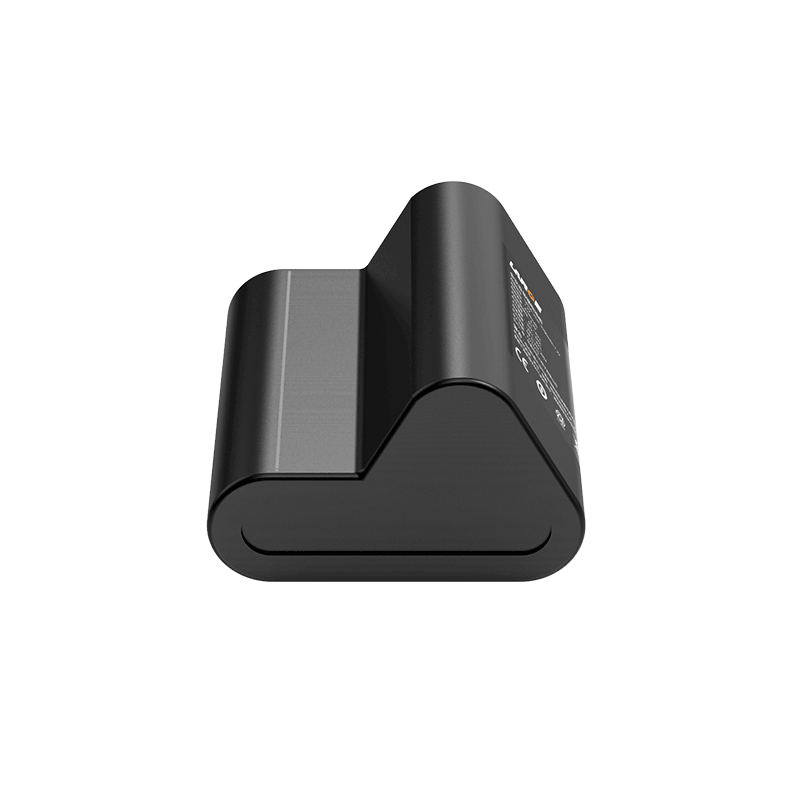

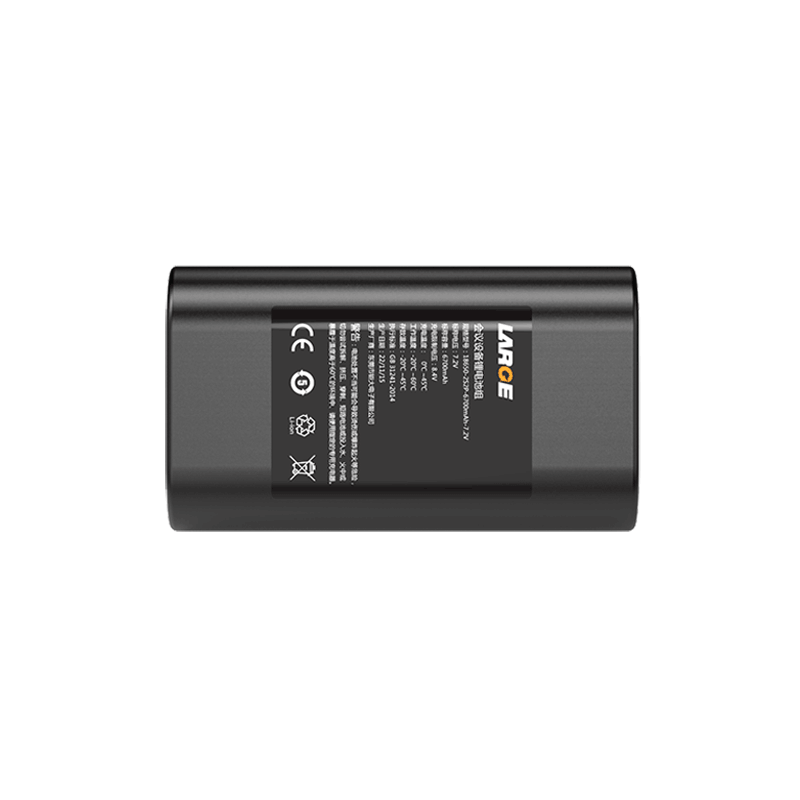

Custom Lithium ion Battery Pack
Product number: 33DZ050-02
Battery model: 18650/3.6V/3350mAh
Battery specification: 18650-2S2P-6700mAh-7.2V
Nominal voltage: 7.2V
Nominal capacity: 6700mAh
Charging voltage: 8.4V
Charging current: ≤3350mA
Discharge current: 3.35A
Instantaneous discharge current: 3.5-7.0A
Discharge cut-off voltage: 5V
Finished internal resistance: ≤180mΩ
Battery weight: 200G
Product size: 35×56.5×67.5mm (L×W×H)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45℃
Battery case: PVC
Lithium-ion protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Applications: Instrumentation, conference equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
