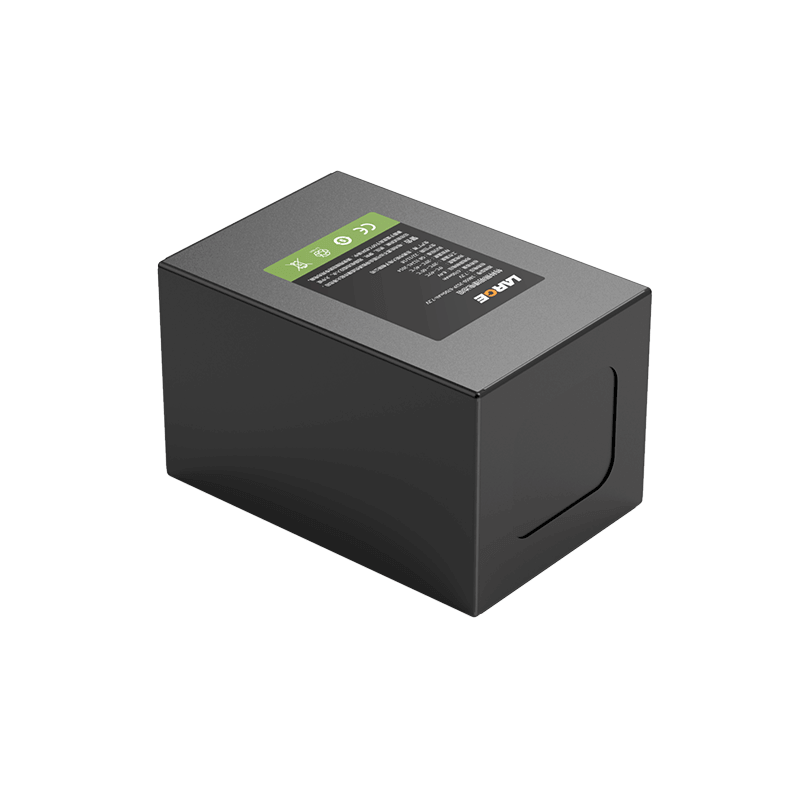

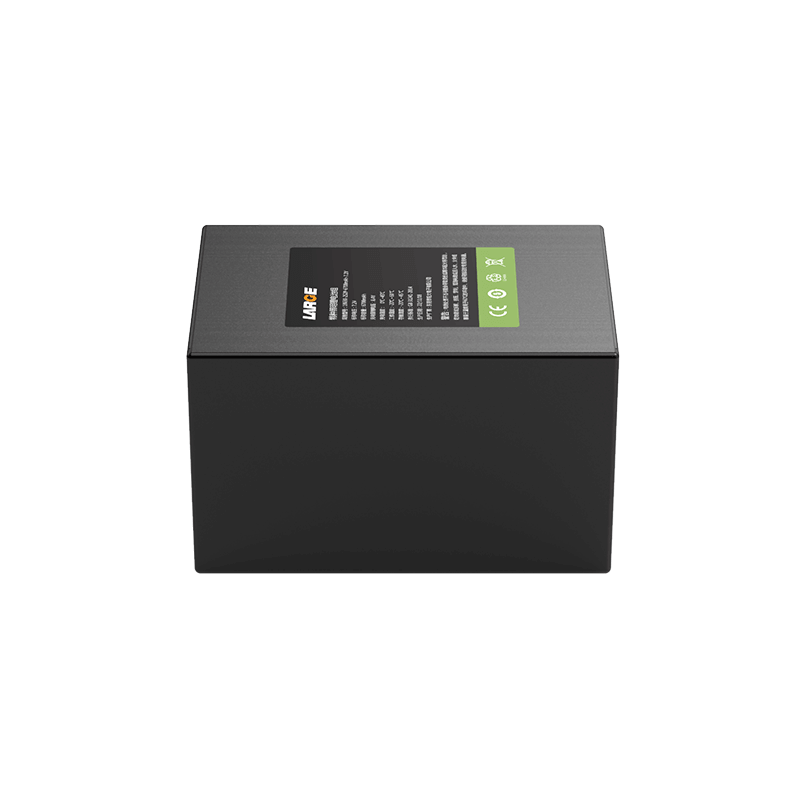

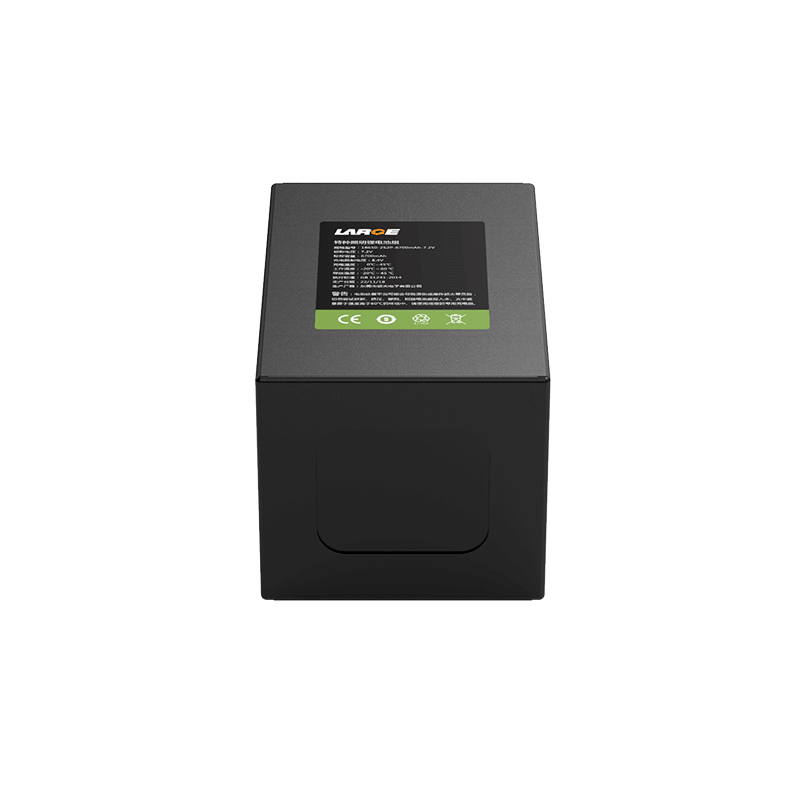

Custom Lithium ion Battery Pack
Product number: 33DZ039-01B
Battery model: 18650/3.6V/3350mAh
Battery specification: 18650-2S2P-6700mAh-7.2V
Nominal voltage: 7.2V
Nominal capacity: 6700mAh
Charging voltage: 8.4V
Charging current: ≤2000mA
Discharge current: 2A
Instantaneous discharge current: 2-5A
Discharge cut-off voltage: 5V
Internal resistance of finished product: ≤450mΩ
Battery weight: 200g
Product size: 45*50*74mm (L*W*H)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45℃
Battery case: PVC
Lithium-ion protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, explosion-proof design
Application: Special lighting, explosion-proof
Product Features
1.Cell: Using high energy cell, can be discharged at -20 degrees environment.
2.The battery pack has nice safety, good low temperature performance and long cycle life;
3.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept;
4.Explosion-proof safety T4 design
