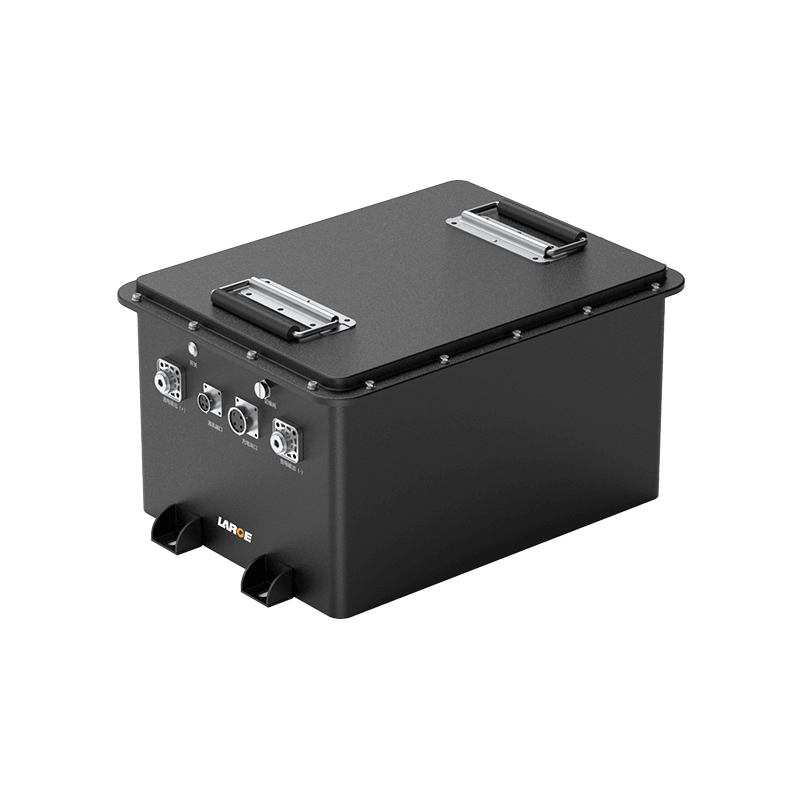

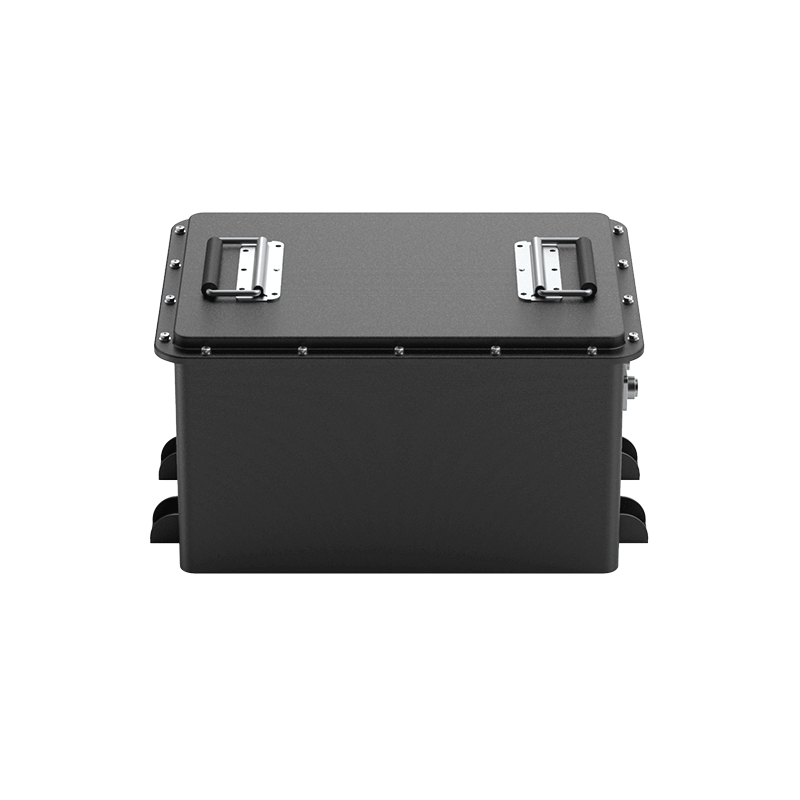

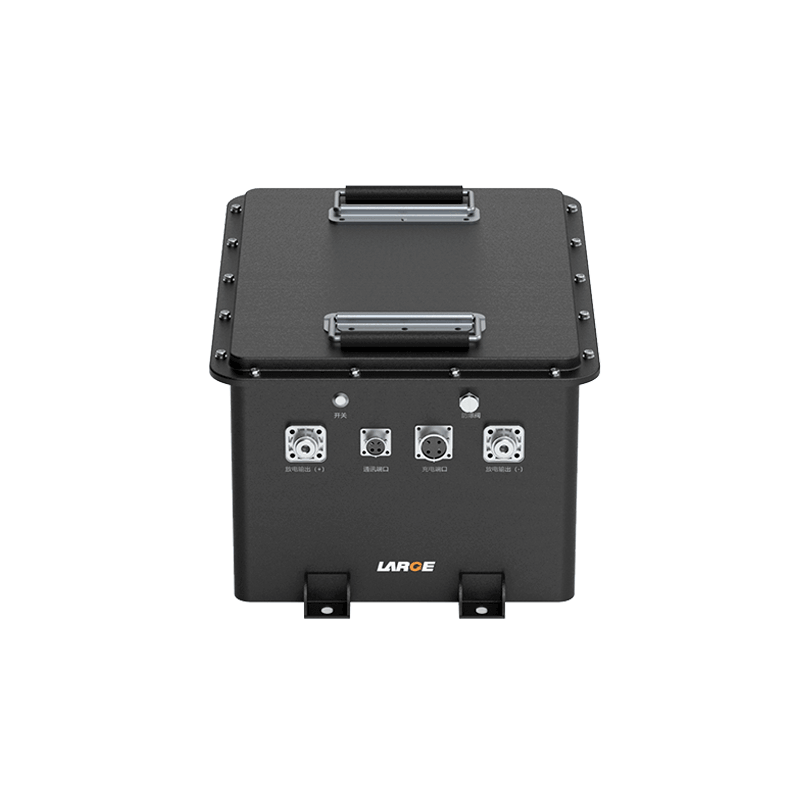

51.2V 105Ah Prismatic LiFePO4 Battery Pack
Specially Designed for Electric Golf Carts
- Product number: 00BQ48100-01
- Nominal voltage: 51.2V
- Nominal capacity: 105000mAh
- Battery size: 240*300*460mm
- Charging temperature: 0～55℃
- Discharging temperature: -20～55℃
- Application areas: golf carts, robots, UPS, energy storage
- Project number: 00BQ48100-01
- Cell model: LF105/105Ah/3.2V
- Battery specifications: LF105-16S1P/105Ah/51.2V
- Nominal voltage: 51.2V
- Nominal capacity: 105Ah
- Charging voltage: 58.4V
- Charging current: ≤50A
- Discharge current: 105A
- Instantaneous discharge current: 120A
- Discharge cut-off voltage: 40.0V
- Finished product internal resistance: ≤100mΩ
- Battery weight: ≤54kg
- Product size: 240*300*460mm
- Charging temperature: 0～55℃
- Discharge temperature: -20～55℃
- Storage temperature: -20～45℃
- Battery shell: sheet metal shell
- Intelligent lithium battery protection: power management (RS485, CAN protocol), short circuit protection, overcharge protection, over discharge protection, over current protection, over temperature protection, etc.
- Application areas: golf carts, robots, UPS, energy storage
