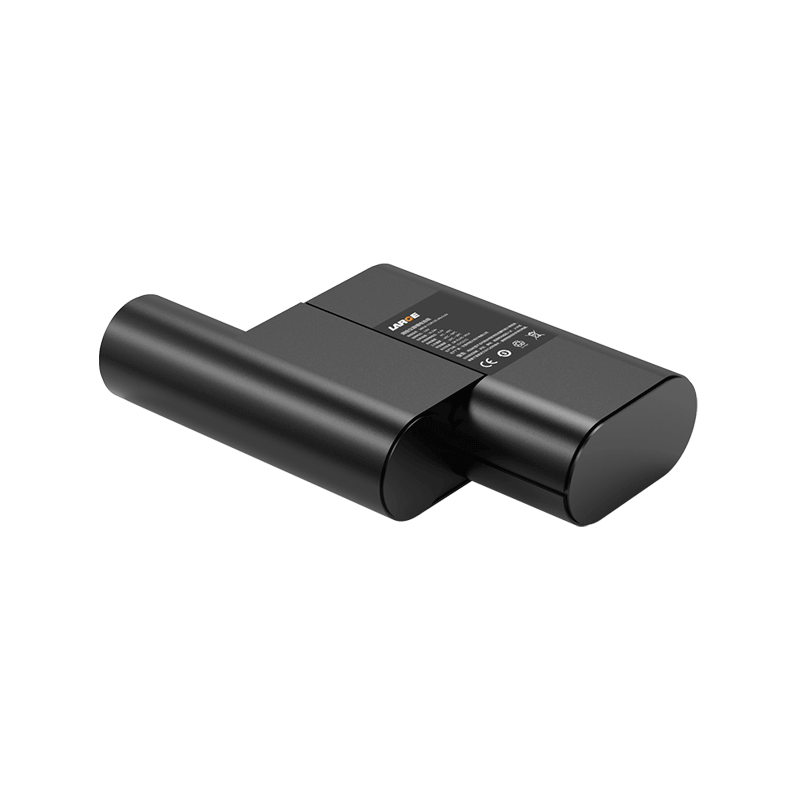

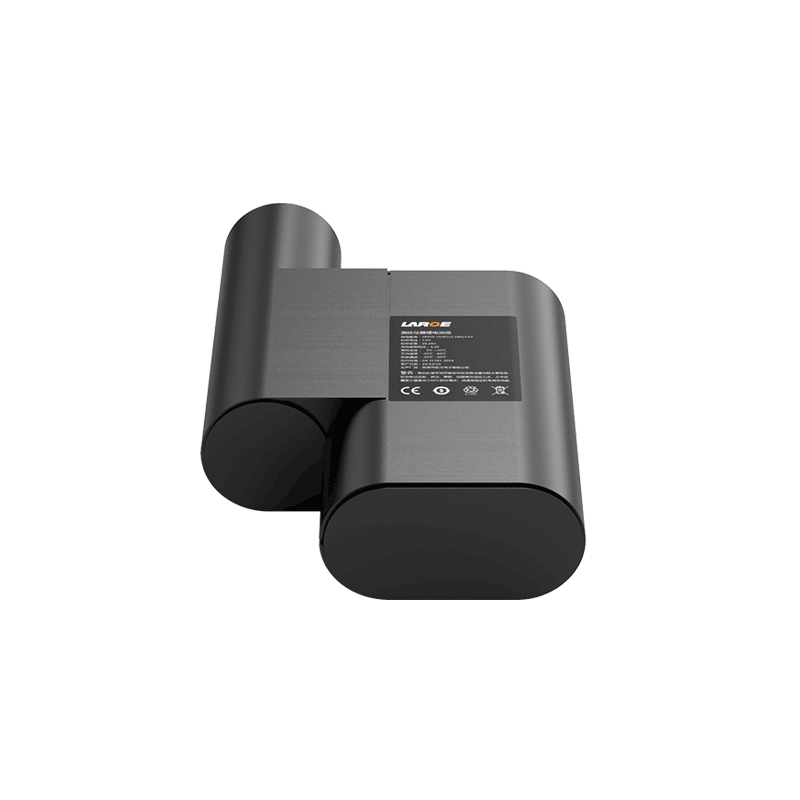

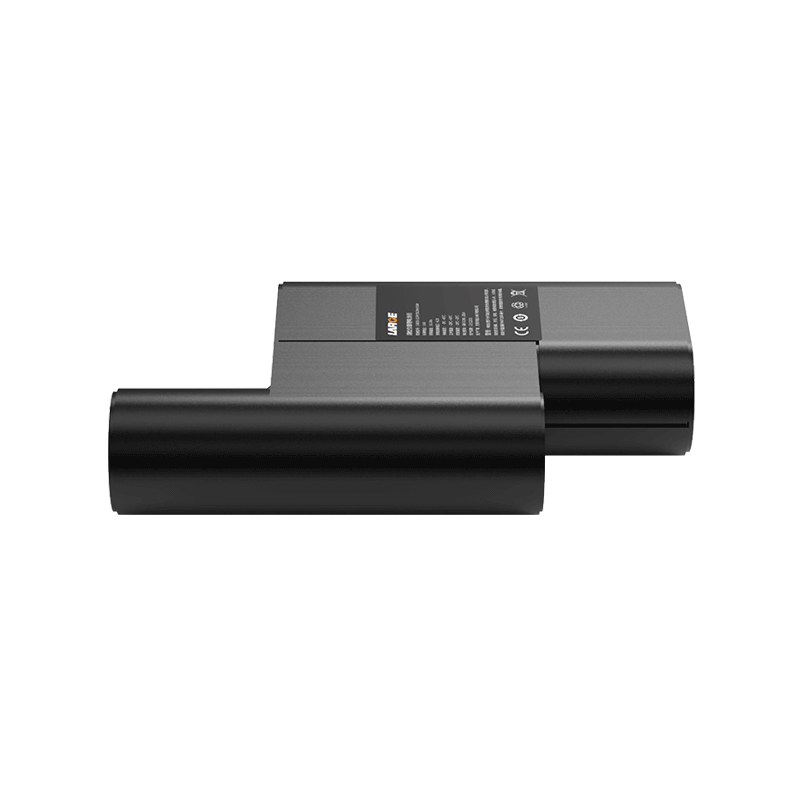

Custom Lithium ion Battery Pack
Project number: 05BQ673-45
Battery model: NCR18650/3350mAh/3.6V
Battery specification: 18650-1S3P/10.2Ah/3.6V
Nominal voltage: 3.6V
Nominal capacity: 10.2Ah
Charging current: ≤5.0A
Discharge current: 5.0A
Instantaneous discharge current: 8A
Discharge cut-off voltage: 2.8V
Finished internal resistance: ≤180mΩ
Battery weight: 50g
Product size: 20*55.71*92.0mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 20℃
Battery case: /
Intelligent lithium-ion protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: Surveying and mapping instruments
