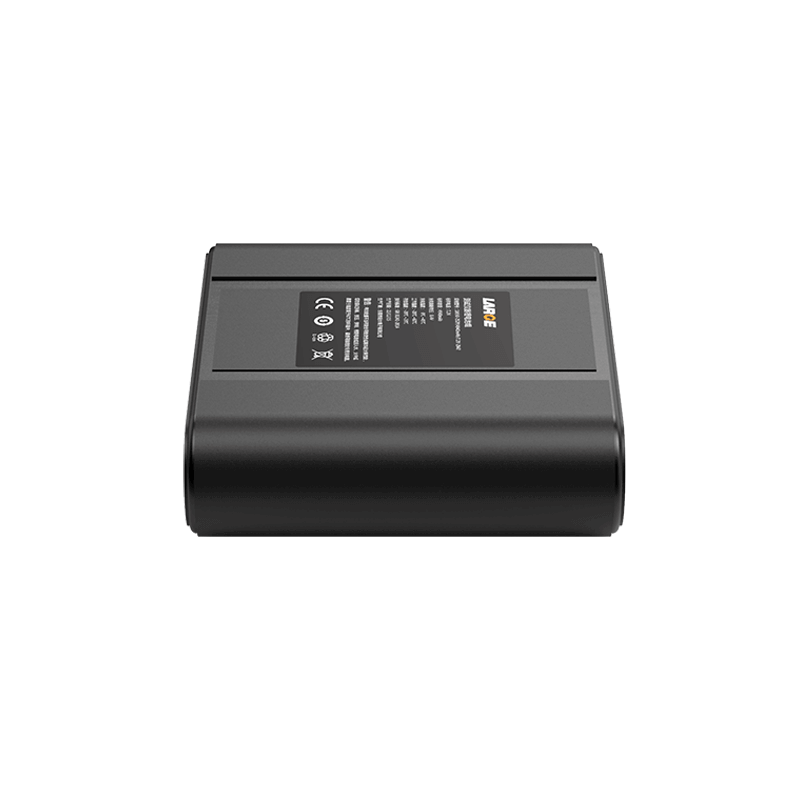

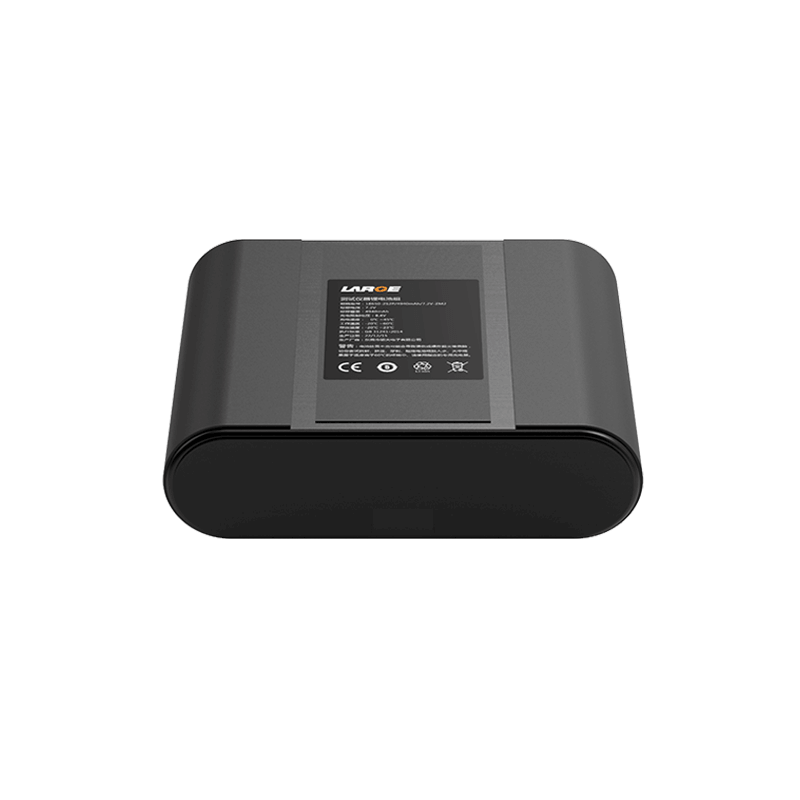

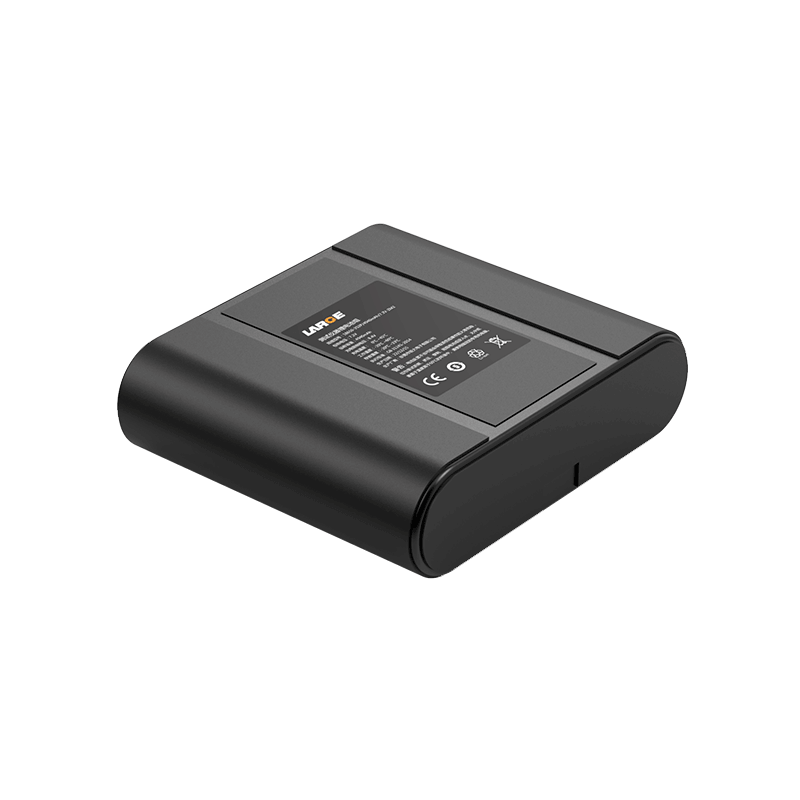

18650 7.2V 4940mAh Lithium-ion Battery Pack for Test Instrument

Customization | Free Battery Solution

Product Detail

Project number: 05BQ672-47

Battery model: UR18650/2490mAh/3.6V

Battery specification: 18650-2S2P/4940mAh/7.2V-ZM2

Nominal voltage: 7.2V

Nominal capacity: 4940mAh

Charging current: ≤2.48A

Discharge current: 3.40A

Instantaneous discharge current: 15A

Discharge cut-off voltage: 5.6V

Internal resistance of finished product: ≤100mΩ

Battery weight: 215g

Product size: 21*68*76mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Battery case: /

Intelligent lithium-ion protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Surveying and mapping industry
