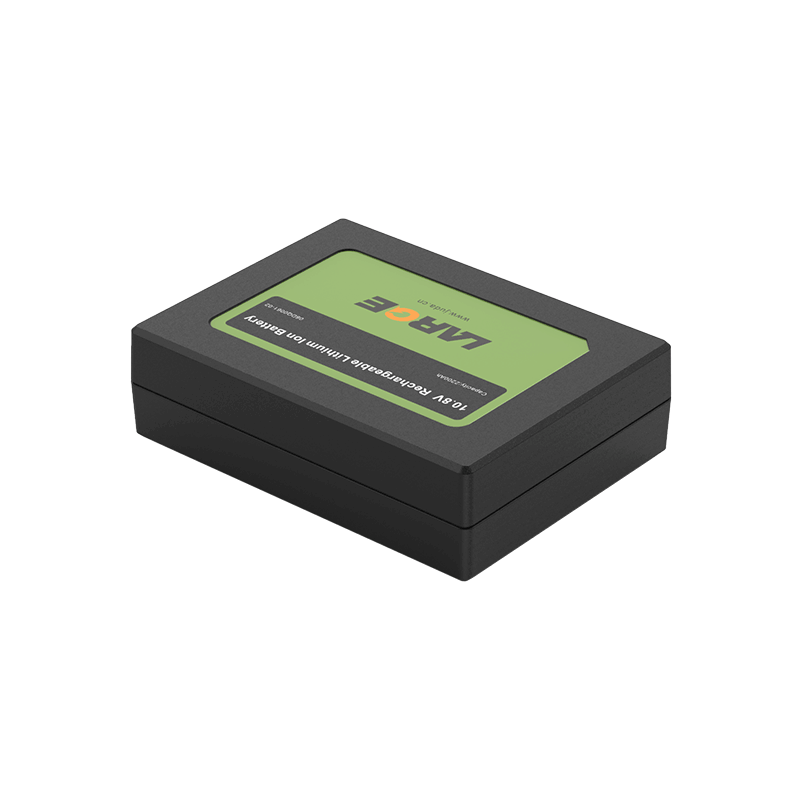

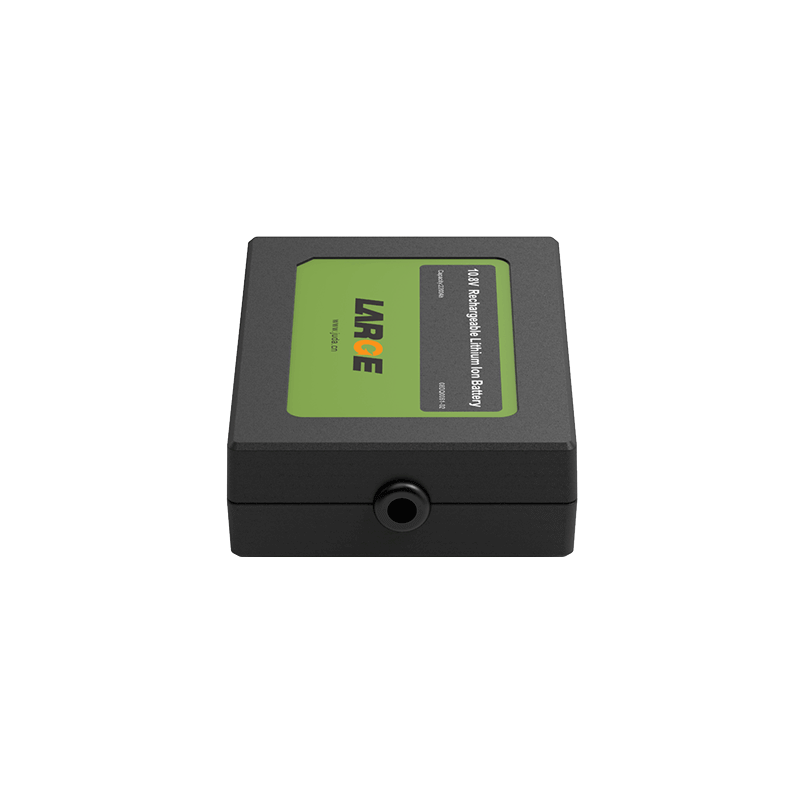

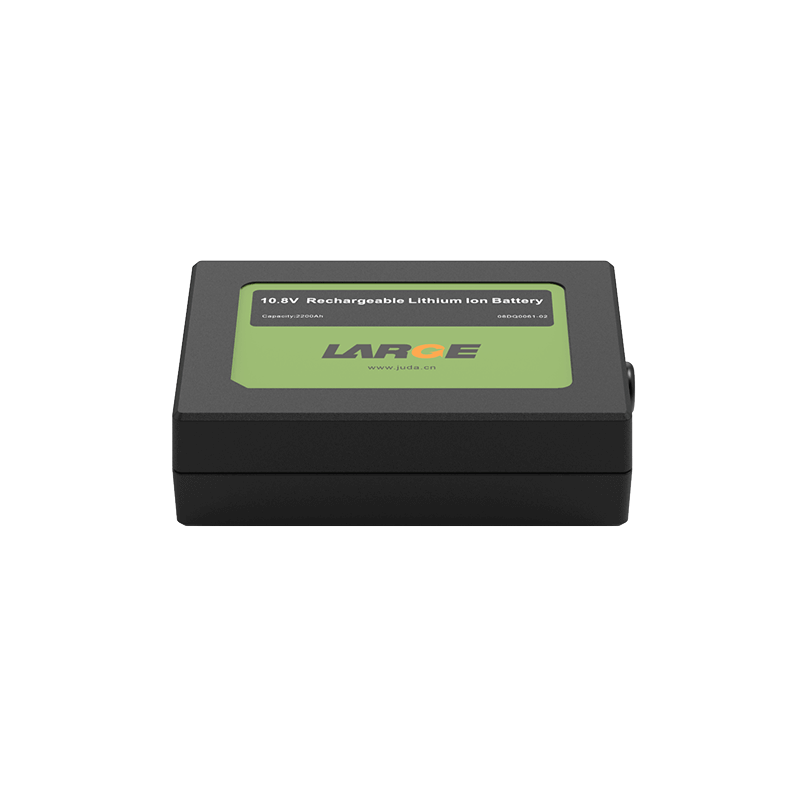

Custom Lithium ion Battery Pack
Project number: 08DQ0061-02
Battery model: 18650/2200mAh/3.6V
Battery specification: 18650-3S1P/2200mAh/10.8V
Nominal voltage: 10.8V
Nominal capacity: 2200mAh
Charging voltage: 12.6V
Charging current: ≤2.2A
Discharge current: 2.2A
Instant discharge current: 3.5A
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤300mΩ
Battery weight: 180g
Product size: 23*60*80mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery case: /
Intelligent lithium-ion protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: Instrumentation
